3. Based on the dimensions of the mounting plates, calculate and mark up the position of the

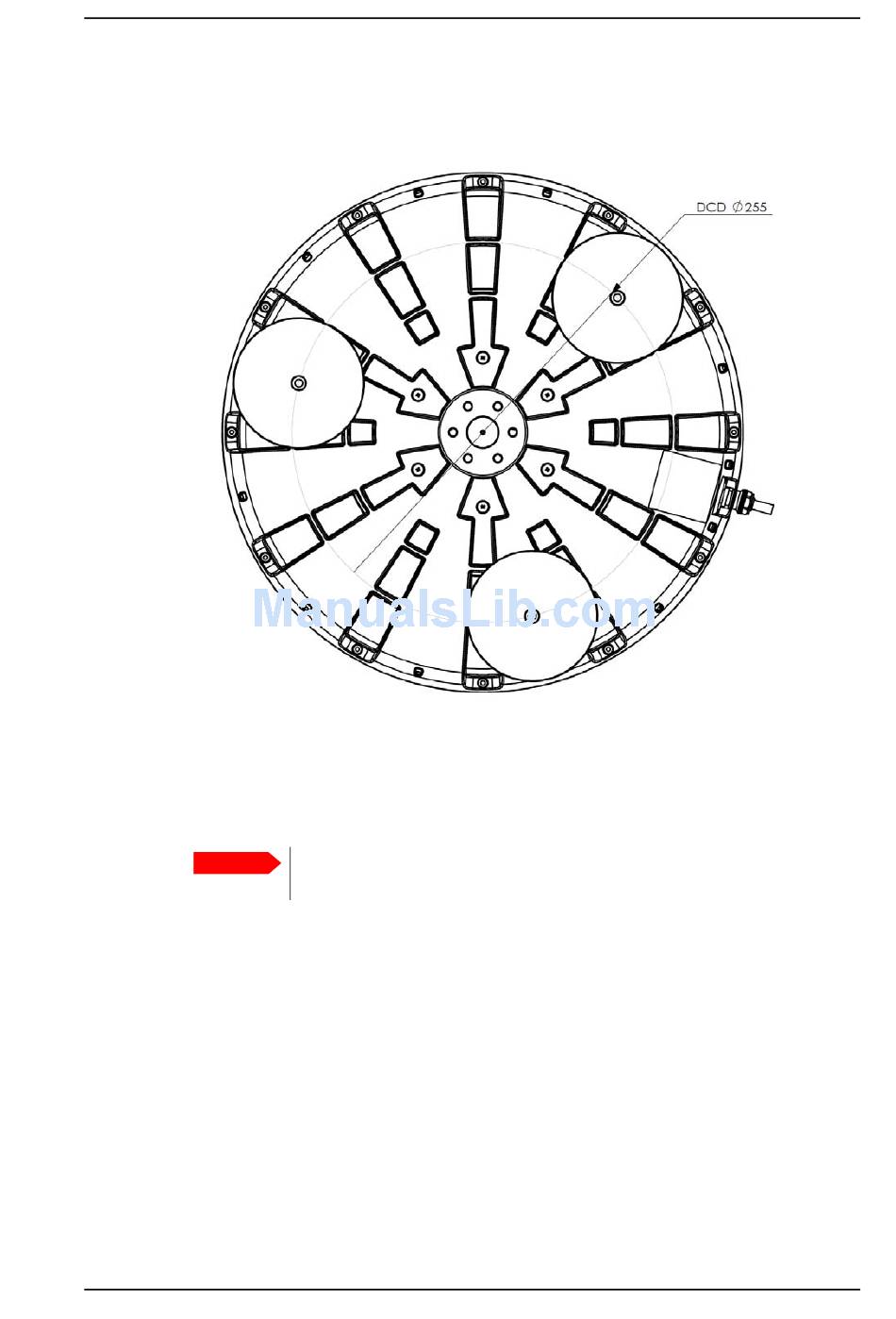

holes to be drilled in the roof of the car. The drawing below shows the Drill Circle Diameter
for the bushings in the antenna. The bushings are 120° apart.
4. Drill the 3 holes in the roof according to the previous step.
5. Mount the antenna with the mounting plates using 3 M5 screws and washers. If the
mounting plates are less than 10 mm thick, use spacers to obtain a minimum distance of 10
mm between the roof and the antenna bottom. This is to ensure that the ventilation holes
in the bottom of the antenna are not blocked.
Important
98-131306-B
The screws must never penetrate more than 10 mm into the bushings in the
antenna!
To install the antenna
Chapter 2: To install the system
9
