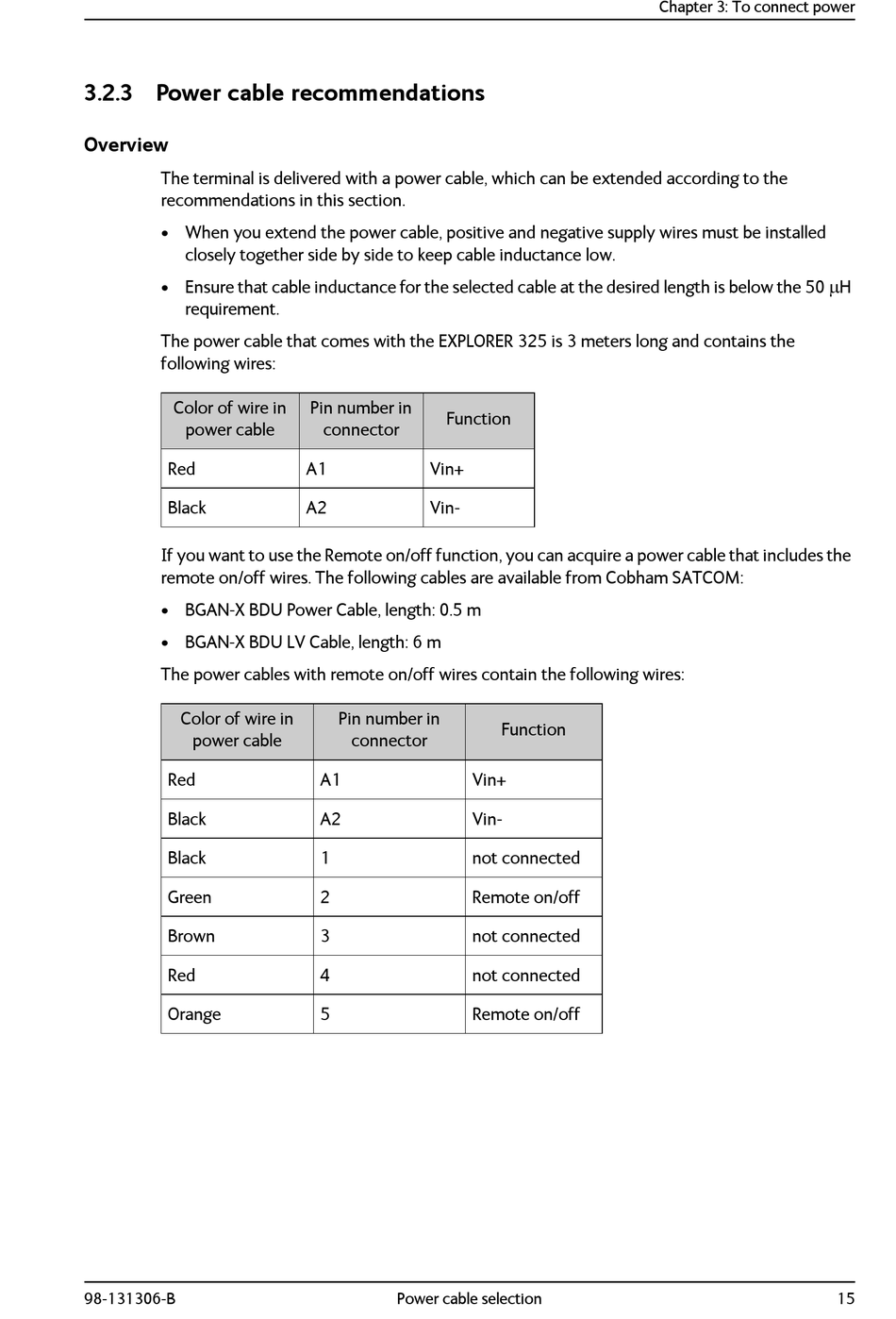

3.2.3 Power cable recommendations
Overview
The terminal is delivered with a power cable, which can be extended according to the
recommendations in this section.
• When you extend the power cable, positive and negative supply wires must be installed
closely together side by side to keep cable inductance low.
• Ensure that cable inductance for the selected cable at the desired length is below the 50 H
requirement.
The power cable that comes with the EXPLORER 325 is 3 meters long and contains the
following wires:
Color of wire in
power cable
Red
Black
If you want to use the Remote on/off function, you can acquire a power cable that includes the
remote on/off wires. The following cables are available from Cobham SATCOM:
• BGAN-X BDU Power Cable, length: 0.5 m
• BGAN-X BDU LV Cable, length: 6 m
The power cables with remote on/off wires contain the following wires:
Color of wire in
power cable
Red
Black
Black
Green
Brown
Red
Orange
98-131306-B
Pin number in
Function
connector
A1
Vin+
A2
Vin-
Pin number in
connector
A1
Vin+
A2
Vin-
1
not connected
2
Remote on/off
3
not connected
4
not connected
5
Remote on/off
Power cable selection
Chapter 3: To connect power
Function
15
