Installation, Operating, Servicing and
Conversion Instructions

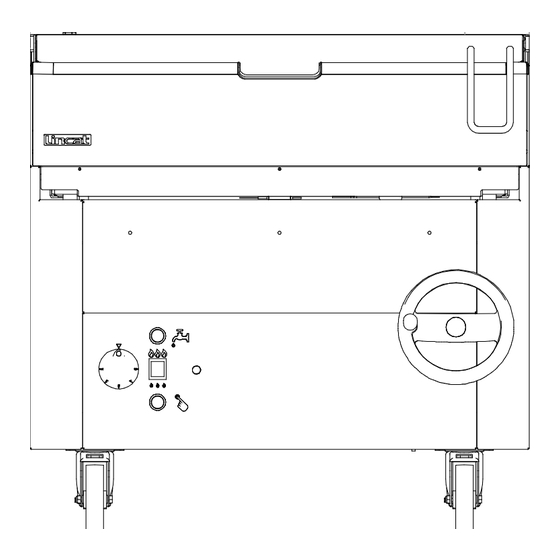

Opus 800 Gas Heated Tilting Bratt Pan
OG8801
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 582 ECN 3851
Page 1 of 17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lincat OG8801
Summary of Contents for Lincat OG8801
-
Page 1: Conversion Instructions
Installation, Operating, Servicing and Conversion Instructions Opus 800 Gas Heated Tilting Bratt Pan OG8801 Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 582 ECN 3851 Page 1 of 17... -
Page 2: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 3: Warnings And Precautions
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person. Ensure that the plug/socket is accessible at all times. Disconnect this appliance before servicing, maintenance or cleaning. TECHNICAL DATA Model OG8801/N OG8801/P Height (mm) Width (mm) Depth (mm) Height - Lid Up (mm) -
Page 4: Checklist Of Enclosures
CHECK LIST OF ENCLOSURES Warranty card Instructions manual INSTALLATION AND COMMISSIONING Site this appliance beneath an extraction canopy for the removal of combustion products. When making the gas connection, fit an isolating cock into the supply line close to the appliance for emergency shutdown or servicing purposes. - Page 5 Figure 1 This appliance must be earthed. If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire Live Means of isolation with at least 3mm contact separation in all poles must be incorporated into the fixed wiring of this appliance.
- Page 6 The appliance is type ‘A’. Rooms must be ventilated in compliance with existing technical regulations. The airflow must not be less than 2 cubic metres per hour per kW of installed capacity. If the appliance must be fitted near walls, partitions kitchen furniture etc we recommend they are made from non-inflammable material, otherwise they should be covered with a suitable heat-resistant material.
- Page 7 Inspection of the electrical supply Start the appliance following the instructions for use. Check the heating devices are working correctly. Raise and lower the tank, dependant on model. Ensure that the cut out operates when the tank is raised, and that power is restored when the tank is lowered into the working position again.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Only qualified or trained personnel should use this appliance. Do not use this appliance as a deep or shallow fryer. Warning: The main burner will only ignite when the tank is positioned correctly on the heating chamber. Warning: When griddling in the tank the addition of water or stock should only take place at a temperature and rate that avoids a severe reaction in the pan which could cause scolds and burns if done carelessly Figure 4... - Page 9 The Safety thermostat can be reset by pressing the button (g) after the appliance has cooled down The gas valve control knob displays the following: Off 1 to 5 where 1 approximates to 100°C and 5 approximates to 280°C Caution: Ensure that the container into which the food product is emptied is suitable to contain food at a high temperature.
-
Page 10: Cleaning
CLEANING Do not use a water jet or steam cleaner, and do not immerse this appliance. Always disconnect the appliance from the mains supply before cleaning or maintenance. Clean all panels with warm water and mild detergent do not use abrasive materials. Dry with a soft cloth. - Page 11 Gently pull out the bracket from appliance enough to be able to unplug the igniter lead ends from the igniters and secure them temporarily whilst replacing the igniters Reconnect igniter leads Replace bracket Check operation is restored Burners, Remove lower and upper control panel facia. Remove burner pipework Unscrew burner Remove...
-
Page 12: Conversion
Figure 3 Micro switch Remove the front lower control panel Disconnect the electrical connections of the device. Replace the component. Tank Remove right hand side panel and remove and replace components as necessary Water solenoid Remove the front lower control panel Remove and replace the component. -
Page 13: Fault Finding
FAULT FINDING Please refer to the Service Help Desk number on the final page of this manual. POTENTIAL TROUBLESHOOTING AND SOLUTIONS Even during correct use of the appliance, malfunctions and breakdowns may occur. Common situations are listed below, and checks an installer should make before contacting the technical support centre are indicated. -
Page 14: Spare Parts List
EGO ENERGY REGULATOR FAS574 COPPER (1BA) WASHER FAS658 4 X 30 ROLL HA112 SPOKED HANDWHEEL IG06 IGNITION LEAD IS582 OG8801 BRATT PAN USER INS JE71 BURNER JET G20 (NATURAL GAS) JE34 BURNER JET G31 (PROPANE GAS) KN502 OPUS-800 KNOB BRATT PAN LE14... - Page 15 770 is with lid up and flue top removed IS 582 ECN 3851 Page 15 of 17...
-
Page 16: Accessories
Type number • Serial number • Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. - Page 17 • Damage due to incorrect installation, modification, unauthorised service work or damage due to scale, food debris build-up, etc. The manufacturer disclaims any liability for incidental, or consequential damages. Attendance is based on reasonable access to the appliance to allow the authorised technician to carry out the warranty work.
