Installation, Operating and Servicing
Instructions

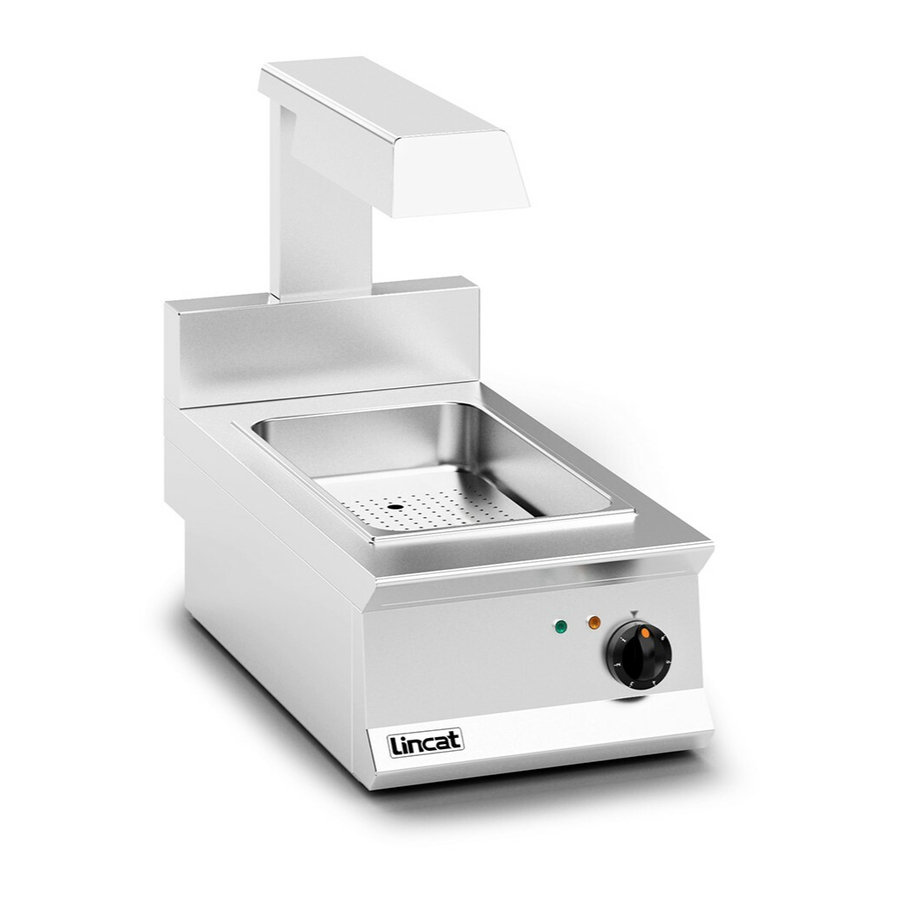

Opus 800 Electric Chip Scuttle
OE8109
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS597 ECN 3857
Page 1 of 9
Advertisement
Table of Contents
Related Manuals for Lincat OE8109
Summary of Contents for Lincat OE8109
- Page 1 Installation, Operating and Servicing Instructions Opus 800 Electric Chip Scuttle OE8109 Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS597 ECN 3857 Page 1 of 9...
-
Page 2: Table Of Contents
WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips. -
Page 3: Warnings And Precautions
Ensure that the plug/socket is accessible at all times. Strip plastic coating and clean the appliance before use. During operation parts may become hot - avoid accidental contact. Disconnect this appliance before servicing, maintenance or cleaning. TECHNICAL DATA OE8109 Height (mm) Width (mm) Depth (mm) Weight (kg) 37.0... -
Page 4: Installation And Commissioning
INSTALLATION AND COMMISSIONING This appliance must be earthed. An equipotential bonding terminal is provided to allow cross bonding with other equipment. If replacing the plug connect the terminals as follows: Green and Yellow wire Earth Blue wire Neutral N Brown wire Live Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57) -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS Only qualified or trained personnel should use this appliance. This appliance has an insulated tank to enhance performance. During initial operation there may be a noticeable odour from the insulation. This is normal and will diminish with use. Operation Turn on the power supply at the isolating switch. -
Page 6: Servicing, Maintenance And Component Replacement
Your Lincat product has a manufacturer’s warranty. This requires you to maintain and care for your product and follow maintenance instructions. If you fail to maintain your unit or damage components Lincat may charge you for a warranty repair. Please check the website for terms and conditions. -
Page 7: Fault Finding
The lamp is of the sprung loaded, push-in type. Remove the bulb by pulling against the spring loaded holder A and lowering out. The process may be eased by using the thumb to push the ceramic part of the opposite holder back away from the bulb B. -
Page 8: Spare Parts List
SPARE PARTS LIST Part Number Description EL136 Tank element EN10 Energy regulator KN511 Control knob LA210 500W lamp LA211 Lamp holder LE38 NE46 Green neon NE47 Amber neon TA71 Gastronorm bowl ACCESSORIES Part Number Description OA8921 Floor stand OA8971 Pedestal IS597 ECN 3857 Page 8 of 9... -
Page 9: Service Information And Guarantee
Type number All available on serial plate Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.
