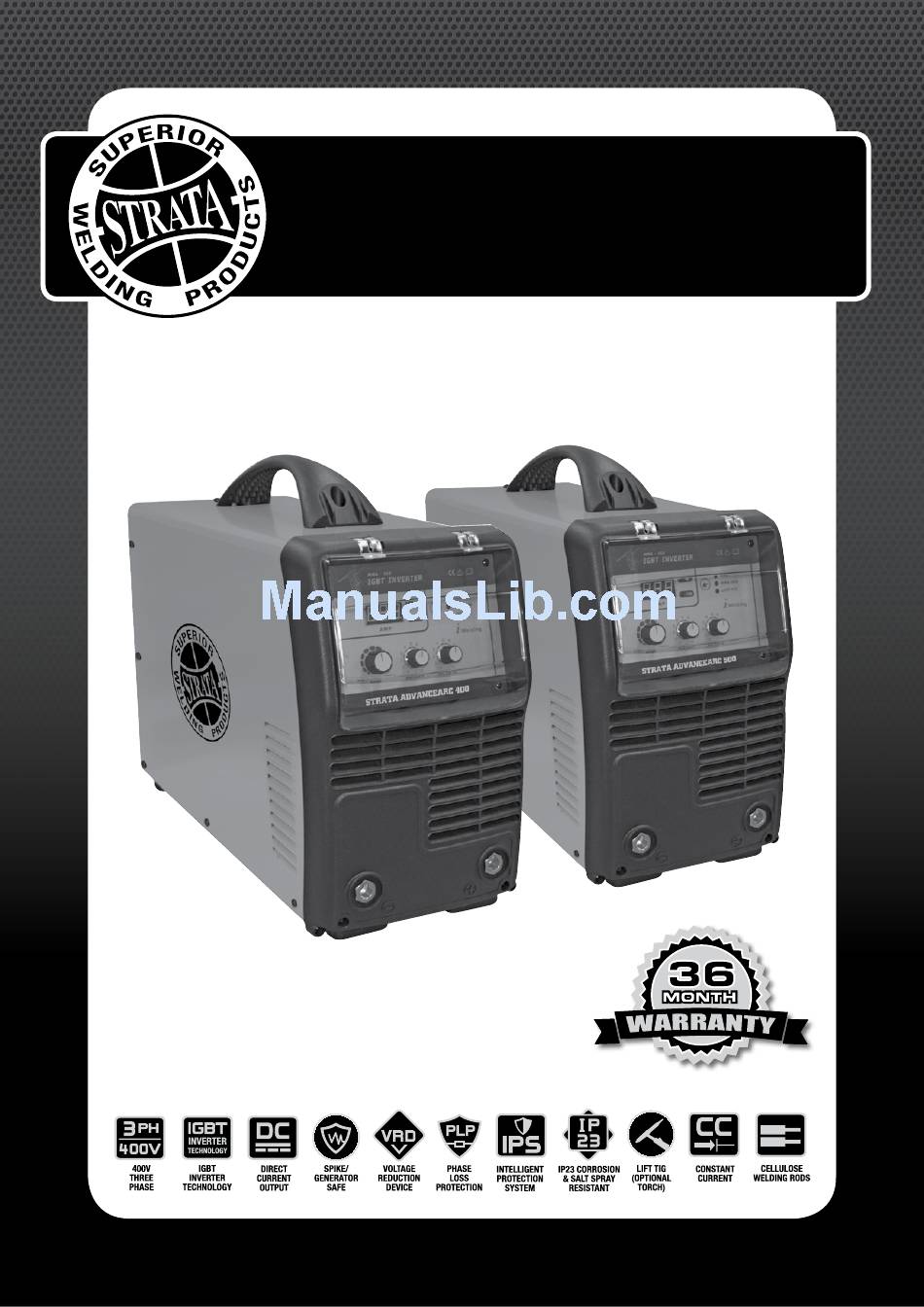

- Page 1 ADVANCEARC 400/500 MMA (STICK) WELDERS OPERATING INSTRUCTIONS www.strata.co.nz...
- Page 2 ADVANCEARC 400 • ADVANCEARC 500 Congratulations on your new Strata product! The Strata range from Euroquip uses latest technology design and engineering to produce welding products that combine market leading value and features with durability. Designed for discerning operators who seek professional results and product quality without the price tag of a full professional setup.
-
Page 3: Table Of Contents

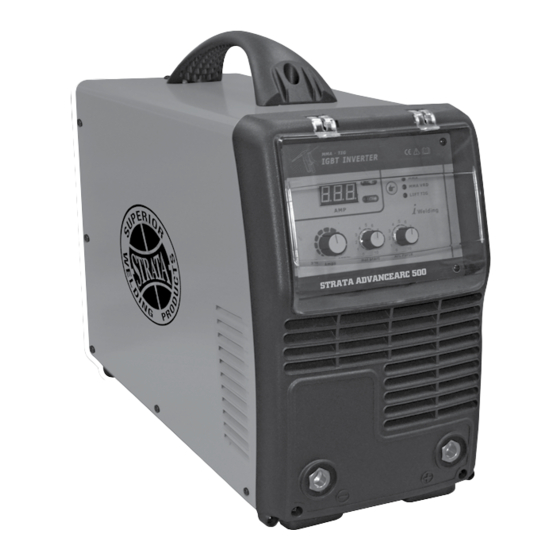

ADVANCEARC 400 • ADVANCEARC 500 Contents Know Your Machine............5 Quick Start Guide..............6 Effects of MMA Welding Various Metals......7 Available Parts & Accessories...........8 Other Knowledge & Resources..........8 Wiring Diagram..............9 Care & Maintenance............10 Electrodes................10 Safety................11 Warranty.................19 www.strata.co.nz... - Page 4 ADVANCEARC 400 • ADVANCEARC 500 MMA (STICK) WELDERS • ADVANCEARC 400 • ADVANCEARC 500 • The Advance Series 3 Phase MMA (Stick) Welders include the latest IGBT technology & high tech features for industrial use. IGBT means increased reliability and performance for demanding industrial conditions.
-
Page 5: Know Your Machine
ADVANCEARC 400 • ADVANCEARC 500 Know Your Machine *Denotes more detailed explanation of function to follow. 1. Welding current control knob. 2. Digital current display meter. 3. Power Indicator. Lights when input power connected and machine switched on. 4. Error/ Overload Indicator* 5. Welding output mode button. Sets power source in MMA, MMA VRD* or Lift TIG mode. 6. MMA mode indicator 7. MMA VRD mode indicator 8. Lift TIG mode indicator... -
Page 6: Quick Start Guide
1.2 Insert an electrode into the electrode holder and connect the electrode holder and work lead to the positive welding power output socket (11). - The ADVANCEARC 400 is designed to operate on a 3 Phase 32A 400V AC power supply. Note: This polarity connection configuration is valid for most - The ADVANCEARC 500 is designed to operate on a GP (General Purpose) MMA electrodes. There are variances to... -
Page 7: Effects Of Mma Welding Various Metals
ADVANCEARC 400 • ADVANCEARC 500 2.5 Select the required output current using the 2.3 Open gas cylinder valve and adjust regulator, current control knob (1). You are now ready to flow should be between 5-10 l/min depending weld! on application. Re-check regulator flow pressure with torch valve open as static gas flow setting Please note, the AdvanceArc 400/500 is a DC (Direct may drop once gas is flowing. -
Page 8: Available Parts & Accessories
GTK4000 1000A Gouging Torch ETCPH6825 Overcord 2.5mm Electrodes (350mm) G048DC Gouging Carbons - 4.8mm ETCPH6832 Overcord 3.2mm Electrodes (350mm) G080DC Gouging Carbons - 8.0mm These accessories listed are available from your Strata Supplier. Refer to the Strata Catalogue, your Strata Supplier or look online at www.strata.co.nz for other accessories and consumables available. Other Knowledge & Resources Please refer to Euroquip website www.euroquip.co.nz/ Downloads.html for knowledgebase articles & operation videos. www.strata.co.nz... -
Page 9: Wiring Diagram
ADVANCEARC 400 • ADVANCEARC 500 Wiring Diagram www.strata.co.nz... -
Page 10: Care & Maintenance
ADVANCEARC 400 • ADVANCEARC 500 Care & Maintenance considerable danger for the user may result. Use only genuine replacement parts. Do not use modified or non-genuine parts. Keep your Welding Machine in Top Condition Storing the Welder The ADVANCEARC 400/500 does not require any... -
Page 11: Safety
ADVANCEARC 400 • ADVANCEARC 500 Safety General Safety Warnings 1. Maintain labels and nameplates on the welder. These carry important information. If unreadable or miss- Store and Retain this Manual ing, contact Euroquip for a replacement. Retain this manual for the safety warnings and pre- 2. Avoid unintentional starting. Make sure the welder... - Page 12 ADVANCEARC 400 • ADVANCEARC 500 WARNING! WARNING! If this unit falls while plugged in, severe injury, Only use safety equipment that has been ap- electric shock, or fire may result. proved by an appropriate standards agency. Unapproved safety equipment may not provide 10. Transportation Methods Lift unit with the handles adequate protection. Eye and breathing protec-...
- Page 13 ADVANCEARC 400 • ADVANCEARC 500 Arc Rays can Burn Eyes and Skin 4. If working on a metal wall, ceiling, etc., prevent ignition of combustibles on the other side by moving the combustibles to a safe location. If DANGER! relocation of combustibles is not possible, desig- Arc rays from the welding process produce...
- Page 14 ADVANCEARC 400 • ADVANCEARC 500 4. Disconnect input power before installing or ser- ground or the work surface. Do not touch hold- vicing this equipment. Lock input power, discon- ers connected to two welding machines at the nect switch open, or remove line fuses so power same time or touch other people with the holder cannot be turned on accidentally.
- Page 15 ADVANCEARC 400 • ADVANCEARC 500 12. Use only well-maintained equipment. Repair or Fire & Explosive Risks replace damaged parts as soon as practical. WARNING! 13. In confined spaces or damp locations, do not use Sparks and spatter fly off from the welding arc. a welder with AC output unless equipped with a The flying sparks and hot metal, weld spatter, voltage reducer.
- Page 16 ADVANCEARC 400 • ADVANCEARC 500 Cylinders WARNING! Gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylinders are normally part of the welding process, be sure to treat them carefully. 1. Protect compressed gas cylinders from exces- sive heat, mechanical shocks, and arcs.
- Page 17 ADVANCEARC 400 • ADVANCEARC 500 www.strata.co.nz...
- Page 18 ADVANCEARC 400 • ADVANCEARC 500 www.strata.co.nz...
-
Page 19: Warranty
Registered warranty period for the ADVANCEARC 400/500: The decision that an issue with a product qualifies as a warranty claim is made at the sole jurisdiction of Euroquip. Commercial Use: 36 Months... - Page 20 Congratulations on your new STRATA product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This product is backed by our extensive warranty and world-wide service network. To locate your nearest distributor or service agency visit www.
