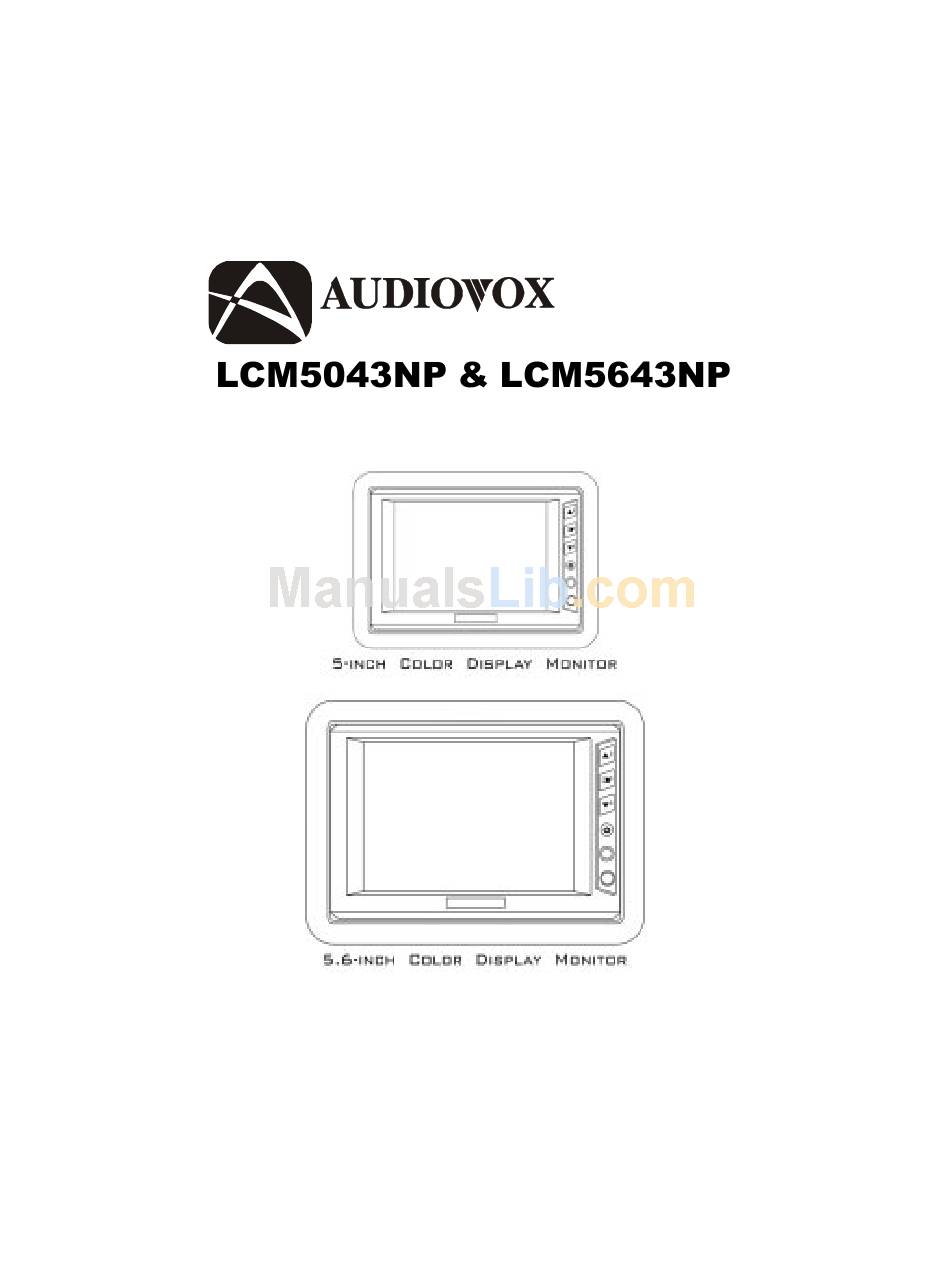

- Page 1 ® ELECT RONICS CORP . Remote Controlled Color Display Monitor with Headphone Jack Installation and Owner's Manual...
-
Page 2: Explanation Of Graphic Symbols
EXPLANATION OF GRAPHIC SYMBOLS RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with the arrowhead within a triangle is in- tended to alert tell the user that parts inside the product are capable of producing an electric shock . -
Page 3: System Overview
SYSTEM OVERVIEW The LCM5043NP is comprised of a 5" Thin Film Transistor (TFT) Liq- uid Crystal Display ( LCD) Monitor. The LCM5643NP is comprised of a 5.6" Thin Film Transistor (TFT) Liquid Crystal Display ( LCD) Monitor. The Monitor for both of these systems have a 4:3 Aspect Ratio display that allows the user to select between two video sources (Not Sup- plied). -
Page 4: Materials List
MATERIALS LIST System Monitor (LCM5043NP=136C2187) or (LCM5643NP=136C2186) (1pc.) Remote Control Unit (136B2156) with Lithium Battery, 3V,CR 2025 Interconnect Box (136B2183) Monitor Cable, 8' (112B3152) Headrest Mounting Tray (LCM5043NP=102C3740) or (LCM5643NP=102C3742) Trim Ring for Mounting Tray (LCM5043NP=102B3741) or (LCM5643NP=102B3743) Power Cable, 2.46' (112B3127) Removal Tool (108B3632) (1pc.) -
Page 5: Vehicle Preparation
VEHICLE PREPARATION 1) Decide on the system configuration and the options that will be in- stalled (i.e. what components, VCP, DVD, TV Tuner, Video Game, Monitor, FM Modulator, etc.). 2) Read the manuals and get familiar with the electrical requirements and connections. -
Page 6: Installation
10) After verifying the proper operation of the system, proceed to mount each component. 11) The mounting method, and the location will vary from vehicle to vehicle, so this manual will only focus for the installation of the 12) The best location for the system components is: a) Monitor: Headrest or bracket (optional) mounted onto a flat surface. - Page 7 2) Slide monitor onto Surface Mount Bracket and then tighten the fasten wheel. Monitor Fastener Wheel Surface Mount Fastener Mounting Bracket 3) Adjust viewing angle of monitor by tightening the fastener at the side. 4) When the system components are mounted, test the system to verify that it is functioning correctly.
- Page 8 Headrest Mounting: 1) Remove the headrest from the vehicle for easiest installation. 2) Lay headrest on a flat surface. 3) Center trim collar on headrest as shown. NOTE: Depending on the angle of the headrest the Trim Ring and housing may be mounted upside down.
- Page 9 6) Using the utility knife, cut the headrest material along the “X” lines. Do not cut the material along the other lines at this time. 7) This will leave you with an “X” cut as shown. 8) Pull the flaps up and cut the foam beneath the material to the proper depth.
- Page 10 10) Lay the flaps of headrest mate- rial down into the recess and in- sert the Mounting Tray into the recess. Check for fit. If it does not fit properly, you may need to remove some more foam. NOTE: The Mounting Tray will need to be secured to the headrest, either by using tie straps, screws, ect..
-
Page 11: Electrical Connection
ELECTRICAL CONNECTION (Wiring Diagram) AV Output Video Source Input (1&2) Not Used... - Page 12 Monitor Removal: The following procedure is to remove the Monitor from the Mounting Tray using the supplied Removal Tool. NOTE: Use care when per- forming this procedure not to scratch any exposed surfaces with the edges of the Removal Tool. Masking tape applied to the two tips or legs of the Removal Tool will help prevent scratching.
-
Page 13: Controls And Indicators
CONTROLS AND INDICATORS OPERATION 1. Press power On/Off button to the On position. The LED power indicator will light red. 2. Press the Picture Select button to adjust the picture display characteristics. The adjustments will be shown on the On Screen Display in the following sequence: Contrast, Brightness, Color, and TINT. -
Page 14: Maintenance
MAINTENANCE To avoid electrical shock, do not open the enclosure. High voltage is present. No user serviceable parts inside the enclosure. Do not use any chemical solvent, cleaning agent or corrosive de- tergent to clean away dirt on the surface of the screen. To clean off dirt or fingerprint, we recommend the use of a soft damp lens clean- ing cloth. -
Page 15: Remote Controller
REMOTE CONTROLLER NOTE: The Remote Controller supplied with this system is a stan- dard remote control, which is used to operate other systems. The Remote Controller is not a universal remote and will only perform the functions described herein. Only the Keys highlighted on the Remote Controller image bellow are used to operate this system. - Page 16 MENU FUNCTION KEY: The MENU Key is used to navigate between the Color, Brightness and Tint adjustment modes. When the MENU Key is pressed an On Screen Display(OSD) will appear as shown bellow. Press release and tap the MENU Key until the desired adjustment mode is selected.
- Page 17 VIDEO SOURCE MODE KEY: To switch between Video Input Sources (AV1 and AV2) press and release the MODE Key. NOTE: For the LCM5643NP - Select either *NTSC or PAL, press the p or q Keys ( CH/DISK/SET VOLUME CONTROL KEY: To increase or decrease the Volume, press and hold the VOL p or q Key until the desired volume is reached.
- Page 18 Replacement of Remote Controller Battery: 1. Use a small coin to pry open battery holder from compartment. 2. Remove old battery and put in a new one with positive sign “ + “ facing upward. 3. Push compartment into position. Precaution: 1.
-
Page 19: Specifications
SPECIFICATIONS LCM5043NP: LCD Panel Size (Diagonal) ... 5" LCD Panel Format ... 960 x 234 dots LCD Panel Resolution ... 224,640 pixels LCD Backlight Life ... 10,000 hrs Image Aspect Ratio ... 4:3 Video Input Signal ... NTSC Composite Video Power Source ... - Page 20 36 MONTH LIMITED WARRANTY Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
