Audiovox LCM500NP Installation And Operation Manual

5 inch monitor with 2 video input capability

Advertisement

Quick Links

®
ELECTRONICS CORP .
LCM500NP 5 Inch Monitor
with
2 Video Input Capability
Installation and Operation Manual

Advertisement

Table of Contents
loading

Summary of Contents for Audiovox LCM500NP

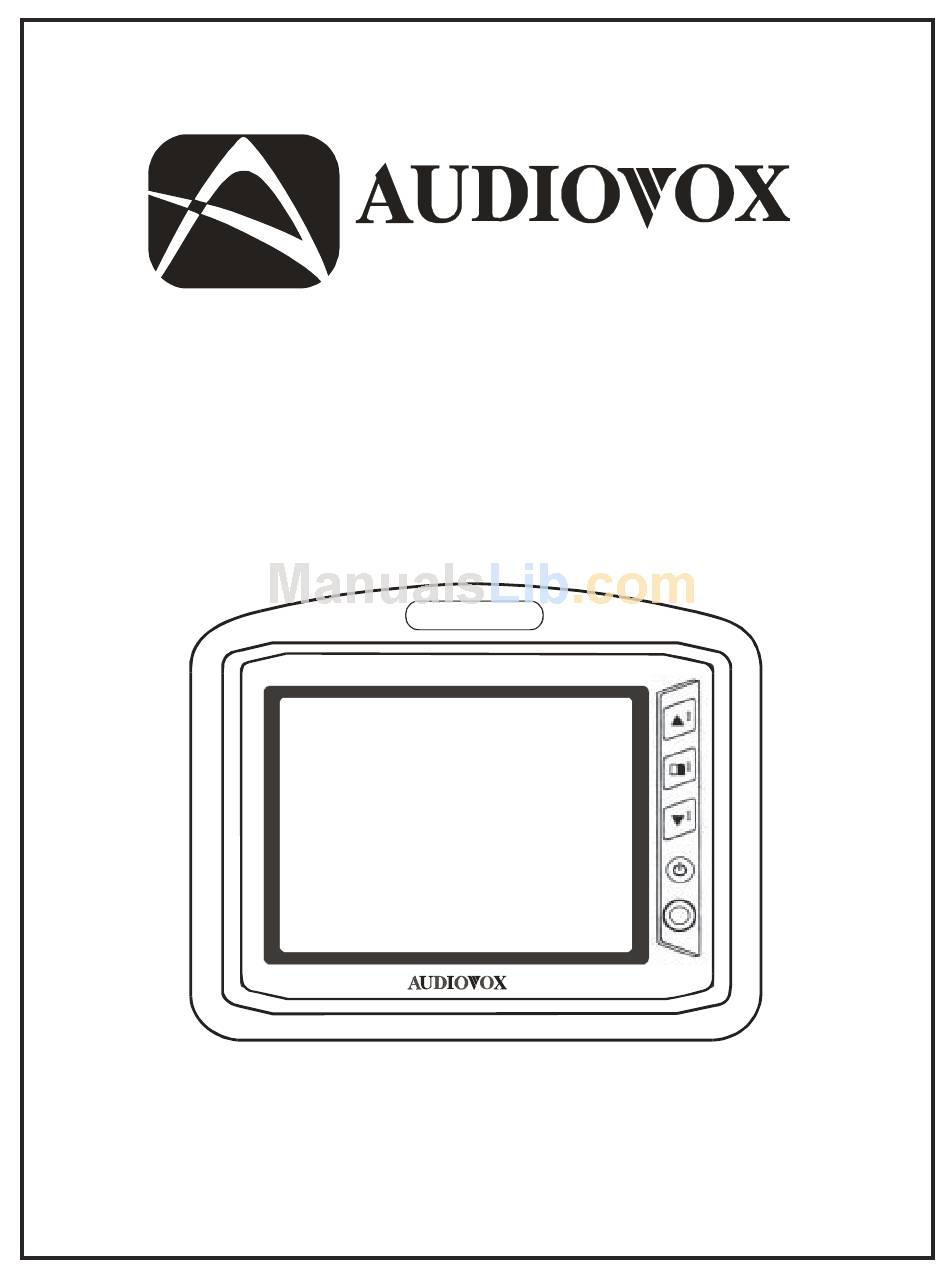

  • Page 1 ® ELECTRONICS CORP . LCM500NP 5 Inch Monitor with 2 Video Input Capability Installation and Operation Manual...
  • Page 2: Important Notice

    It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver's seat, or that is visible directly or indirectly, to the driver while op- erating the vehicle.
  • Page 3: Optional Audio Connection

    Removal Tool LCM500NP SYSTEM OVERVIEW The LCM500NP is comprised of a 5" Thin Film Transistor (TFT) Liquid Crystal Display ( LCD) monitor. The monitor display is a widescreen display (16:9 Aspect Ratio ) that allows the user to select from two video sources (Not Supplied). The housing has a built-in location for the installation of an optional infrared audio transmitter ( Audiovox IRT 456, IRT 457) for use with optional two channel wireless headphones.
  • Page 4: Vehicle Preparation

    11) The mounting method, and the location will vary from vehicle to vehicle, so this manual will only focus for the installation of the LCM500NP Monitor in the supplied configuration. 12) The best location for the LCM500NP System components are: a) Monitor : Headrest b) Interconnection Box: Under either seat where monitors are located.
  • Page 5 Tools and Materials Required: Utility knife or box cutter with sharp blade Sharpie™ marker or similar Tie Wraps Remove the headrest from the vehicle for easiest installation. Lay headrest on a flat surface Center trim collar on headrest as shown. NOTE: Depending on the angle of the headrest the trim ring and housing may be mounted upside down.
  • Page 6 Using the utility knife, cut the headrest material along the “X” lines. Do not cut the material along the other lines at this time. This will leave you with an “X” cut as shown. Pull the flaps up and cut the foam beneath the material to the proper depth.
  • Page 7 Lay the flaps of headrest material down into the recess and insert the clamshell into the recess. Check for fit. If it does not fit properly, you may need to remove some more foam. NOTE: The clamshell will need to be secured to the headrest, either by using tie straps, screws, ect..
  • Page 8 The supplied Release Key is for removing monitor from housing. Refer to the drawing below. MONITOR SURFACE MOUNTING: 1. Slide the monitor onto the mount S2 and tighten using the fastener. 2. Firmly attach surface mount to a flat surface and adjust the viewing angle of the monitor by loosening the fastener on the side.
  • Page 9 LCM500NP SYSTEM WIRING DIAGRAM 1.) Make sure the LCM500NP has been installed properly, as described in the procedures as stated on pages 2, 3, and 5. 2.) Plug the 15 pin connector into the jack labelled -15 pin to MONITOR on the AVX-6865 Interconnection Box.
  • Page 10 Controls and Indicators Monitor Panel Controls...
  • Page 11 Remote Control Unit Remote Control Unit Controls...
  • Page 12 Remote Control Unit Controls Continued Press the to the desired setting Press the to the desired setting Press the MODE key to select the desired video source input (Input 1 or Input 2) -10-...
  • Page 13: Display Mode

    Display Mode 1. Press MENU to get the On Screen Display (OSD). 2. Select FORMAT. 3. Press the or the to switch the screen aspect ratio. FULL: ZOOM: CINEMA: NORMAL: 16:9 picture is fully displayed. Picture is stretched vertically and horizontally. Picture is displayed with uniform horizontal enlargement.
  • Page 14 OPERATING INSTRUCTIONS 1. POWER ON/OFF/MODE Press the POWER button to turn power on. Pressing the POWER button again momentarily will change video inputs. Press the for NTSC input. Press the for PAL input. Press and hold the POWER button for three seconds to turn power off. Scroll Up Button This button is used to increase selected menu items (Brightness, Contrast, Color, Tint, [NTSC] Only) This button will also switch selected items (DIM, RESET, FORMAT).
  • Page 15: Monitor Specifications

    MONITOR SPECIFICATIONS 1. Type : TFT Active Matrix LCD 2. Display Screen Size : 4.3 x 2.5 inches (109.2 x 63.5) (W x H) 3. Resolution: 1200 (W) x 234 (H) 4. Pixels: 280,800 5. Back Light : Cold Cathode Fluorescent Lamp 6.
  • Page 16 Visit O u r W eb site A t P ro duc t Inform a tio n, P h otos , FA Q ’s O w ner ’s M a nua ls © Copyright 2001 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-6244...
