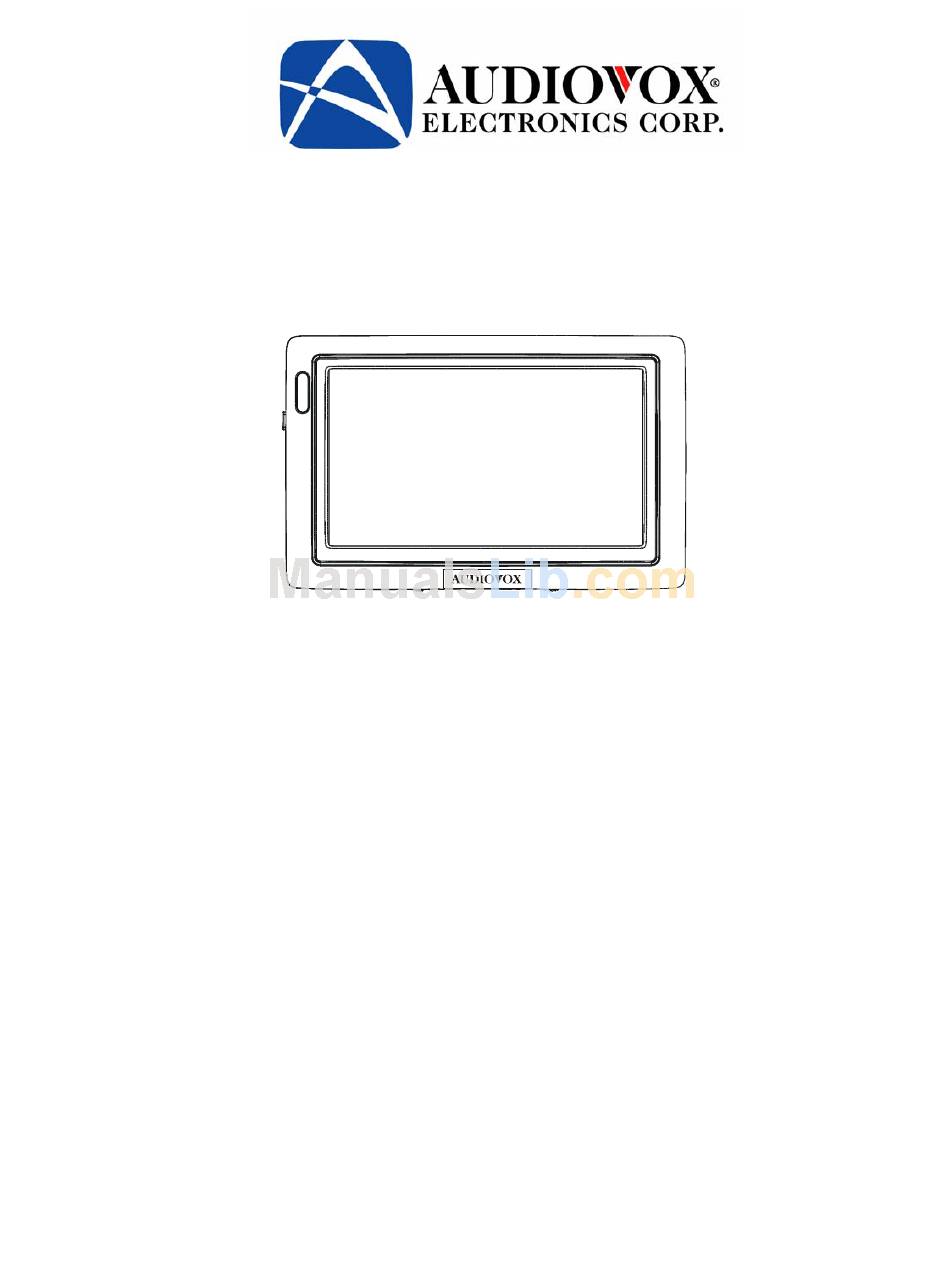

- Page 1 4.5” Wide Screen LCD Monitor Model: LCM45NB Owner’s Manual Features: • 4.5” Widescreen (16:9) TFT Color LCD Display • Rearview Camera Input • Interior Camera Input • Audiovox Navigation Input • NTSC /PAL Camera Compatible...
- Page 2 Your first priority while driving should always be the safe operation of your vehicle. Audiovox Electronics Corp. cannot accept any responsibility whatsoever for accidents resulting from failure to observe these precautions...
-
Page 3: Controls And Indicators
CONTROLS AND INDICATORS Figure 1. LCM45NB Monitor Controls and Indicators A: 4.5” TFT color LCD B: Speaker volume control: adjusts the rearview camera volume only when the vehicle is in reverse. C: LCD brightness control: adjusts the brightness of display. - Page 4 TURNING THE LCD MONITOR ON/OFF The LCD Monitor turns ON every time the ignition key is turned ON and system powered up. The monitor turns OFF every the Ignition key is turned OFF and the system powered down. VIEWING THE REAR OBSERVATION CAMERA IMAGE (optional) If a rear observation camera is installed, the monitor will display the rear observation camera image whenever the vehicle is shifted into the...
- Page 5 LCD MONITOR BRIGHTNESS CONTROL The brightness adjustment control is on the bottom right of the monitor (see Figure 1-C). Rotating the wheel to the right will decrease the brightness. Rotating the wheel to the left will increase the brightness. SPEAKER VOLUME CONTROL The speaker volume control is on the bottom left side of the monitor (see Figure 1-B).
- Page 6 Maintenance Though your monitor requires little care, you can still maintain its condition and performance by following the procedures below. • Keep your system away from excessive moisture, extreme heat or cold, and magnetic fields. • Keep liquids away from the display . •...
-
Page 7: Troubleshooting
Troubleshooting Symptoms No video signal appears while reversing the vehicle? Video image is not sharp enough? Specifications General Power Supply Power Consumption Current Draw Audio Power Output Operating Temperature Range Display System Screen Brightness Contrast ratio Backlight Life Resolution Video Format Display Format Solutions Check that the cable from the control... - Page 8 © 2005 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-7568...
