- Page 1 DONUT 6 USER’S MANUAL rel. 1.0 GB...
- Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.
-
Page 3: Table Of Contents
INDEX: 1- SYMBOLS ......................... 4 2- GENERAL WARNING ....................4 3- GENERAL WARRANTY CONDITIONS ..............4 4- TECHNICAL FEATURES ..................5 5- ACCESSORIES ......................6 6- IMPORTANT SAFETY INFORMATION ..............7 6.1 Fire prevention...................... 7 6.2 Prevention of electric shock .................. 7 6.3 Safety ........................ -
Page 4: 1- Symbols
1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL INDICATES THE MINIMUM DISTANCE FROM THE ILLUMINATED OBJECTS THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE”... -
Page 5: 4- Technical Features

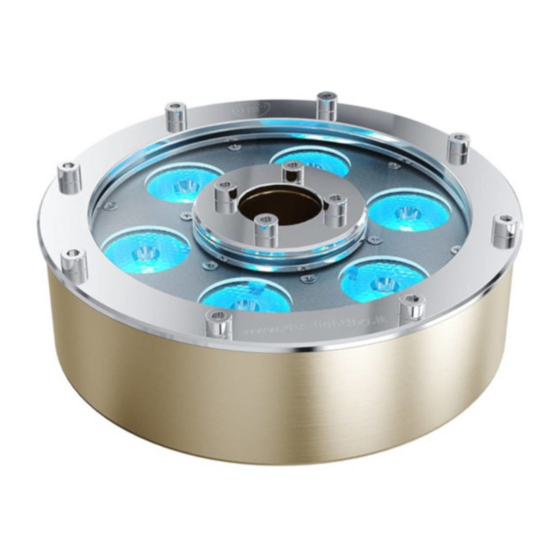

4- TECHNICAL FEATURES Product codes: 03.DN004.F08 DONUT 6 FC Ultra-Narrow lenses 03.DN004.F10 DONUT 6 FC Narrow lenses 03.DN004.F25 DONUT 6 FC Medium lenses 03.DN004.F40 DONUT 6 FC Wide lenses Output 6 Full Color (RGBW) LEDs Lumens: 2400 @ 700mA LED lifespan: 50.000 hours (70% lumen output) -
Page 6: 5- Accessories
DIMENSIONS 5- ACCESSORIES Optional (on request) ● 8-pole underwater cable (code 0509C123) ● HUB-IP20 Screw terminals 1 IN / 3 OUT (code 03.LA.131) ● HUB-IP56 Screw terminals 1 IN / 3 OUT (code 03.LA.131.IP56) -
Page 7: 6- Important Safety Information
Do not use any cleaning towels that are abrasive. Use only microfiber towels. If unsure about the suitability of a product for cleaning bronze, contact DTS. Maintenance period can vary depending on water quality and environment conditions. -
Page 8: Maintenance
Do not use cleaning products containing chlorides (i.e. hydrochloric acid) or other abrasive chemicals. Do not use high-pressure cleaners. If unsure about the suitability of a product for cleaning stainless steel, contact DTS. Routine cleaning with soap and water is usually sufficient to maintain the corrosion resistance and appearance of 316 Stainless Steel. -
Page 9: 7- Connections
7- CONNECTIONS DONUT 6 FC is provided with end-stripped 8-pole cable (5 m length). The maximum distance between DRIVENET PSU and DONUT 6 FC unit should not exceed 100 meters. -
Page 10: 8- Connections Diagram
8- CONNECTION DIAGRAMS The maximum number of DONUT 6 FC connectable to each output of the DRIVENET 28 EZ / 416 / 832 / 1664 is 2 pcs serial wired. The maximum distance between DRIVENET PSU and last DONUT 6 FC unit of the... - Page 11 8- CONNECTION DIAGRAMS The maximum number of DONUT 6 FC connectable to each output of the DRIVENET 832 or 1664 24Vdc is 1 piece. The maximum distance between DRIVENET PSU and DONUT 6 FC unit should not exceed 100 meters.
- Page 12 ISO 9001:2015 DTS quality system is certified 9001:2015 standard 0517I341 D.T.S. Illuminazione s.r.l. ● Via Fagnano Selve 12- 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it Product and specifications subjects to change without notice.
