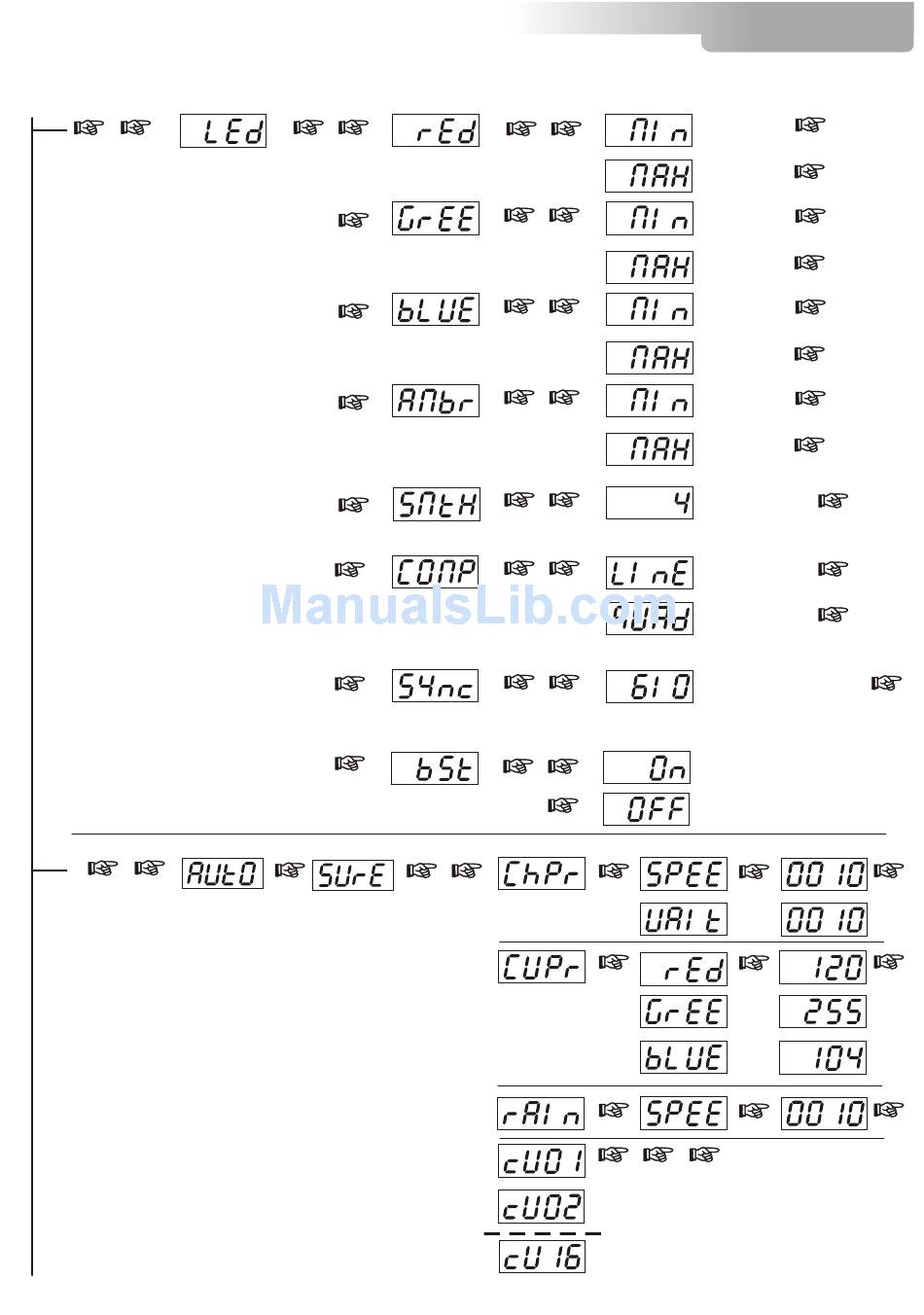

RGBA Min/Max, Smooth, Compression
level values settings and Boost mode
RGBA MINIMUM VALUES
This menu allow to select the
minimum levels for Red, Green,
Blue and Amber
RGBA MAXIMUM VALUES
This menu allow to select the
maximum levels for Red, Green,
Blue and Amber
These settings have priority on
Master Dimmer (DMX channel 2)
SMOOTH VALUE
This menu allow to select the value
of the delay (in milliseconds) for
RGBA and Dimmer channels
reaction to DMX or Program
variation.
Off = 25 ms delay (Fast response)
20 = 250 ms delay (Slow response)
COMPRESSION
This menu allow to select between
Linear current output or Quadratic
current output for LEDs
Default = Linear
SYNC
This menu allow to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process of
your camera recordings
BOOST DRIVING
This menu allow to increase the
LED's current from 350mA to 500
mA
MENU Up-Down
AUTOMATIC MODE
Automatic demo game without
DMX controller
ChPr
Chase with 16 steps previously
created in REC MODE
Speed and Wait time selectable
by user
CUPr
RGB values selectable by user
Rainbow (rAIn)
Rainbow colours effect.
Speed time selectable by user
CU01-CU16
Color Macros as on DMX channel
8 (Macro)
ENTER Up-Down
Up-Down
Up-Down
Up-Down
Up-Down
Up-Down
Up-Down
ENTER ENTER Up-Down
13
ENTER Up-Down
ENTER Up-Down
ENTER Up-Down
ENTER Up-Down
ENTER Up-Down
ENTER Up-Down
ENTER Up-Down
ENTER Up-Down
Up-Down
ENTER
ENTER
ENTER
ENTER Up-Down
DELTA 10 F
Default = 0
ENTER
Default = 100
ENTER
Default = 0
ENTER
Default = 100
ENTER
Default = 0
ENTER
Default = 100
ENTER
Default = 0
ENTER
Default = 100
ENTER
Range = Off - 20
ENTER
Default = 4
Linear = Linear
current output
ENTER
Quadratic =
Linear light
ENTER
output
Range = 610 Hz -10 KHz
Default = 610 Hz
With BOOST active,the LED's
current is setted to 500mA
(30%more gain).
Default = Disable
