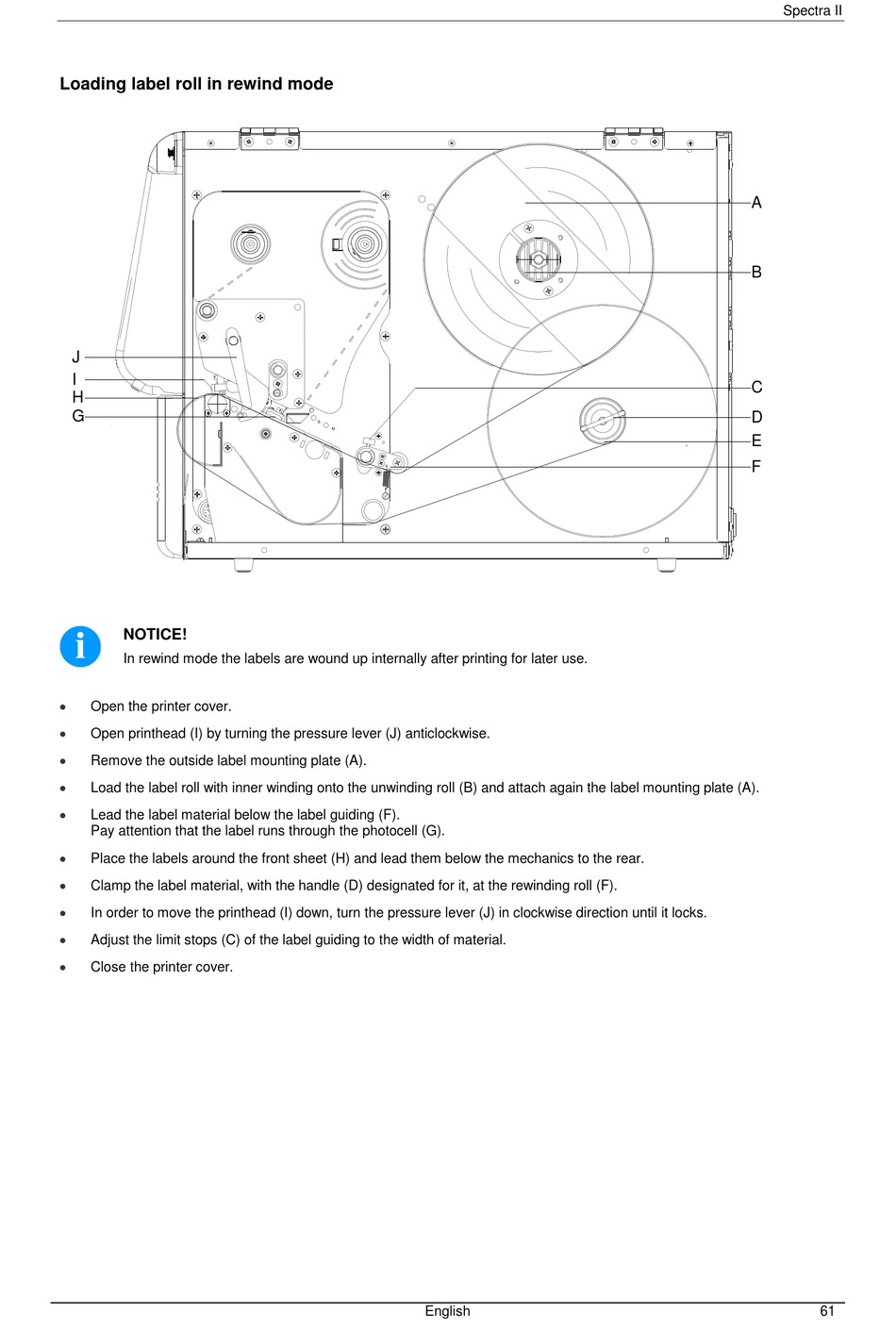

Loading label roll in rewind mode

J
I
H
G
NOTICE!
In rewind mode the labels are wound up internally after printing for later use.

Open the printer cover.

Open printhead (I) by turning the pressure lever (J) anticlockwise.

Remove the outside label mounting plate (A).

Load the label roll with inner winding onto the unwinding roll (B) and attach again the label mounting plate (A).

Lead the label material below the label guiding (F).
Pay attention that the label runs through the photocell (G).

Place the labels around the front sheet (H) and lead them below the mechanics to the rear.

Clamp the label material, with the handle (D) designated for it, at the rewinding roll (F).

In order to move the printhead (I) down, turn the pressure lever (J) in clockwise direction until it locks.

Adjust the limit stops (C) of the label guiding to the width of material.

Close the printer cover.
English
Spectra II
A
B
C
D
E
F
