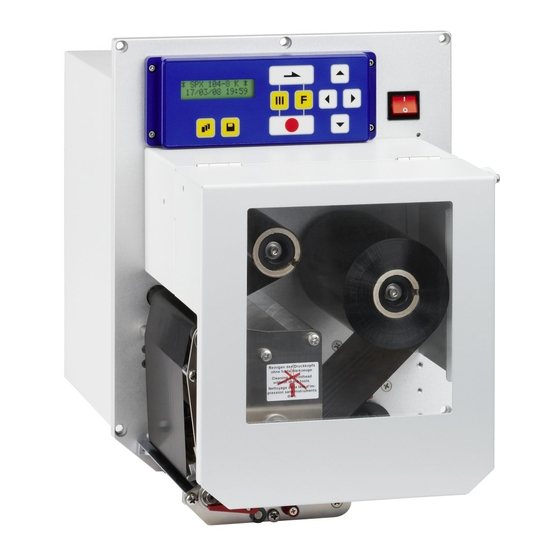

Summary of Contents for Carl Valentin SPX II

  • Page 2 It must not be concluded from the missing labelling that it is not a registered brand or a registered trademark. Carl Valentin print modules comply with the following safety guidelines: EG Low-Voltage Directive (2006/95/EC)

  • Page 3: Table Of Contents

    SPX II Table of Contents Table of Contents Table of Contents ................3 Serial Data Transmission ............. 5 Connector Assignment (9-pin DSUB Socket) ......5 Connection Plan RS232 ............6 Parallel Data Transmission ..........7 Connection Plan ..............7 Text, Bar Code, Graphic ............8 Definition of Rotation ...............
  • Page 4 Table of Contents SPX II Parameter Sets ..............51 Label Parameters ..............51 Photocell ................56 Device Settings ..............58 Dispenser I/O ................. 64 Interface ................. 70 Network ................. 72 Offset Values ................. 76 Service Functions ..............77 Date & Time ................81 9.10...

  • Page 5: Serial Data Transmission

    SPX II Serial Data Transmission Serial Data Transmission 1.1 Connector Assignment (9-pin DSUB Socket) Signal Description T x D Transmitting data line R x D Receiving data line GND signal HW Handshake HW Handshake 07.19 Interface manual...

  • Page 6: Connection Plan Rs232

    Serial Data Transmission SPX II 1.2 Connection Plan RS232 Print module (DSUB 9 plug) PC (DSUB 25 socket) Software Handshake TXD PIN 2 PIN 3 RXD RXD PIN 3 PIN 2 TXD GND PIN 5 PIN 7 GND PIN 4 RTS...

  • Page 7: Parallel Data Transmission

    SPX II Parallel Data Transmission Parallel Data Transmission 2.1 Connection Plan Signal Signal name Direction Function Pin no. (Input) STROBE STROBE signal indicates that data can be received. The impulse width to the receiving line has to be 0,5 µs at least.

  • Page 8: Text, Bar Code, Graphic

    SPX II Text, Bar Code, Graphic Text, Bar Code, Graphic 3.1 Definition of Rotation 3.2 Definition of Datum Point The so-called datum point is the relation point for indication of position. In the meantime the datum point is also the point at which the selected object is rotated.

  • Page 9: Data Format

    SPX II Data Format Data Format The data format consists of four parties: • • Mask set Graphic • • Text Command For a n-line label the following has to be transmitted: • • n - mask sets n - graphic sets (if necessary) •...

  • Page 10: Explication

    Data Format SPX II 4.1 Explication Distance from right label rim in mm x coordinate: Measured from the right label rim up to the lower left point of the corresponding line y coordinate: Distance from upper label rim in mm...

  • Page 11: Definition Of Field Attributes/Field Properties (Optional)

    SPX II Data Format 4.2 Definition of Field Attributes/Field Properties (optional) Additionally to mask set 'AM[ ] …' the possibility was created to define Explanation further field properties. In order to achieve a high flexibility, the field properties received own names/identifications. Therefore the sequence as well as the number of field properties is free.

  • Page 12: Field Name

    Data Format SPX II 4.3 Field Name Application When printing systems are connected to a computer system or machine controls, there is often the requirement that variable data is (customized) to be inserted into an existing layout. This data contents come from the superordinate computer system (database) or a machine control (e.g.
  • Page 13 SPX II Data Format As an alternative to the field index, the assignment can also be made Explanation via the field name. A change in the field index has no longer any influence, and a changed layout is still filled in the right places with variable data of the computer system/control system.
  • Page 14 Data Format SPX II For text fields, a printer-internal font must be used. The printer-internal fonts are marked by a printer symbol in the list. Export to a print file and save the layout in the external controller When the label design is finished, the label is exported to a print file.
  • Page 15 SPX II Data Format The option Create separate data file must be selected, otherwise the line (SOH)FBC---r--------(ETB) is included in the print file, which would immediately release a print procedure. By starting a print procedure, this print file (layout definition / mask definition) is transferred from the controller/computer system to the printing system first.
  • Page 16 Data Format SPX II Filling the variable fields by the controller/computer system The higher-level control can select the variable fields by the field names and set the contents. Subsequently, the print job is restarted. Example (SOH)FMB---rfilename(ETB) Loading the layout from mc (SOH)BV[ArtBez]screws(ETB) Filling the field "ArtBez"...

  • Page 17: Mask Set

    SPX II Series Mask Set Mask Set 5.1 Text AMny;x;p;a;d;z;dy;dx;lp;dp identification for mask set identification for protocol version field number Y coordinate in 1/100 mm X coordinate in 1/100 mm identification for phantom field 0 = print 1 = no print...
  • Page 18 Mask Set SPX II Series extension in direction Y bitmap fonts factor 0…9 vector fonts character size in 1/100 mm vector fonts autoscale field height extension in direction X bitmap fonts factor 0-9 vector fonts character size in 1/100 mm...

  • Page 19: One-Dimensional Bar Code

    SPX II Mask Set 5.2 One-Dimensional Bar Code AMny;x;p;a;d;h;v1;v2;pz;z;dp identification for mask set identification for protocol version Field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print...

  • Page 20: Itf Bar Code

    Mask Set SPX II Series 5.3 ITF Bar Code AMny;x;p;a;d;h;v1;v2;pz;z;dp identification for mask set identification for protocol version Field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print...

  • Page 21: Pdf417

    SPX II Mask Set 5.4 PDF417 AMny;x;p:a;d;s;rw;rh;ec;z;dp;c;r identification for mask set identification for protocol version Field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print identification for field type...

  • Page 22: Maxicode

    Mask Set SPX II Series 5.5 MAXICODE AMny;x;p;a;d;0;sn;ns;m;0;dp identification for mask set identification for protocol version field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print identification for field type...

  • Page 23: Datamatrix

    SPX II Mask Set 5.6 DataMatrix AMny;x;p;a;d;s;aw;ah;ec;f;dp identification for mask set identification for protocol version field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print identification for field type...

  • Page 24: Gs1 Datamatrix

    Mask Set SPX II Series 5.7 GS1 DataMatrix AMny;x;p;a;d;s;aw;ah;ec;f;dp identification for mask set identification for protocol version field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print...

  • Page 25: Codablock F

    SPX II Mask Set 5.8 CODABLOCK F AMny;x;p;a;d;h;nc;nl;m;s;dp identification for mask set identification for protocol version field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = printout 1 = np printout identification for field type...

  • Page 26: Gs1 Databar (Rss Code)

    Mask Set SPX II Series 5.9 GS1 DataBar (RSS Code) AMny;x;p;a;d;s;m;k;t;0;dp identification for mask set identification for protocol version field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print...

  • Page 27: Qr Code

    SPX II Mask Set 5.10 QR Code AM[n]y;x;p;a;d;mo;cs;ms;cw;ec;dp identification for mask set identification for protocol version field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print identification for field type...

  • Page 28: Aztec Code

    Mask Set SPX II Series 5.11 Aztec Code AM[n]y;x;p;a;d;h;f;ec;m;0;dp identification for mask set identification for protocol version field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print...

  • Page 29: Rectangle

    SPX II Mask Set 5.12 Rectangle AMny;x;p;a;h;b;s;m;dp identification for mask set identification for protocol version field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print identification for field type...

  • Page 30: Internal Graphic

    Mask Set SPX II Series 5.14 Internal Graphic AMny;x;p;a;d;dy;dx;dp identification for mask set identification for protocol version field number Y position in 1/100 mm X position in 1/100 mm identification for phantom field 0 = print 1 = no print...

  • Page 31: Text Set

    SPX II Series Text Set Text Set BM[n]text identification for text set identification for extended protocol field number text data contents, text BV[n]text identification for text set identification for selection by field name field name text data contents, text BF[n]text...

  • Page 32: Examples

    Text Set SPX II Series 6.1 Examples Mask set Texts set [SOH]BM[125]=CN(0,0,3,1,1)000[ETB] Text set with variable definition: Example label ASCII data Identification AM[1]3600;4600;0;33;0;1500;0;4;1;1 mask set for bar code BM[1]444444444444 appropriate text set AM[2]600;4700;0;4;0;1;300;200;24 AM[3]600;3100;0;4;0;1;400;300;24 five mask sets vector AM[4]1100;4700;0;4;0;1;400;300;24 font / proportional font AM[5]1800;4700;0;4;0;1;300;200;24...

  • Page 33: Graphic Set

    SPX II Series Graphic Set Graphic Set 7.1 General Graphic Format This format is supported by all our print modules but note that a 8 bit transmission is absolute necessary. SOH D p p p p lb lb lb b b b gb………………… ETB min.

  • Page 34: Example Pcx File

    Graphic Set SPX II Series • It is recommended to observe that directly after the final sign (ETB) no separator res. fill character such as is indicated. • The print module supports the following PCX versions: 5, 3, 2 and •...

  • Page 35: Variables

    SPX II Series Variables Variables 8.1 Set Structure SOH BM n = v v ( p1 p2 p… pn ) t1 t2 t… t70 ETB start of function variable type link field counter extended counter date/time currency variable shift variable...

  • Page 36: Counter

    Variables SPX II Series 8.3 Counter SOH BM n = C N ( t ; m ; c ; +/- s ; i ; h ; r ) t1 t2 t… t70 ETB = CN identification counter type of counter...

  • Page 37: Extended Counter

    SPX II Variables 8.4 Extended Counter SOH BM n = C C ( +/- s ; i ; m ; z ; n ; x ) t ETB = CC identification of numeric counter +/− direction counter adding − counter subtracting...

  • Page 38: Date And Time

    Variables SPX II Series 8.5 Date and Time SOH BM n = C L ( m ; d ; i ; n ; c ; mo ; pd ; pm ; md ; mm ; rw ; ws ) t1 t… t70 ETB...

  • Page 39: Format Identifier (Date & Time)

    SPX II Variables 8.6 Format Identifier (Date & Time) Standard format Hours 2-digit (24 hours) Hours 2-digit (12 hours) Minutes 2-digit Seconds 2-digit AM/PM output Day 2-digit Month 2-digit YYYY Year 4-digit Year 2-digit Year 1-digit Calendar week Day of week (Sunday = 0)
  • Page 40 Variables SPX II Series Extended format Name of month short Name of month long Weekday short Weekday long For X you can enter the country identification of desired language C = Canadian D = Danish E = English F = French...
  • Page 41 SPX II Variables Extended format - XSO January February March April June Januar Februar Marts April Juni January February March April June Janvier Février Mars Avril Juin Januar Februar Maerz April Juni Gennaio Febbraio Marzo Aprile Maggio Giugno Januari Februari...

  • Page 42: Currency Variable

    Variables SPX II Series 8.7 Currency Variable SOH BM n = C U ( a ; b ; c ; d ; e ; f ; g ) t1 t2 t… t70 ETB = CU Signification of variable Euro ANSI-Code of thousand separator as decimal figure...

  • Page 43: Shift Variable

    SPX II Variables 8.8 Shift Variable SOH BM n = S H ( ) t1 t2 t… t70 ETB = SH identification of shift variable NOTICE! The shift variable did not need any parameters. The settings for the output are defined with the corresponding parameter sets.

  • Page 44: User Guiding

    Variables SPX II Series 8.9 User Guiding SOH BM n = U G ( c ; t ; m ; ap ; ae ; sp ) t1 t2 t… t70 ETB = UG identification user guiding start position for the entry...

  • Page 45: User Guiding With Mask

    SPX II Variables 8.10 User Guiding with Mask SOH BM n = U M ( c ; t ; m ; ap ; ae ; sp ; d ; ma ) t1 t2 t… t70 ETB = UM identification user guiding with mask...

  • Page 46: Memory Card Data

    Variables SPX II Series 8.11 Memory Card Data SOH BM n = M D ( FN="filename" ; SE='x' ; CH=x ; SC="x" ; SF="x" ; RC="x" ) ETB = MD identification of memory card data file name of table onto memory card with CSV data Separator sign (default = ';')

  • Page 47: Epc Calculation (Electronic Product Code)

    SPX II Variables 8.13 EPC Calculation (Electronic Product Code) SOH BM n = E P C ( M ; L ; F ; P ; N1 ; {N2} ) ETB = EPC identification of EPC calculation coding method length of manufacturer number (company prefix)

  • Page 48: Check Digit

    Variables SPX II Series 8.14 Check Digit BM n = C D ( d ; s ; l ; t ; w ; m ; r ; o ) t1 t… t70 ETB = CD Identification of check digit Data for check digit calculation (field number of constant text) Constant text is enclosed in "".

  • Page 49: Substring

    SPX II Variables 8.15 Substring SOH BM n = S S ( d ; s ; l ) ETB = SS Identification of substring Data used for substring extraction (field number or field name or constant text. Constant text is enclosed in "".

  • Page 51: Parameter Sets

    SPX II Series Parameter Sets Parameter Sets 9.1 Label Parameters Set label photocell type SOH F C D E - - r N - - - - - - - ETB N: 0 = transmission photocell normal N: 1 = reflection photocell...
  • Page 52 Parameter Sets SPX II Series Set label length in 1/100 mm SOH F C C L - - r N N N N N N N - ETB N = value of label length in 1/100 mm, 7 digit ASCII number...
  • Page 53 SPX II Parameter Sets Set label synchronization SOH F C D G B - r N - - - - - - - ETB N: 0 = Off N: 1 = On Enquire label synchronization SOH F C D G B - w p p p p p p p p ETB...
  • Page 54 Parameter Sets SPX II Series Set contrast SOH F C A B - - r N N N - - - - - ETB NNN: indication of contrast in % (010 … 200) NNN: necessary to transmit a 3 digit ASCII number.
  • Page 55 SPX II Parameter Sets Set material selection SOH F C D N C - r N N N N - - - - ETB NNNN: indication of material 0 = type 1 1 = type 2 Enquire material selection SOH F C D N C - w p p p p p p p p ETB...

  • Page 56: Photocell

    Parameter Sets SPX II Series 9.2 Photocell Enquire minimal measured level at label photocell (label parameter A) SOH F C M A A - w p p p p p p p p ETB Answer SOH A N N N - - - - - p p p p p p p p ETB...
  • Page 57 SPX II Parameter Sets Enquire current value at label photocell SOH F C M B B - w p p p p p p p p ETB Answer SOH A N N N - - - - - p p p p p p p p ETB...

  • Page 58: Device Settings

    SOH F C A A - - r N N N - - - - - ETB NNN: Indication of print speed in mm/s SPX II 103/8 = 50 … 300 SPX II 104/8 = 50 … 300 SPX II 106/12 = 50 … 300 SPX II 106/24 = 50 …...
  • Page 59 SPX II Parameter Sets Set print module language SOH F C D I - - r N - - - - - - - ETB N: 10 = German N: 17 = Netherlands N: 14 = Chinese N: 11 = English...
  • Page 60 Parameter Sets SPX II Series Set customized entry SOH F C D U - - r N - - - - - - - ETB N: 0 = Off No question appears at the display. In this case the stored default value is printed.
  • Page 61 SPX II Parameter Sets Set brightness of display (contrast) SOH F C C B B - r N N N - - - - - ETB NNN = value range of display brightness 045 … 075 Enquire display brightness SOH F C C B B - w p p p p p p p p ETB...
  • Page 62 Parameter Sets SPX II Series Set backfeed operating mode SOH F C M R A - r N - - - - - - - ETB N: 0 = standard N: 1 = automatic N: 2 = no backfeed N: 3 = optimized...
  • Page 63 SPX II Parameter Sets Set CMI length SOH F C D J C - r N - - - - - - - ETB NNN: value that the labels are retracted at a stop 3 digit ASCII number in 1/100 mm (000 … 100)

  • Page 64: Dispenser I/O

    Parameter Sets SPX II Series 9.4 Dispenser I/O Set dispenser mode SOH F C D C - - r N - - - - - - - ETB N: 0 = Dispenser mode Off N: 1 = External I/O static...
  • Page 65 SPX II Parameter Sets Enquire status of I/O inputs SOH F C M D A - w p p p p p p p p ETB Answer SOH A 1 2 3 4 5 6 7 8 p p p p p p p p ETB...
  • Page 66 Parameter Sets SPX II Series Set IN signal level SOH F C M D C - r 1 2 3 4 5 6 7 8 ETB IO port 1-8 (dispenser inputs 1-8): Increased and decreased Increased Decreased I/O signal by interface I/O signal blocked Only possible for IO ports that are specified as input.
  • Page 67 SPX II Parameter Sets Set OUT signal level SOH F C M D D B r 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 ETB IO port 1-16 (dispenser output 1-16): Signal level 1...
  • Page 68 Parameter Sets SPX II Series Set software output SOH F C M D G - r 1 2 3 4 5 6 7 8 ETB IO Port 9-16 (sispenser outputs 1-8): Set software output Delete software output Only possible for IO ports whose output signal levels are activated for interface.
  • Page 69 SPX II Parameter Sets Set start signal delay SOH F C S D D - r N N N - - - - - ETB NNN = start signal delay in 1/100 s (0 … 999) Enquire start signal delay...

  • Page 70: Interface

    Parameter Sets SPX II Series 9.5 Interface By means of the following commands the parameters of the serial interface can be set. Note that after sending one of the commands also the host computer changes the corresponding parameter of its interface to allow further communication of host computer-print module.
  • Page 71 SPX II Parameter Sets Data memory Set data memory SOH F C G D - - r M - - - - - - - ETB M: 0 = Off, after receiving FBCA0r or FBDA0r the interface is locked until the end of the print order, i.e. you cannot write more data in the receiving buffer.

  • Page 72: Network

    Parameter Sets SPX II Series 9.6 Network SOH F C L A - - r C 0 A 8 0 0 1 5 ETB All network parameter sets start in the third column with a 'L'. Column 4 shows the identification for the corresponding network parameter.

  • Page 73: Soh F C S D D - W P P P P P P P P Etb

    SPX II Parameter Sets Set transmission mode (e.g. auto recognition) SOH F C L D - - r 0 - - - - - - - ETB 0 = auto recognition 3 = 100 MBit/s half duplex 1 = 10 MBit/s half duplex...
  • Page 74 Parameter Sets SPX II Series With the A record any address can be set in our pool. With the C record any address in our pool and the identification of the MAC address can be set/changed at the same time.

  • Page 75: Answer Soh A N

    SPX II Parameter Sets Readout NTP status SOH F C L N S - w p p p p p p p p ETB Answer SOH A N - - - - - - - p p p p p p p p ETB...

  • Page 76: Offset Values

    Parameter Sets SPX II Series 9.7 Offset Values Set Y offset SOH F C C D - - r V N N N - - - - ETB V = offset prefix (+ or −) NNN = offset value, 3 digit ASCII number in 1/10 mm...

  • Page 77: Service Functions

    SPX II Parameter Sets 9.8 Service Functions Set zero point adjustment (Y value) SOH F C C R - - r V N N N - - - - ETB Enquire zero point adjustment (Y value) SOH F C C R - - w p p p p p p p p ETB V: offset prefix (+ or −)

  • Page 78: N: 0 = Off N: 1 = On

    Parameter Sets SPX II Series Set reprint action SOH F C M K D - r N - - - - - - - ETB Enquire reprint action SOH F C M K D - w p p p p p p p p ETB...
  • Page 79 SPX II Parameter Sets Set transfer ribbon prior warning SOH F C M L A - r N - - - - - - - ETB N: 0 = Off N: 1 = On Enquire transfer ribbon prior warning SOH F C M L A - w p p p p p p p p ETB...
  • Page 80 Parameter Sets SPX II Series Set reduced speed (ribbon prior warning) SOH F C M L D B r N N N - - - - - ETB … V NNN = V : reduced print speed … V NNN = V...

  • Page 81: Date & Time

    SPX II Parameter Sets Paper counter The paper counter (kilometer value) of print module as well as of printhead can only be enquired by interface and not reset to 0. Enquire paper counter of print module SOH F C H A - - w p p p p p p p p ETB...
  • Page 82 Parameter Sets SPX II Series Automatically adjust clock for daylight saving changes Because of the fact that there is no world-wide regulation if and when a changing of time between summer and wintertime (normal time) in the individual countries takes place, we distinguish between the following four formats for the definition for beginning and end of summertime.
  • Page 83 SPX II Parameter Sets Set beginning of summertime F 0: SOH F C I H - - r F W ; WD ; M M ; H H ; M M ETB F 1: SOH F C I H - - r F D D ; M M ; Y Y ; H H ; M M ETB F 2: SOH F C I H - - r F D D ;...

  • Page 84: Password

    Parameter Sets SPX II Series 9.10 Password Set password SOH F C K A - - r N N N N - - - - ETB NNNN = input of password 4 digit ASCII number in mm (0000 … 9999)
  • Page 85 SPX II Parameter Sets Set password active SOH F C K C - - r N - - - - - - - ETB N: 0 = inactive (N in display) N: 1 = active (J in display) Enquire password active...
  • Page 86 Parameter Sets SPX II Series Set password printing manually SOH F C K D D - r N N N N - - - - ETB NNNN = input of password 4 digit ASCII number in mm (0000 … 9999)

  • Page 87: Compact Flash Card

    SPX II Parameter Sets 9.11 Compact Flash Card Save a label onto Compact Flash card SOH F M A O - - r P ETB O: In case a label with the entered name exists already then the label is overwritten without an enquiry. If you enter another value as 0, an enquiry appears demanding if you want to overwrite.
  • Page 88 Parameter Sets SPX II Series Readout free memory space SOH F M H O - - w X p p p p p p p p ETB O: In case O is indicated, no error messages are displayed at the printing display e.g.
  • Page 89 SPX II Parameter Sets Set standard directory for file selection via I/O SOH F M K B - - r N ETB N = directory path Enquire standard directory for file selection via I/O SOH F M K B - - w p p p p p p p p ETB...
  • Page 90 Parameter Sets SPX II Series Drive status SOH F M S - - - w X ETB X - Drive A,B Answer SOH A X S ETB X = Drive A,B S = Status 0: no storage medium 1: not formatted...

  • Page 91: Printing

    SPX II Parameter Sets 9.12 Printing Set number of lines (n digits) SOH F B A A - - r N ETB N = number of lines in ASCII (1, 10, 100, …) Enquire number of lines SOH F B A A - - w p p p p p p p p ETB...
  • Page 92 Parameter Sets SPX II Series Item number of print order By means of this command the Host computer can enquire following item numbers: Total number of current print order SOH F B B A - - w p p p p p p p p ETB...
  • Page 93 SPX II Parameter Sets Start printing SOH F B C - - - r S - - - - - - - ETB This command starts the print order which is actually set in the print module. The current parameters such as print mode, speed, initialization etc.

  • Page 94: Emulation

    9.13 Emulation Set emulation SOH F Z - - - - r N - - - - - - - ETB N: 0 = CVPL (Carl Valentin Programming Language) ® N: 1 = ZPL II (Zebra Programming Language)

  • Page 95: Parameter Sets For Options

    SPX II Series Parameter Sets for Options 10 Parameter Sets for Options 10.1 WLAN (Wireless Local Area Network) Enquire connection status SOH F C W C - - w p p p p p p p p ETB N: 0 = not connected...
  • Page 96 Parameter Sets for Options SPX II Series Set Gateway address (e.g. 192.168.1.2) SOH F C W G - - r x ETB x = 192.168.1.2 Enquire Gateway address SOH F C W G - - w p p p p p p p p ETB Answer SOH A 1 9 2 .
  • Page 97 SPX II Parameter Sets for Options Readout anew configuration from WLAN module and transfer to the printer SOH F C W R - - r p p p p p p p p ETB Answer SOH A N ; p p p p p p p p ETB...
  • Page 98 Parameter Sets for Options SPX II Series Set high speed data connection SOH F C W H - - r x ETB This setting is specified at the printer and if an active connection to the WLAN module exists, in the WLAN module, too. Subsequently the printer is again started.

  • Page 99: Label Applicator

    SPX II Parameter Sets for Options 10.2 Label Applicator Set operating mode SOH F C P A - - r N - - - - - - - ETB N = 0 – Off N = 1 – Stamp on N = 2 –...
  • Page 100 Parameter Sets for Options SPX II Series Set support delay Off SOH F C P D - - r N N N N - - - - ETB NNNN = Delay time in ms [0 … 2500] Enquire support delay Off...
  • Page 101 SPX II Parameter Sets for Options Set roll-on time SOH F C P H - - r N N N N - - - - ETB NNNN = Roll-on time in ms [0 … 5000] Enquire roll-on time SOH F C P H - - w p p p p p p p p ETB...
  • Page 102 Parameter Sets for Options SPX II Series Set cleaning time SOH F C P K - - r N N N N - - - - ETB NNNN = Cleaning time in ms [0 … 2500] Enquire cleaning time SOH F C P K - - w p p p p p p p p ETB...
  • Page 103 SPX II Parameter Sets for Options Set vacuum delay On SOH F C P O - - r N N N N - - - - ETB NNNN = Delay time in ms [0 … 2500] Enquire vacuum delay On...
  • Page 104 Parameter Sets for Options SPX II Series Set delay lower end position SOH F C P U - - r N N N N - - - - ETB NNNN = Delay time in ms [0 … 1000] Enquire delay lower end position...

  • Page 105: Configuration & Status

    SPX II Series Configuration & Status 11 Configuration & Status Save configuration permanent In case you want to save the described settings permanent into the print module, then you have to transmit the following command to the print module. SOH F X - - - - r N - - - - - - - ETB...

  • Page 106: Autostatus

    Configuration & Status SPX II Series 11.1 Autostatus The print modules are equipped with an auto status function, i.e. in certain operating modes the print module actively sends the corresponding status. This can be enquired by the serial interface. To activate the auto status, the host computer has to send the following command to the print module: SOH G 1.
  • Page 107 SPX II Configuration & Status The printer sends the auto status in the following format to the host computer: SOH G 1. Byte 2. Byte ETB 1. Byte 8. Bit = start of generation 4. Bit = start cutting 7. Bit = end of generation 3.

  • Page 109: Monitored Printing

    SPX II Series Monitored Printing 12 Monitored Printing This protocol replaces the outdated Autostatus. In contrary to the Autostatus, this is not a binary protocol but a text-based protocol sending the commands as English clear text. The advantage is a very fast and simple error tracing and development.

  • Page 110: Direct Enquiry

    Monitored Printing SPX II Series 12.3 Direct Enquiry Command: Requests print status. Syntax: #FHS---r* Example: #FHS---r* Description: Invites the client to send the current status. Command: User command to the sender of print order. Syntax: #FHU---rDaten* Example: #FHU---rSE* Description: Sends #Data* to the sender of print order.
  • Page 111 SPX II Monitored Printing Event: Error Set: #HSError-Pagename-Labelsprinted-ErrorID-Errormessage* Example: #HSError-NoName1-57-28-Messerfehler* Description: Indicates the occurance of an error including page name, number of printed labels, error ID and error text. Event: Error confirmation at printer Set: #HSAck-Pagename-Labelsprinted * Example: #HSAck-NoName1-57* Description: Indicates the confirmation of an error including page name and number of printed labels.

  • Page 112: Sample Label

    Monitored Printing SPX II Series 12.5 Sample Label A simple label with monitoring of all parameters with output of the progress – all 10 labels could look as following: FHM---rSP10E //Ueberwachung einschalten FHA---r2 // JOBNAME: "ETIKETT1" FBE---rETIKETT1 // TYPE: Endlosetiketten // HEIGHT: 20.00 mm...

  • Page 113: Font Examples

    SPX II Series Font Examples 13 Font Examples 13.1 Bitmap Fonts (Not Proportional) 13.2 Bitmap Fonts (Proportional) 13.3 Vector Fonts 07.19 Interface manual...

  • Page 115: Index

    SPX II Series Index 14 Index FBAA, number of lines ..............91 FBBA, total items of print order ............92 FBBB, labels still to print..............92 FBBC, already printed labels ............92 FBC, start printing ................93 FBD,start printing (w/o tear-off offset ..........93 FBE, start printing (assign printjob identifier) ........
  • Page 116 Index SPX II Series FCDX, autoload ................61 FCFF, interface parameters ............. 70 FCGC, SOH/ETB ................70 FCGD, data memory ................ 71 FCGEA, reaction unknown questions ..........71 FCHA, paper counter print module ........... 81 FCHB, paper counter printhead ............81 FCIA, date ..................
  • Page 117 SPX II Index FCMLA, ribbon prior warning ............79 FCMLB, ribbon prior warning diameter ..........79 FCMLC, ribbon diameter ..............79 FCMLDA, mode (ribbon prior warning) ..........79 FCMLDB, reduced speed (ribbon prior warning) ......80 FCMP, winder output ................ 78 FCMQ, status print ................
  • Page 118 Index SPX II Series FMA, save label (cf card)..............87 FMB, load file (cf card) ..............87 FMC, delete layout (cf card) ............. 87 FMD, format (cf card) ............... 87 FMG, table of contents (cf card) ............87 FMH, memory space (cf card) ............88 FMI, create directory (cf card) ............
  • Page 119 SPX II Index configuration, readout and transfer (WLAN) ........97 connection status (WLAN)..............95 contrast ..................54, 61 custom logo ..................80 customized entry ................60 data format explanation ..................10 field attributes ................. 11 field name ............... 12, 13, 14, 15, 16 field properties ................
  • Page 120 Index SPX II Series dispenser photocell ................57 dispenser, offset ................. 76 display brightness ................61 emulation .................... 94 encryption (WLAN) type ....................95 WEP128 ..................97 WEP64 .................... 97 WPA/WPA2 ..................96 external printer parameters ..............59 feed ..................... 94 field handling ..................
  • Page 121 SPX II Index label photocell ................51, 57 Label type ..................51 length ....................52 Measure ..................51 rotate ....................54 standard label ................. 61 synchronization at switching on ............62 width....................52 label applicator application mode ................99 application signal ................103 applicator inputs ................
  • Page 122 Index SPX II Series bar code GS1 DataMatrix ............... 24 bar code ITF ................... 20 bar code MAXICODE ..............22 bar code PDF417 ................21 bar code QR Code ................27 bar code, GS1 DataBar (RSS) ............26 bar code, one-dimensional ............. 19 internal graphic ................
  • Page 123 SPX II Index interface protocol ................70 label parameters ............. 51, 52, 53, 54, 55 network ................72, 73, 74 offset values ..................76 password ................84, 85, 86 password favorites menu ..............85 password function menu ..............85 password memory card ..............85 password printing manually ............
  • Page 124 Index SPX II Series save settings and restart (WLAN) ............97 scan position ..................55 sensitivity reflexion photocell .............. 55 sensitivity transmission photocell ............55 serial data transmission connection plan RS232..............6 connector assignment ............... 5 server port (WLAN) ................96 service functions custom logo ..................
  • Page 125 SPX II Index variables check digit ..................48 counter .................... 36 counter, extended ................37 currency variable ................42 date/time ............... 38, 39, 40, 41 EPC (Electronic Product Code) ............47 GS1-128 parser ................46 link field ................... 35 memory card data ................46 set structure ..................
