Step 2: Getting to Know Your Device
ConnectPort X2 LEDs and Buttons
Digi devices have several LEDs that indicate system status, link integrity, and link activity. The
following images illustrate the ConnectPort X2 LEDs.
The ConnectPort X2 reset button is located on the side panel of the device (as shown above). To
perform a factory reset of the device, locate an item that is small enough to be inserted into the
reset button hole (for example, the end of a paperclip or push‐pin). Next, insert the item into
the reset button hole, and press and hold the reset button for a few seconds. When the unit
resets, a flashing pattern of 1‐5‐1 on the Ethernet LED will indicate a successful factory reset.
ConnectPort X2 LED and Button Functionality
LED/Button
Ethernet
Link LED
Ethernet
Activity LED
Association
Power
Reset
Button
For additional information regarding the ConnectPort X2 LEDs and buttons, see the ConnectPort
X Family User's Guide available on the Digi Support website.
ConnectPort X2 Wireless M‐Bus Development Kit
Getting Started Guide

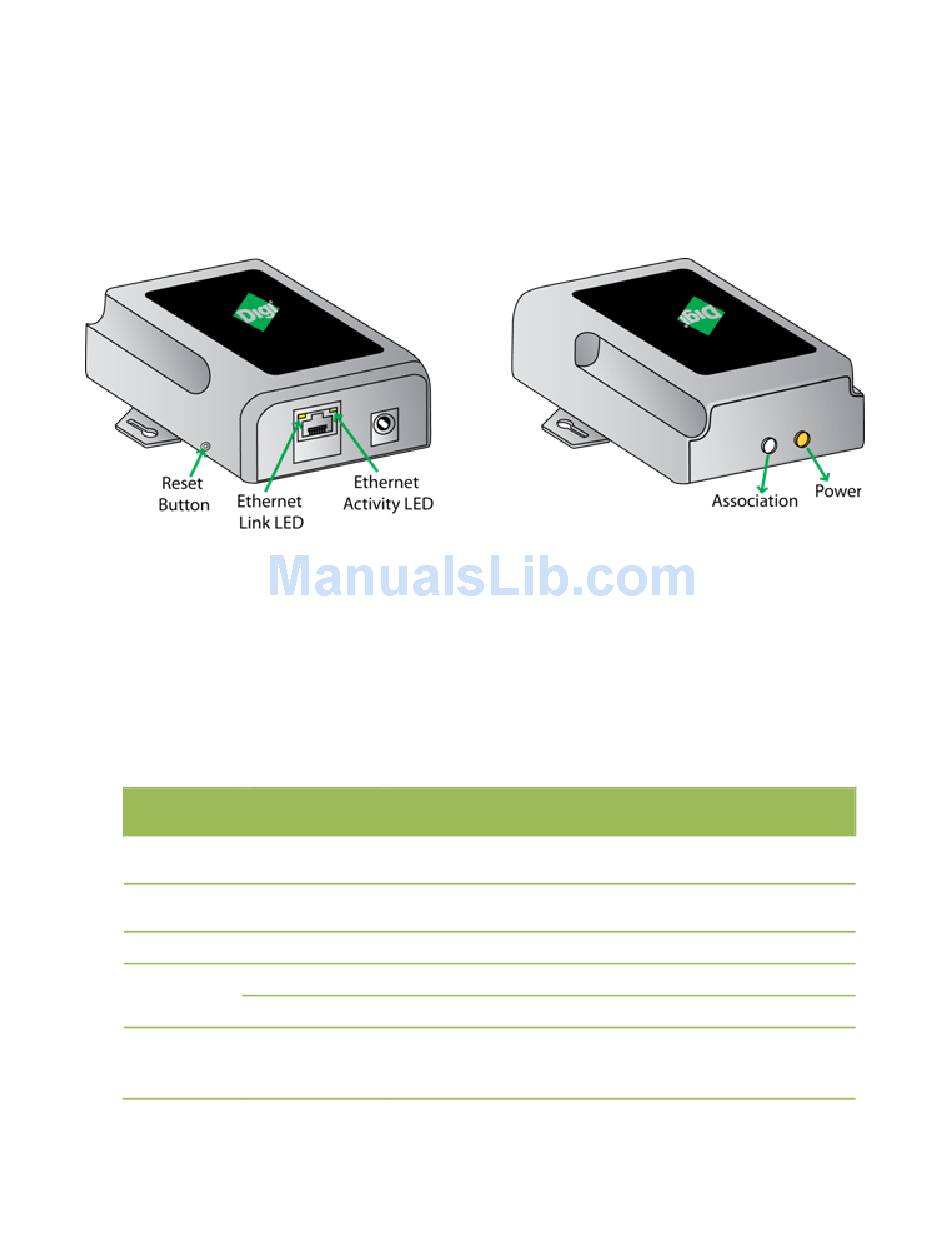

Figure 2: ConnectPort X2 LEDs and Buttons
Color and Light
Pattern
Solid yellow Ethernet link is up
Blinking green Ethernet traffic is on the link
N/A Not used
OFF Not functioning correctly
ON OK
Single press ‐ performs equivalent of a power‐cycle.
Press and hold at power on ‐ resets the device
configuration settings to factory defaults (factory reset).
Description
