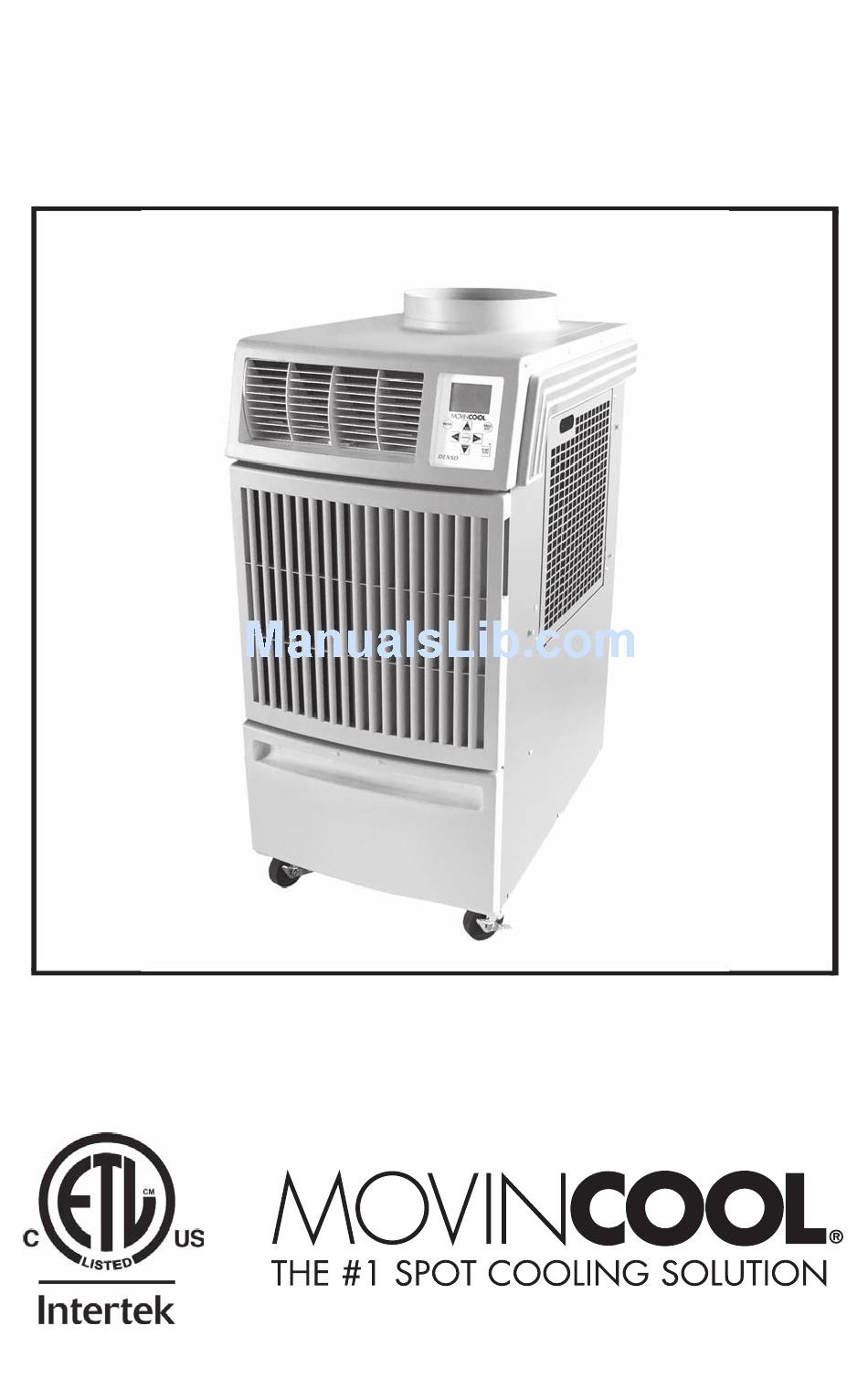

OPERATION MANUAL

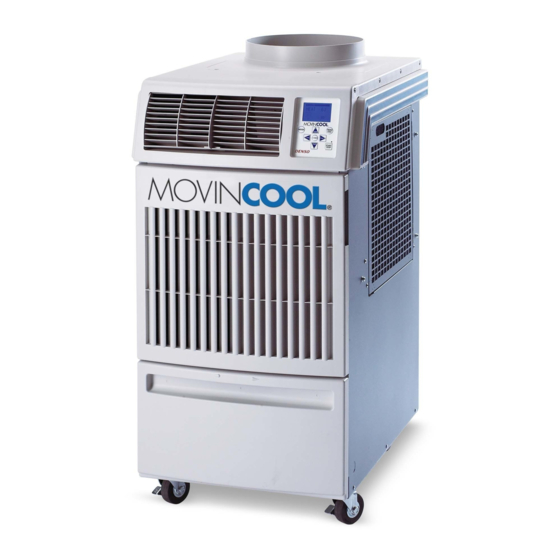

CLIMATE PRO 12
Unit Serial Number Range: 0915XXXXH12 to Present
(From September 2015 to Present)
READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT
INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS
SECCIÓN EN ESPAÑOL
SECTION EN FRANÇAIS
AVAILABLE AT WWW.MOVINCOOL.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLIMATE PRO 12 and is the answer not in the manual?

Questions and answers

Related Manuals for Movincool CLIMATE PRO 12

Summary of Contents for Movincool CLIMATE PRO 12

  • Page 1 OPERATION MANUAL CLIMATE PRO 12 Unit Serial Number Range: 0915XXXXH12 to Present (From September 2015 to Present) READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS SECCIÓN EN ESPAÑOL SECTION EN FRANÇAIS AVAILABLE AT WWW.MOVINCOOL.COM...

  • Page 2: Serial Number Location And Identification

    All rights reserved. This book may not be reproduced or copied, in whole or in part, without the written permission of the publisher. DENSO PRODUCTS AND SERVICES AMERICAS, INC. reserves the right to make changes without prior notice. MovinCool®, Office Pro®, and SpotCool® are registered trademarks of DENSO Corporation.
  • Page 3 OPERATION MANUAL CLIMATE PRO 12...

  • Page 4: Table Of Contents

    Table of Contents SERIAL NUMBER LOCATION AND IDENTIFICATION ........2 FOREWORD ...................... 6 Definition of Terms .................. 6 GENERAL WARNINGS & CAUTIONS.............. 7 INVENTORY....................... 8 INSTALLATION ....................9 Choosing an Installation Site ..............9 Moving the Unit ..................10 Setup Configuration and Accessories ........... 11 Plugging in the Unit ................
  • Page 5 Condensate Pump Kit (Optional Accessory) ......... 41 DAILY MAINTENANCE ................... 42 Emptying the Drain Tank ............... 42 Air Filter Maintenance ................42 Removing the Air Filters .............. 42 Cleaning the Air Filters ..............42 SEASONAL MAINTENANCE ................43 In-Season ....................43 Off-Season ....................

  • Page 6: Foreword

    FOREWORD Congratulations on purchasing the MovinCool portable air conditioner. This manual explains how to install and operate the MovinCool Climate Pro 12 portable air conditioning unit. Please read this operation manual thoroughly to familiarize yourself with the features of the unit and to ensure years of reliable operation.

  • Page 7: General Warnings & Cautions

    All electrical components replaced must be genuine MovinCool parts, purchased from an authorized dealer. • The power source for this unit should be a dedicated single outlet circuit with UL recognized short-circuit and ground fault protective breaker.

  • Page 8: Inventory

    INVENTORY After unpacking your MovinCool unit, please check to make sure you have the following items: 1. Climate Pro 12 Unit (1) 2. Operation Manual (1) 3. Product Registration (1) Note: If any of these items were not included in the box or appear damaged, please contact your MovinCool dealer for replacement.

  • Page 9: Installation

    • Install the unit in areas where can withstand the weight of the unit. Model Unit Weight Climate Pro 12 249 lb (113 kg) *1: Approximate weight when the drain tank is full of water. • Allow 24 inch (610 mm) of unobstructed airflow for both the air inlets and...

  • Page 10: Moving The Unit

    INSTALLATION (cont.) Moving the Unit Unlock the casters and push the unit using the side handles to a flat, level surface and set the casters back to the LOCKED position. Left Side Handle Right Side Handle ILL00962-00 Unlocked Locked ILL00044-01...

  • Page 11: Setup Configuration And Accessories

    INSTALLATION (cont.) Setup Configuration and Accessories The Climate Pro 12 works more efficiently with optional accessories set up and configured for cooling and heating application. The most common setup configurations are: 1. Spot Cooling/Heating Configuration ILL00963-00 2. Single Duct Cooling/Heating...

  • Page 12: Plugging In The Unit

    • Make sure the power supply outlet is free of dirt, dust, oil, water, or any other foreign matter. • The Climate Pro 12 is equipped with UL recognized LCDI cord and NEMA plug configuration (5-15). The appropriate outlet must be used for this plug type.

  • Page 13: Lcdi Power Cord Instruction

    INSTALLATION (cont.) LCDI Power Cord Instruction WARNING: This LCDI power cord is a non-serviceable device. Attempting to open the device may expose the user to the hazards of electric shock, and could void warranties of this product. Manufacture’s reliability is limited to the replacement of the device. CAUTION: •...

  • Page 14: External Thermostat Connection

    INSTALLATION (cont.) External Thermostat Connection The Climate Pro 12 comes with two types of external thermostat connections available to be connected with: a. An optional 24VAC transformer is required with a field supplied 24VAC thermostat. Follow the instruction steps provided with an optional 24VAC transformer for this connection.
  • Page 15 INSTALLATION (cont.) External Thermostat Connection (cont.) External Millivolt Thermostat Connection (Optional Accessory) (cont.) 6. Squeeze the inner latches and push out the black cap from inside the panel. Latch ILL00046-01 7. Insert the millivolt thermostat wires through the hole in the rear panel. 8.

  • Page 16: External 24Vac Thermostat Connection (Field Supplied)

    INSTALLATION (cont.) External Thermostat Connection (cont.) External 24VAC Thermostat Connection (Field Supplied) The Climate Pro 12 can also be connected with the external 24VAC thermostat where the 24VAC is readily available, simply follow the steps and connection table below. Service Box...

  • Page 17: External Warning Device Connection

    INSTALLATION (cont.) External Warning Device Connection The controller of this unit is equipped with a warning signal output relay which can be used to monitor failure condition of the unit and is compatible with various external warning devices such as alarm speaker, light indicators, etc. Relay type: Form C, normal open dry contact Relay output contactor rating: 2 A at 30 V (DC/AC) or less (resistive load) WARNING:...
  • Page 18 INSTALLATION (cont.) External Warning Device Connection (cont.) Service Box Warning Device ILL00774-00 5. Connect the warning signal wires to the terminals OS-1 and OS-2 as shown in the above figure. 6. Reinstall the service panel to the unit.

  • Page 19: External Alarm Device Connection

    INSTALLATION (cont.) External Alarm Device Connection The controller of this unit is equipped with two sets of input signal terminals on the terminal block which can connect the external alarm devices such as a fire alarm device. The input signal terminals should only be connected to a close or an open dry contact.
  • Page 20 INSTALLATION (cont.) External Alarm Device Connection (cont.) Service Box Alarm Device 1 Alarm Device 2 ILL00775-00 5. Connect the alarm signal wires to terminal AI-1 and AI-2 and/or FA-1 and FA- 2 as shown in the above figure. 6. Reinstall the service panel to the unit.

  • Page 21: Features

    FEATURES 1. Digital electronic control panel, which allows the user to easily control the unit’s operation. 2. Three fan speeds (HI, MID, LO) in all modes (COOL, HEAT, FAN ONLY). 3. Large digital LCD display with two backlight colors and multiple lines of displayed characters that indicate: •...

  • Page 22: Operation

    OPERATION Operation Modes The Climate Pro 12 operates in three modes, COOL, HEAT, and FAN ONLY. The unit is in standby mode if it is not operating in these modes. • Standby Mode When the unit is connected to power, the LED illuminates in orange color, and the LCD displays date, time and the previous mode setting condition with blue backlight that stays on for 60 seconds, then turns off.

  • Page 23: Control Panel

    OPERATION (cont.) Control Panel Before operating the unit, it is important to familiarize yourself with the basic controls located on the control panel. lLL00778-00 1. START/STOP Button Start or stop the unit operation. 2. LED Illuminate in Orange color for Self-Diagnostic and Standby mode, in Green color for normal operation.

  • Page 24: Lcd Indicators

    OPERATION (cont.) LCD Indicators lLL00779-00 lLL00780-00 ILL00781-00 1. Day of the week Indicate day of the week. 2. Time of the day Indicate time of the day. 3. Room Temp Indicate room temperature. 4. Key Locked Indicate keypad is locked. 5.

  • Page 25: Set Clock

    OPERATION (cont.) Set Clock Prior to operating the Climate Pro 12, set the clock of the controller to the correct time as shown in the following steps. 1. Press MENU button to go to MENU. 2. Use TEMP+ or -TEMP button to select SET CLOCK.

  • Page 26: Cool Mode Operation

    OPERATION (cont.) Cool Mode Operation 1. If the unit is in standby mode, simply press MODE button until “COOL” appears, then press START/STOP button. LCD displays a confirmation screen. Press START/STOP button once again to start COOL mode operation. LED color changes from orange to green.

  • Page 27: Heat Mode Operation

    OPERATION (cont.) Heat Mode Operation 1. If the unit is in standby mode, simply press MODE button until “HEAT” appears, then press START/STOP button. LCD displays a confirmation screen. Press START/STOP button once again to start HEAT mode operation. LED color changes from orange to green.

  • Page 28: Fan Only Mode Operation

    OPERATION (cont.) Fan Only Mode Operation 1. If the unit is in standby mode, simply press MODE button until “FAN ONLY” appears, then press START/STOP button. LCD displays a confirmation screen. Press START/STOP button once again to start FAN ONLY mode operation.

  • Page 29: Menu Features

    OPERATION (cont.) Menu Features The Climate Pro 12 has an on-screen Menu feature to easily change the setting by using buttons on the control panel. Features in Menu are limited when accessed during operation due to safety reason. All features in Menu are accessible in standby mode.

  • Page 30: Fan Mode Control

    OPERATION (cont.) Fan Mode Control The fan mode control determines whether the fan continues to operate or stop when the room temperature reached the set point temperature. The unit has been preset at the factory for continuous fan operation. 1. Press MENU/ESC button to go to MENU. Note: If no button is pressed for 1 minute, LCD displays the previous mode.

  • Page 31: Changing Temperature Scale

    OPERATION (cont.) Changing Temperature Scale 1. Press MENU/ESC button to go to MENU. Note: If no button is pressed for 1 minute, LCD displays the previous mode. 2. Use TEMP+ or -TEMP button to select TEMP. SCALE and press ENTER button to confirm. ILL00811-00 3.

  • Page 32: Program Operation And Schedule

    OPERATION (cont.) Program Operation and Schedule Setting Program 1. Press MENU/ESC button to go to MENU. Note: If no button is pressed for 1 minute, LCD displays the previous mode. 2. Use TEMP+ or -TEMP button to select PROGRAM OPERATION and press ENTER button to confirm.

  • Page 33: Viewing Program

    OPERATION (cont.) Program Operation and Schedule (cont.) Viewing Program 1. Press MENU/ESC button to go to MENU. Note: If no button is pressed for 1 minute, LCD displays the previous mode. 2. Use TEMP+ or -TEMP button to select PROGRAM OPERATION and press ENTER button to confirm.

  • Page 34: Clearing Each Program Slot

    OPERATION (cont.) Program Operation and Schedule (cont.) Clearing Each Program Slot This feature clears each set program slot and its content returns to the default value. 1. Press MENU/ESC button to go to MENU. Note: If no button is pressed for 1 minute, LCD displays the previous mode.

  • Page 35: Starting Program Operation

    OPERATION (cont.) Program Operation and Schedule (cont.) Starting Program Operation This feature starts unit operation according to the preset program slots. 1. Press MENU/ESC button to go to MENU. Note: If no button is pressed for 1 minute, LCD displays the previous mode. 2.

  • Page 36: Stopping Program Operation

    OPERATION (cont.) Program Operation and Schedule (cont.) Stopping Program Operation 1. Press and hold MENU/ESC button for 5 seconds to unlock other buttons. After unlocked, if the unit was in standby mode, LCD only shows room temperature and “Press MENU to continue”. Note: If no button is pressed for 1 minute, LCD screen displays the previous mode.

  • Page 37: Self-Diagnostic Codes

    OPERATION (cont.) Self-Diagnostic Codes The Climate Pro 12 has an on-screen self-diagnostic feature that provides a quick and easy way to troubleshoot issues within the unit. The LCD screen displays self- diagnostic codes with backlight in orange color to easily distinguish from normal operation conditions.
  • Page 38 OPERATION (cont.) Self-Diagnostic Codes (cont.) Self-Diagnostic Codes - Table 2 Code Condition LCD Dispaly and Description Optional condensate pump error ILL00833-00 Cooling or heating function failure ILL00834-00 RTS thermistor failure ILL00835-00 ODS thermistor failure ILL00836-00...
  • Page 39 OPERATION (cont.) Self-Diagnostic Codes (cont.) Self-Diagnostic Codes - Table 3 Code Condition LCD Dispaly and Description CTS1 thermistor failure ILL00837-00 CTS2 thermistor failure ILL00838-00 CTS3 thermistor failure ILL00839-00...

  • Page 40: Emptying The Drain Tank

    OPERATION (cont.) Emptying the Drain Tank During COOL or HEAT mode, the condensate water accumulates in the drain tank. When the drain tank becomes full, the LCD displays self-diagnostic code “FL” with backlight in orange color and the unit turns off automatically. Note: To empty the drain tank while the unit is in operation, press START/STOP button to turn the unit off.

  • Page 41: Condensate Pump Kit (Optional Accessory)

    OPERATION (cont.) Condensate Pump Kit (Optional Accessory) The condensate pump kit is available to allow continuous unit operation and eliminate the need for emptying the drain tank. When the water collects to level A in the pump reservoir, the condensate pump automatically discharges the water.

  • Page 42: Daily Maintenance

    DAILY MAINTENANCE Emptying the Drain Tank See “Emptying the Drain Tank” section. Air Filter Maintenance Clean the air filters once a week if the unit is used in a dusty environment. Note: The dirty air filters can reduce air output resulting in a decreased cooling or heating capacity.

  • Page 43: Seasonal Maintenance

    2. Check the power cord. If dirty, wipe off with a clean dry cloth. If damage or excess play is found, contact your MovinCool dealer for replacement. 3. Check the air filters and clean if dirty. If damage is found, replace it.

  • Page 44: Troubleshooting

    2. Place the tank back in the unit. 3. Press START/STOP button to start. If conditions persist after the above remedies have been taken, turn the unit off, unplug the power cord from the power supply outlet, and contact your MovinCool dealer or a qualified technician.
  • Page 45 Wait until defrost control is defrost control. completed. If conditions persist after the above remedies have been taken, turn the unit off, unplug the power cord from the power supply outlet, and contact your MovinCool dealer or a qualified technician.
  • Page 46 COOL mode. If conditions persist after the above remedies have been taken, turn the unit off, unplug the power cord from the power supply outlet, and contact your MovinCool dealer or a qualified technician.

  • Page 47: Technical Specifications

    TECHNICAL SPECIFICATIONS Technical Specifications - Table 1 Item Specifications Electronic Features Operation Digital Programmable Electrical Characteristics Voltage Requirement 115 V, 1 Phase, 60 Hz Operating Max. 127 V Voltage Range Min. 104 V Recommended Fuse Size 15 A Cooling, Heating Capacity and Power Consumption Cooling Performance Total Cooling Capacity 10,200 Btu/h (2,980 W)
  • Page 48 TECHNICAL SPECIFICATIONS (cont.) Technical Specifications - Table 2 Item Specifications Net Weight 196 lb (89 kg) Drain Tank Capacity 5.0 gal (19 L) Cooling Inlet Air Max. 95 °F (35 °C), 60 %RH Operating Condition Range Temperature Min. 65 °F (18 °C), 50 %RH Heating Without duct Max.

  • Page 49: Warranty Statement

    WARRANTY STATEMENT DENSO PRODUCTS AND SERVICES AMERICAS, INC. ("DENSO") warrants its MOVINCOOL Products only to the extent stated in its official written warranties. Unless otherwise specifically provided in writing by DENSO, DENSO warrants to the original end-user that the products shall be free of defects in materials or workmanship and will function in...
  • Page 50 P/N: 484007-4090EN First Issue: September 2015...
