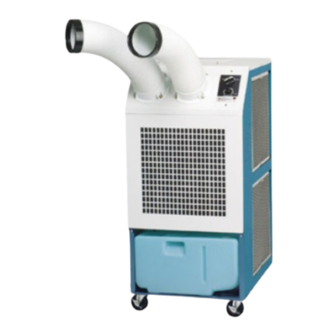

Movincool Classic Plus 26 Quick Start Manual

QUICK START GUIDE

Refer to the operation manual and pay attention to all the warnings and cautions throughout the manual

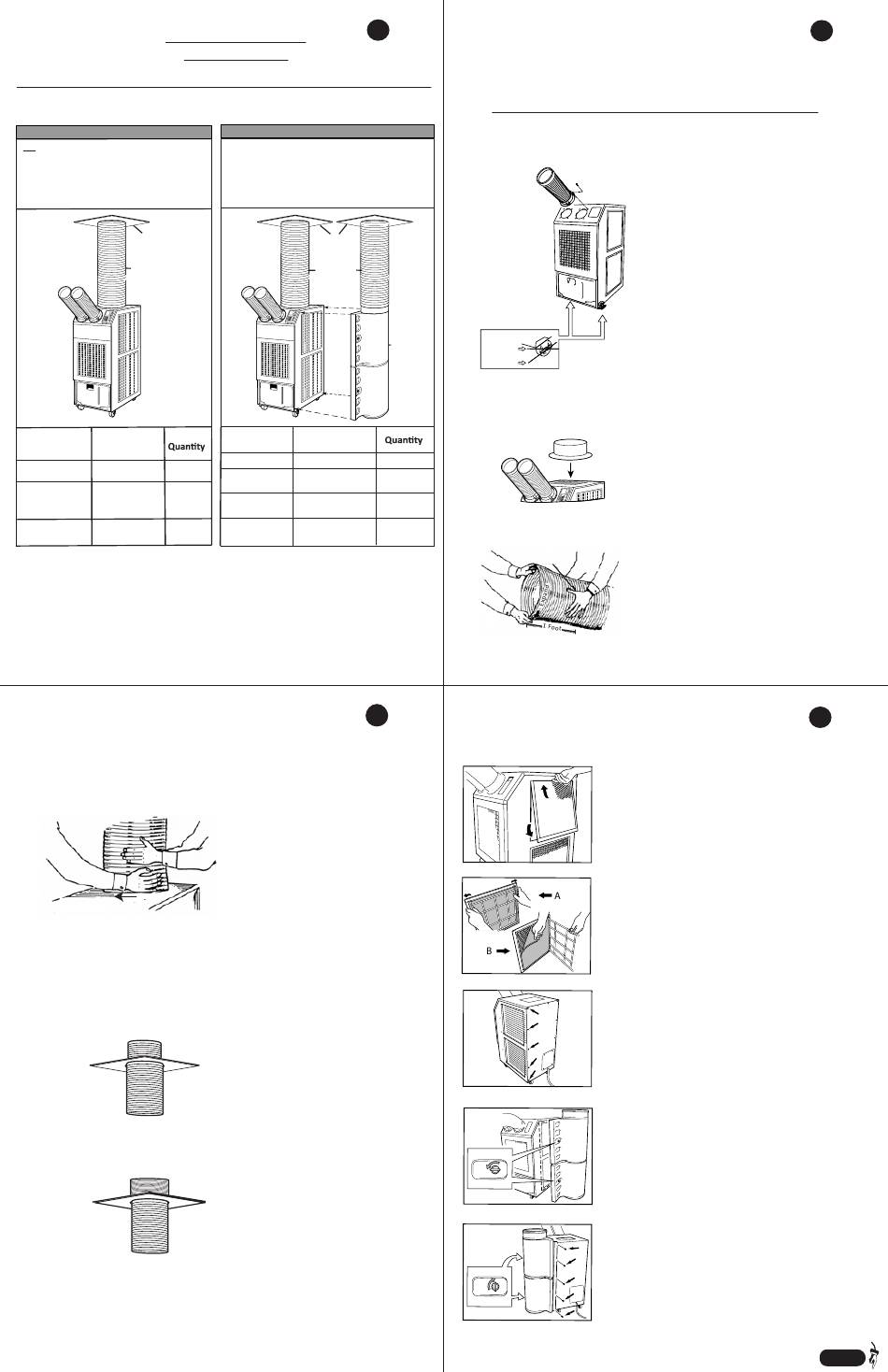

Typical Installation Options
CONDITION TO USE OPTION 1
No negative air pressure** in the room
and the temperature of the infiltrated
air is below the room temperature.
Operating temperature Range:
Between 70
°F (21 °C) to 113 °F (45 °C)
Ceiling Tile
Self Supported Duct
Accessory
Part Number
Name*
Ceiling Tile LA146373-8280 1
Self Supported
481744-0060 1
Duct
Warm Air
481170-0191 1
Flange Kit
*Accessories Sold Separately
NOTE:
• Ensure that the warm air moves away from the ceiling and the heat is dissipated.
If your application does not meet this requirement, then extend the duct to the nearest
exhaust point based on the Maximum Equivalent Length listed in the operation manual.
**The combination of the following could create negative air pressure:
-
MovinCool unit is installed and runs using OPTION 1.
-
Door to the room is closed.
-
No other source of air entering the room.
3) Place the duct over the flange on the top of the unit (see figure below).
4) Again hold the duct firmly, about 1 ft away from the end over the flange
(see figure below).
5) Rotate the duct end counterclockwise until the diameter reduces to an
appropriate size (see figure below).
Shrink
• Warm air duct attachment to the ceiling tile:
1) Holding the other end of the duct firmly about 1 ft away from the end, rotate the
end of the duct counterclockwise to decrease the diameter of the duct enough
to pass through the 12" hole in the ceiling tile.
2) Pass the duct through the 12" hole on the ceiling tile (see figure below).
3) Repeat the step number 1) but this time rotate the end of the duct in clockwise
directions until duct diameter increases enough to lock inside the ceiling tile (see
figure below).
• Removal of original ceiling tile:
Remove the original selected ceiling tile from the ceiling (if the tile is 2' x 4', then cut
the tile into 2' x 2' and place one piece back into the ceiling at the end).
• Installation of the ceiling tile with the duct:
Place the ceiling tile (with the duct) inside the ceiling.
Classic Plus 26
CONDITION TO USE OPTION 2
Negative air pressure** in the room.
Operating temperature Range:
Between 70
°F (21 °C) to 113 °F (45 °C)
Ceiling Tile
Self
Supported
Duct
Accessory
Part Number
Name*
Ceiling Tile
LA146373-8280
Self Supported
481744-0060
Duct
Condenser Air
LAY84270-0030
Plenum
Warm Air
481170-0191
Flange Kit
1
NOTE: Refer to the operation manual for details on choosing the installation site
A) Roll the unit into the space that needs cooling
• Moving the unit and installation of cold air outlet ducts:
Condenser
Air
Unlocked
Plenum
Locked
B) OPTION 1 set up steps
• Warm air flange attachment to the unit:
2
2
1
• Warm air duct attachment to the unit:
1
Hold Here
3
C) OPTION 2 set up steps
• Condenser Air Plenum Installation:
1) Unlock the casters and move the MovinCool
unit to a flat, level surface and set the casters
back to the LOCKED position.
2) Install each cool air outlet duct using 4 screws
each as shown.
(2 cool air outlet ducts included with the unit).
1) Attach the warm air flange using the screws
included with it.
1) Hold the duct firmly, about 1 ft away from the
end.
2) Rotate the end of the duct clockwise to increase
the duct diameter (see figure). This procedure
usually takes 2 people.
1) Remove both of the filter frame assemblies from
the condenser side panel by lifting them up and tilting
outward at the bottom as indicated by the arrows above.
2) Remove the filter elements from the filter frames
by pressing outward on the re-tainer at the indicated
points (A), then, opening the retainer (B).
(Save the filter frames for future use).
3) Temporairly remove the five (5) screws from the left side
of the rear panel.
(Save the screws for step 5 below).
4) Turn the latches of the Air Plenum counterclockwise
until they stop. Place the Air Plenum over the
condenser openings and align the hinge/bracket
assembly mounting holes with the respective screw
holes on the back of the unit.
5) For ease of installation, turn the latches to the full clock-
wise position. (This will hold the front part of the Plenum
onto the unit). Attach the hinge/bracket of the
Air Plenum to the rear of the unit using the original
five (5) screws that were temporarily removed in step 3.
2
4
.
NEXT PAGE
