Instruction Manual
D103409X012
Key Description

I/P Converter Assembly

(see figure 8‐2 and 8‐4)
DVC6200 and DVC6205
23 Cap Screw, hex socket, SST
(1)(3)(5)
39* O‐ring
(5)
41 I/P Converter
(5)(8)
169 Shroud (see figure 7‐4)
(1)(5)
210* Boot, nitrile (2 req'd) (see figure 7‐4)
(1)(3)(5)
231* Seal Screen
Relay (see figure 8‐2 and 8‐4)
DVC6200 and DVC6205
24* Relay Assembly, (includes shroud, relay seal, mounting screws)
Standard (nitrile elastomers)
Standard Bleed
Housing A (used for GX actuator)
Single‐/acting direct (relay C)
Single‐acting reverse (relay B)
Housing B (used for all actuators except GX)
Single‐acting direct (relay C)
Double‐acting (relay A)
Single‐acting reverse (relay B)
Low Bleed
Housing A (used for GX actuator)
Single‐acting direct (relay C)
Single‐acting reverse (relay B)
Housing B (used for all actuators except G)
Single‐acting direct (relay C)
Double‐acting (relay A)
Single‐acting reverse (relay B)
Extreme Temperature option (fluorosilicone elastomers)
Standard Bleed
Single‐acting direct (relay C)
Double‐acting (relay A)
Single‐acting reverse (relay B)
Low Bleed
Single‐acting direct (relay C)
Double‐acting (relay A)
Single‐acting reverse (relay B)
*Recommended spare parts
1. Available in the Elastomer Spare Parts Kit
2. Available in the Small Hardware Spare Parts Kit
3. Available in the Seal Screen Kit
4. Available in the Terminal Box Kit
5. Available in the I/P Converter Kit
8. Available in the Spare Shroud Kit
Part Number
(2)(8)
(4 req'd)
38B5786X182
38B5786X172
38B5786X132
38B5786X052
38B5786X092
38B5786X202
38B5786X192
38B5786X152
38B5786X072
38B5786X112
38B5786X142
38B5786X032
38B5786X102
38B5786X162
38B5786X082
38B5786X122

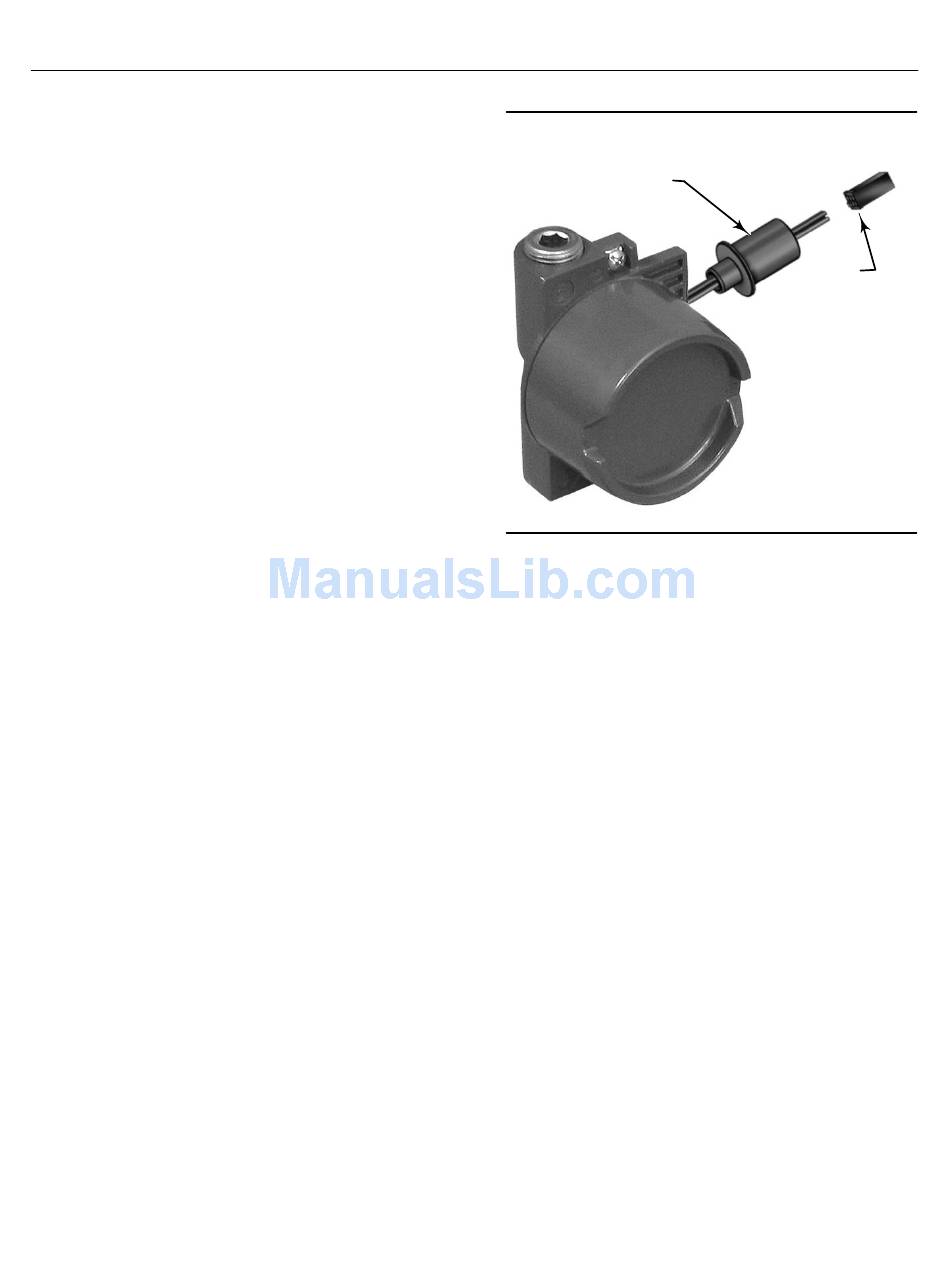

Figure 8‐1. Terminal Box of Natural Gas Certified
FIELDVUE DVC6200 Digital Valve Controller
GAS‐BLOCKING
PRESS‐FIT ADAPTOR
W9922
Key Description
Loop Connections Terminal Box
(see figure 8‐2 and 8‐4)
DVC6200 and DVC6205
4 Terminal Box Cap
(1)(4)
34* O‐ring
(1)(4)
36* O‐ring
58 Set Screw, hex socket, SST
72 Cap Screw, hex socket, SST
164 Terminal Box Assembly
Feedback Connections Terminal
Box (see figure 8‐4)
DVC6205
4 Terminal Box Cap
(1)(4)
34* O‐ring
(1)(4)
36* O‐ring
58 Set Screw, hex socket, SST
62 Pipe Plug, hex hd, SST
262 Adapter
263* O-ring
Standard
Extreme temperature option, (fluorosilicone)
Parts
May 2013
WIRING
CONNECTOR
Part Number
(2)
(2)
(2)
1F463606992
1F4636X0092
115
