Chapter 2: Installing the Server in a Rack

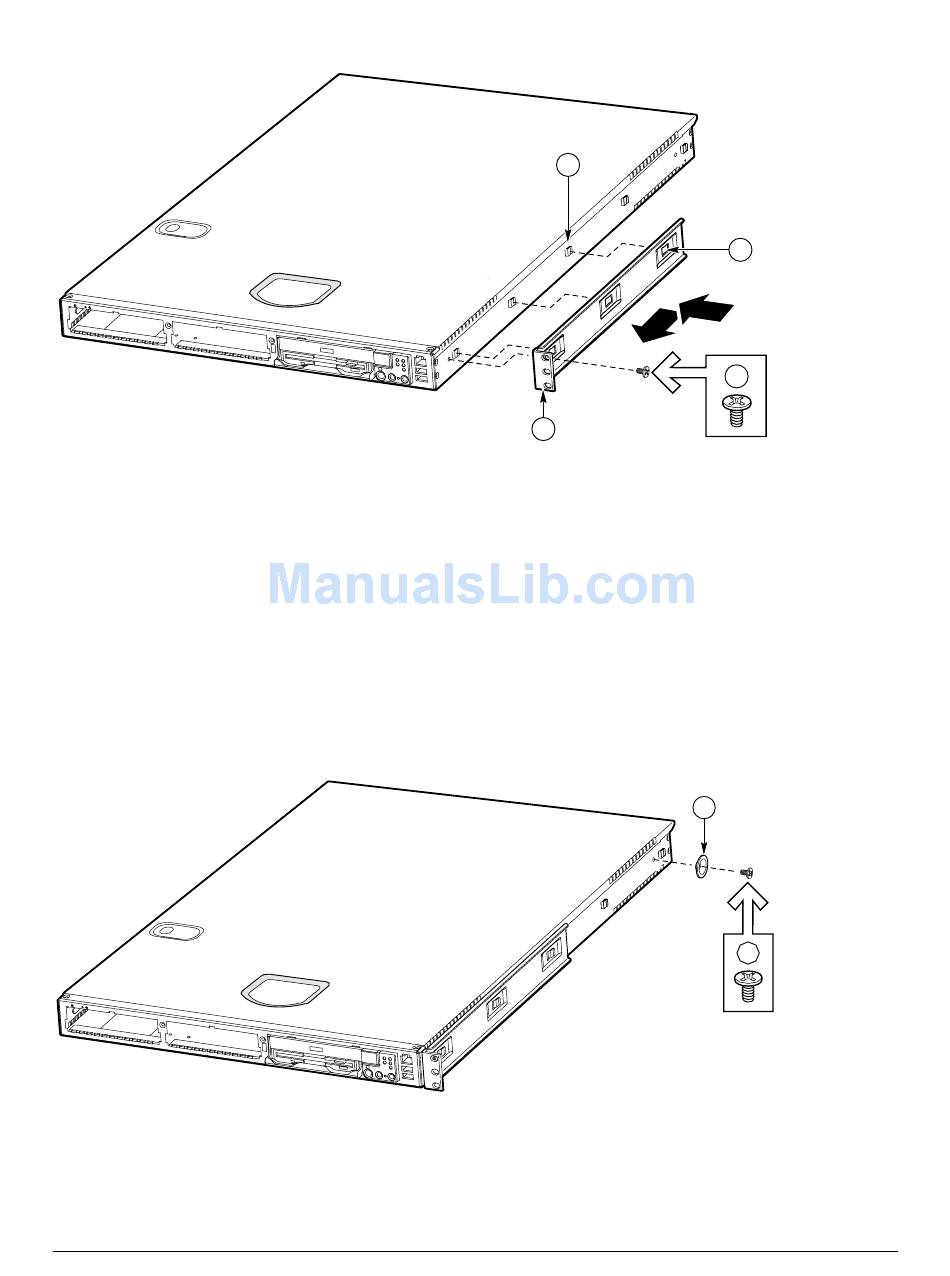

Figure 4. Installing a Chassis Bracket in the Front-mount Position
A. Chassis bracket in front-mount position
B. Bracket holes
C. Chassis tabs
D. #6-32 x 3/16-inch screw

Attach Disks to Chassis

1. Place a chassis disk at the side of the chassis towards the rear (see Figure 5, A).
2. Install screw (B) and tighten.
3. In the same manner, attach a chassis disk to the opposite side of the chassis.
Figure 5. Attaching a Chassis Disk to the Chassis
A. Chassis disk
B. #6-32 x 3/16-inch screw
2-6 User Guide—Sun Cobalt LX50 Server
