Plumbing Configurations - LAVAZZA Colibri Installation And Use Manual

LB3202 Colibri
Each customer is aware before delivery of requirements for plumbing and power. There are 2

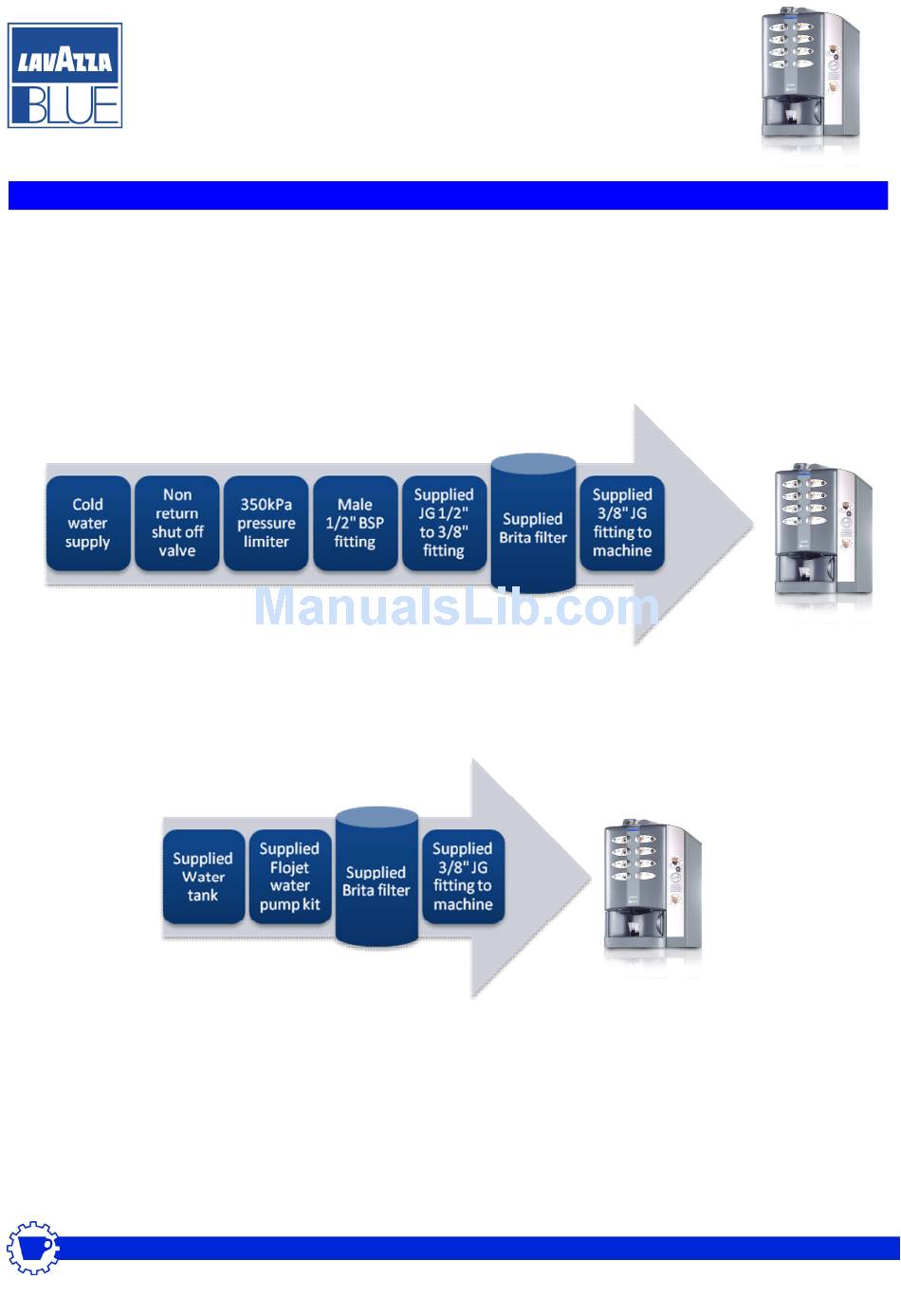

plumbing configurations, mains fill and tanked supply:
Locate all parts for your configuration as listed above. Connections between these components are
to be made using the blue John Guest water line included. 2m is supplied, cut to length as needed.
The 3/8" to 3/4" female fitting for the rear water connection to the machine will be packed in the
white envelope inside the machine or in the small grey drawer on the lower right inside of the ma-
chine. All other JG fittings are mounted ready for use.
