Summary of Contents for Gator ARV50T

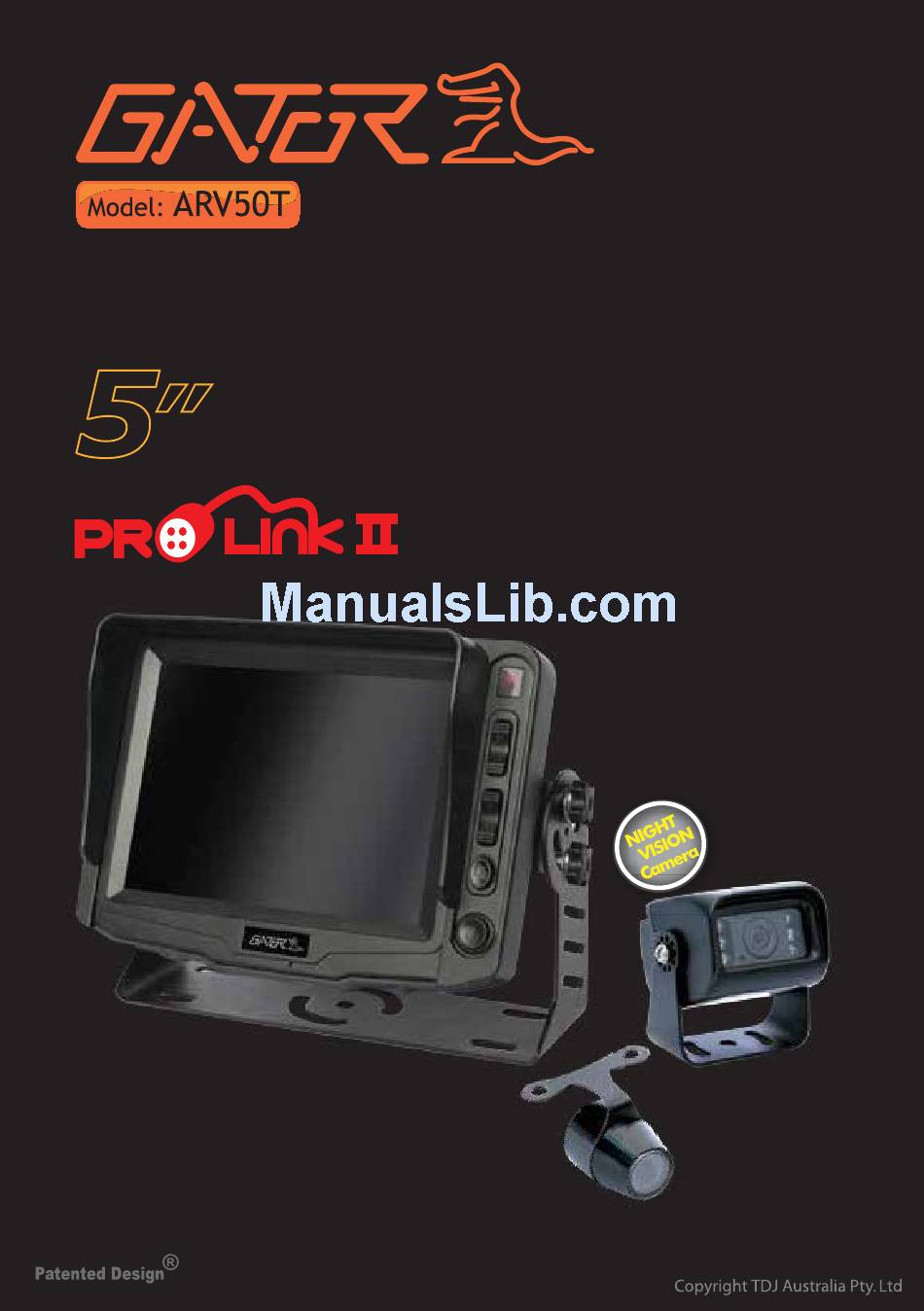

- Page 1 USER MANUAL REAR VIEW MONITOR+ ” REVERSING CAMERAS For caravans/Trucks/trailers...
- Page 3 MONITOR DETAILS: Sunshade Color LCD Screen Remote receiving window Volume Volume Menu Down Cam1/Cam2 Shift Power on/off Bracket CDS indicator Brightness inductive component is embedded, please do not block the hole. speaker Audio video singal output Radiation Hole Insert the AV connector into the output jack, Bracket Aid Steel Plate the video will be transferred to the other monitor, and at this moment the monitor...
-
Page 4: Menu Operation
MENU OPERATION:... - Page 5 MENU OPERATION:...
- Page 6 REMOTE CONTOL DETAILS: POWER t f i G N A A / 1...
-
Page 7: System Connection
SYSTEM CONNECTION: This Professional Reversing Camera System comes complete with The ARV50T is supplied with 2 cameras, extension cables and ailer adapter. This allows the user to have a complete rear reversing system for any hitched vehcles such as boat trailers, caravans, horse floats, handyman trailers etc. - Page 8 SYSTEM CONNECTION: This Kit allows for 3 cameras to be used...
- Page 9 INSTALLATION GUIDE: Option 1 Using the suction mounting bracke * Slide the flat end of the suction bracket into the slot behind the monitor as shown in the diagram on the right. * Choose a location to the right or left of your windscreen just above your dash where you can view the monitor but at the same time not obscure your forward view of the road.
- Page 10 INSTALLING THE TOW VEHICLE CAMERA Step 2. The camera is best mounted above the vehicles license plate. In some instances this may not always be possible and you may have to mount the camera in another location as in Fig. 4 ( below the license plate) or as shown in position in Fig.3 ( attached to the under side of the bumper bar just above the license plate.
- Page 11 INSTALLATION GUIDE: INSTALLING THE TRAILER EXTENSION CABLE The trailer extension cable will now have to be installed at the rear of the vehicle to allow for easy connection to the trailed vehicle preferably in the locations shown in the diagram below. The othe end of the trailer extension plug needs to pass through into the interior of the vehicle via 15 mm hole and a suitable sized rubber grommet if the trailer adapter is mounted on the tow bar (option 2) Option 1...
- Page 12 INSTALLATION GUIDE:...
- Page 13 INSTALLATION GUIDE: 5) Once the cable is in the boot area, run it to the location where the camera and the trailer harness is located near the tail light wiring. You will more than likely need to remove boot trims, so that the wires can be neatly concealed behind these panels. However in some cases you can bend these panels at the sides after removing pinch weld rubbers etc., and simply tuck them behind the panels without removing them completely.
- Page 14 INSTALLATION GUIDE: Connect To Acc Connect To Chassis Each camera has its own trigger cable, which can 3 Camera inputs be connected to the Reversing light of the vehicle Extra camera optional Camera Gimble Mount Camera 10M Ext...
-
Page 15: Installing The Camera
INSTALLATION GUIDE: Option 2 Option 1 Step 4 Installing the camera and trailer adapter cable in the trailed vehicle INSTALLING THE TRAILER ADAPTER 1) Install the trailer adapter cable in either of the positions as shown in the diagram 2) For option 1 drill a 23mm hole with a hole saw close to the yoke of the towed vehicle. -
Page 16: Testing The System
TESTING THE SYSTEM: 1. Engage the park brake and turn the ignition key to the ON position. DO NOT start the vehicle. 2. Select the reverse gear with the gear shift. The camera should broadcasting the image of the view behind the vehicle. 3. -
Page 17: Technical Assistance
Power Consumption: 0.5W External dimensions:LxWxH(152X110X23)mm Water Resistance: IP66 TECHNICAL ASSISTANCE: If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am –... - Page 18 Power Consumption: 0.5W External dimensions:LxWxH(152X110X23)mm Water Resistance: IP66 TECHNICAL ASSISTANCE: If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am –...
