OWC MERCURY ELITE PRO DUAL MINI Assembly Manual & User Manual page 10

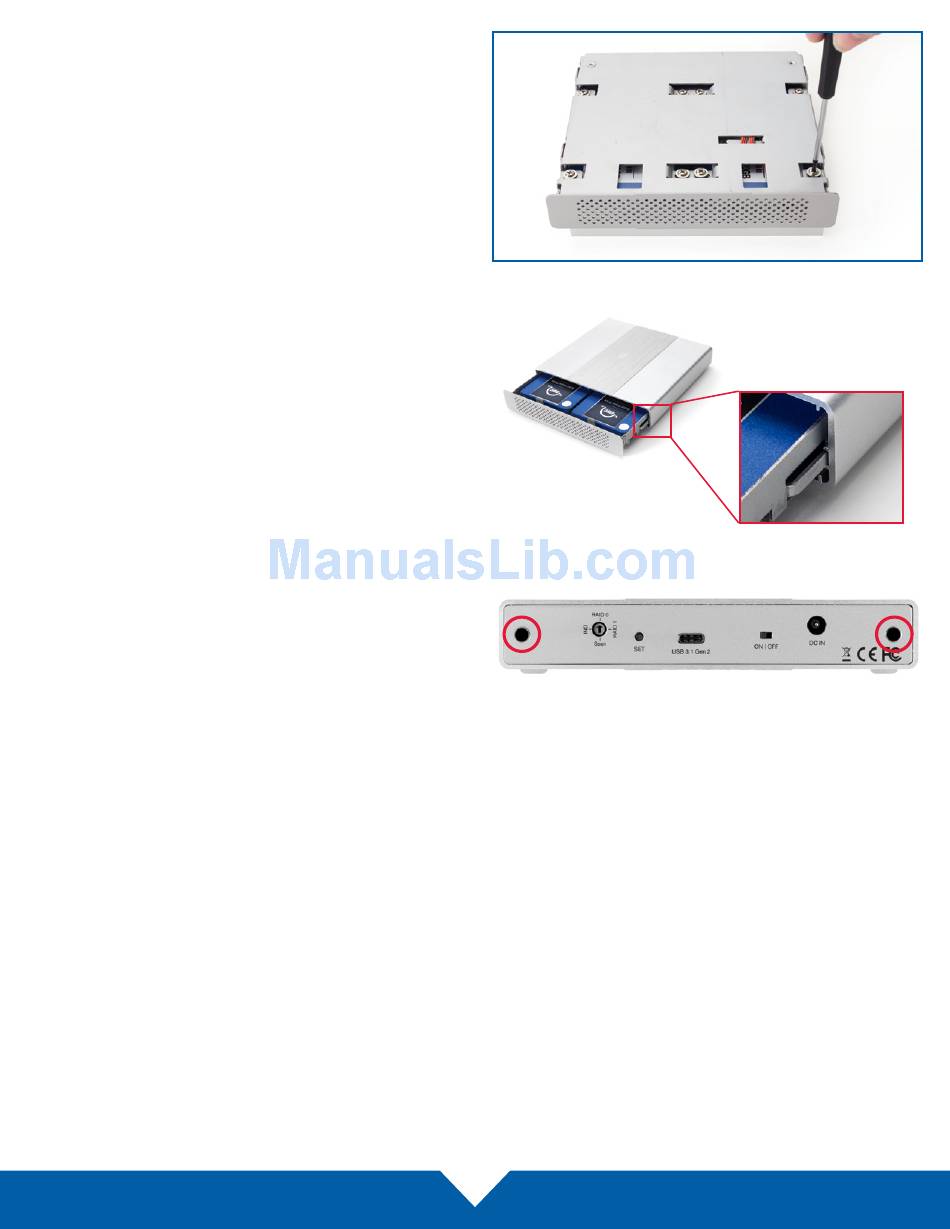

11. Turn the inner chassis over and set it on the outer
case as before, then fully tighten all eight screws
from Steps 8 and 9.
12. Set the inner chassis aside, turn the outer
enclosure over and orient it as shown at right.
Next, align the guides on the chassis with the
guide rails in the enclosure. Note that the rails
extend to the edge on only one side of the
enclosure. Slide the chassis in until the front grill
contacts the enclosure.
13. Pick up the rear cover, carefully align the cutouts
with the ports on the back of the inner chassis,
the re-affix the two screws.
This completes the assembly process.
OWC MERCURY ELITE PRO DUAL MINI
8
DEVICE SETUP
