Compass Model Odin90 Assembly Manual page 14

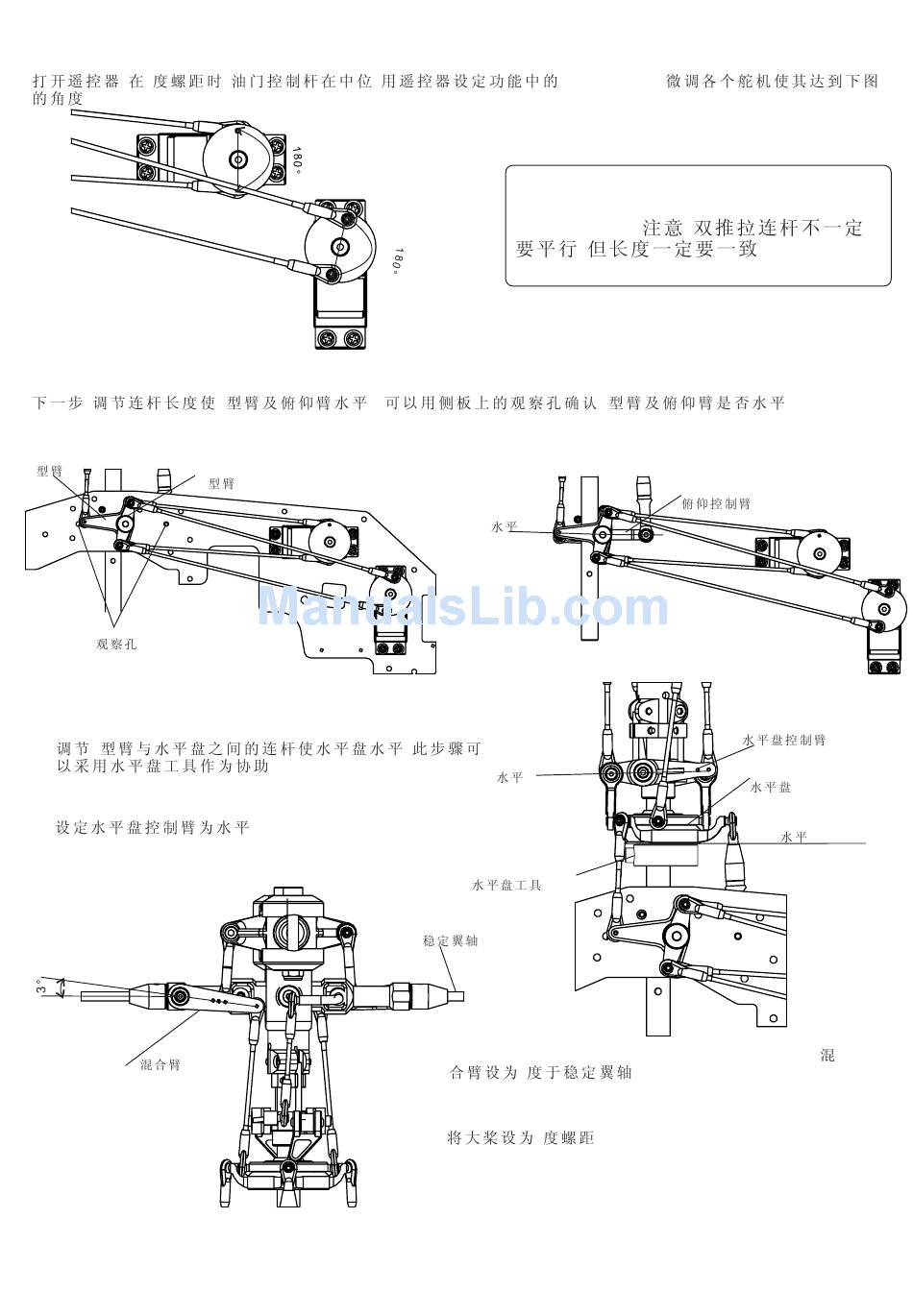

A) Turn on the radio, set throttle to middle position for 0 degree. Use the subtrim in radio program
to adjust all the servo to get control horn to the right angle.
, 0
。
B)Next is to adjust the link from servo to the T Arm and I Arm so that the T Arm is Horizontal and the
Inner Arm is Horizontal. Use the 2 Guide Holes on the frame to make sure the 2 Arms are Horizontal.
,
T A r m
T I A r m
I
G ui d e H o l es
c)Next adjust the links from T Arms to Swash Plate
to level Swash Plate. A compass Swash Plate Tool
can be applied here as a guide.
T
D)Set theWashout Arms horizontal.
Mixing Arm
, .
T .
.
.
Flybar
"
Note: The 2 Push-pull link rods are not
necessarily parallel, but must be the
same length.
Horizontal
.
Horizontal
06-0501 Swash Plate
Tool
E)Mixing Arm is set 3deg down to the flybar.
3
F) Install the main blade and set it to 0 deg pitch.
0
SUBTRIM"
:
,
T
Inn er A rm
Washout Arm
.
.
.
SwashPlate
Horizontal
