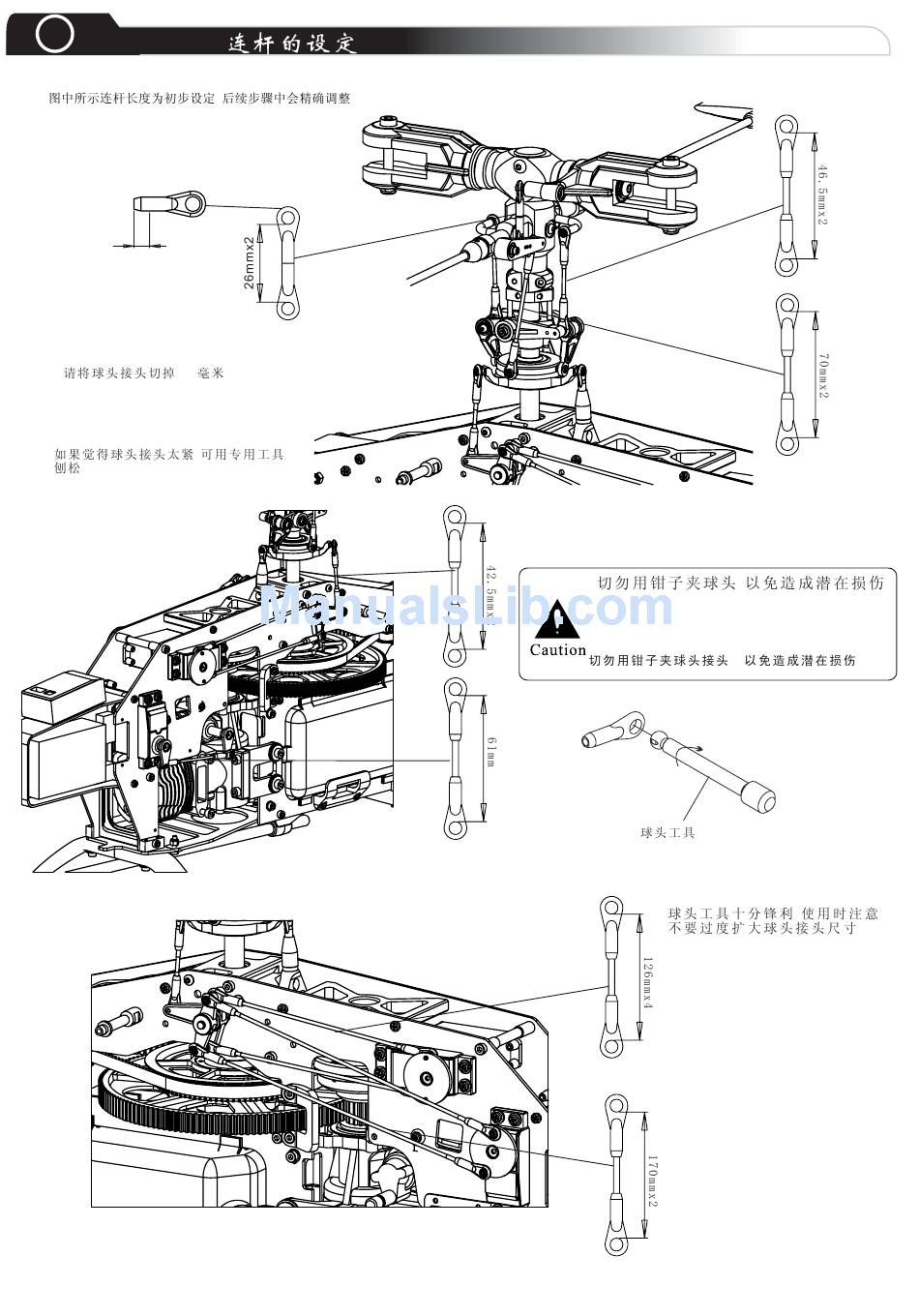

Linkage/
The following linkage lengths indications are basic values which could vary
depend on used servos. Some fine adjustments are still needed in following setup
steps.
4.5mm
Pl eas e c ut 4.5 mm fro m
ea ch bal l link s.
4.5
If you find the Balllinks are too tight
suggest use a Balllink sizing tool.
.
, .
.
,
,
Do not apply plier to resize Ba l l
Li nks. Pliers could caus e hid de n d a m a g e
to Ball Links and hence resu lt i n f a i l u r e
wh en op eration .
，
Ball Link Sizing Tool
Be aware that the Ball Link
Sizing Tool is very sharp.
Do not oversize the ball link.
。
,
.
