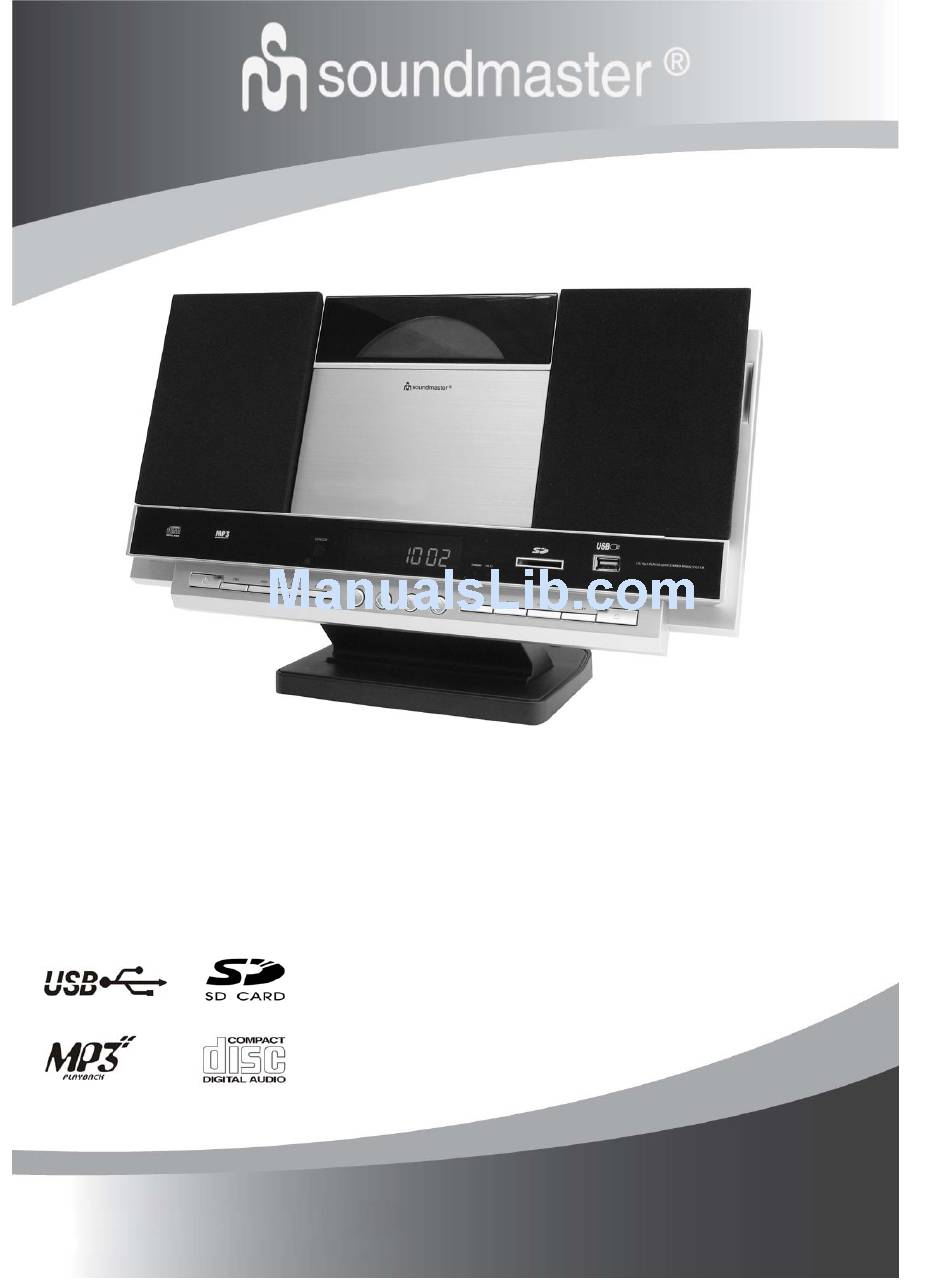

- Page 1 DEUTSCH ENGLISH FRANÇAIS NEDERLANDS DISC 4040...
- Page 2 ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.
- Page 3 WARNING 1. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus. 2.
- Page 4 WARNING TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : SHOCK HAZARD-DO NOT OPEN LIGHTNING FLASH WITH ARROWHEAD SYMBOL - EXCLAMATION POINT - within an equilateral triangle, within an equilateral triangle, is intended to alert the is used to indicate that a specific component shall be user to the presence of uninsulated dangerous...
-
Page 5: Safety Instructions
SAFETY INSTRUCTIONS 1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated. 2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference. 3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 4. -
Page 6: Location Of Control
LOCATION OF CONTROL 8 9 10 11 1. LCD DISPLAY 11. PLAY / PAUSE 21. BAND SELECTOR 2. REMOTE SENSOR 12. VOLUME + 22. TUNING CONTROL 3. STANDBY 13. MODE 23. BATTERY BACKUP 4. TIME 14. PROGRAM 24. AC CORD 5. -
Page 7: Remote Control
REMOTE CONTROL 1. STANDBY 2. STOP 3. SKIP + 4. PLAY/PAUSE 5. VOLUME - 6. SKIP - 7. MODE 8. OPEN/CLOSE 9. ALBUM + 10. VOLUME + BATTERY INSTALLATION Insert a “Cell” size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the remote control. -
Page 8: Radio Operation
RADIO OPERATION GENERAL OPERATION 1. Set the “FUNCTION” selector to “RADIO” mode. 2. Select desired band by using the “BAND” selector. 3. Adjust radio frequency to your desired station by using the “TUNING” control. 4. Adjust the “VOLUME” control to the desired level. FM / FM-STEREO RECEPTION - Set the “BAND”... - Page 9 CD / MP3 OPERATION GENERAL OPERATION PLAY / PAUSE Press to start playing CD / MP3 disc. Press again to stop playing CD / MP3 operation temporarily. Press again to resume playback. SKIP + & Press to go to the next track or back to the previous track. SKIP - Press and hold while playing until you find the point of the sound.
- Page 10 CD / MP3 OPERATION PROGRAM Be sure to press the “STOP” button before use. 1. Press the “PROGRAM” button, the display will show “P01” and flash. 2. Select desired track by using the “SKIP +” or “SKIP -” button. ( You may select a desired album by pressing “ALBUM +”...
-
Page 11: Usb / Sd Operation
USB / SD OPERATION GENERAL OPERATION PLAY / PAUSE Press to start playing tracks from the USB / SD card. Press again to stop playing USB / SD operation temporarily. Press again to resume playback. SKIP + & Press to go to the next track or back to the previous track. SKIP - Press and hold while playing until you find the point of the sound. -
Page 12: Cleaning And Maintenance
Check the disc for Check the disc for playback. fingerprints, dirt or fingerprints, dirt or scratches. scratches. TECHNICAL DATA Model:........DISC 4040 Power supply:.......230V~50Hz Power consumption:.... 21W Radio section: Frequency ranges....UKW / FM 87.5 ~ 108.0 MHz ....MW / AM 540 ~ 1600 KHz...
