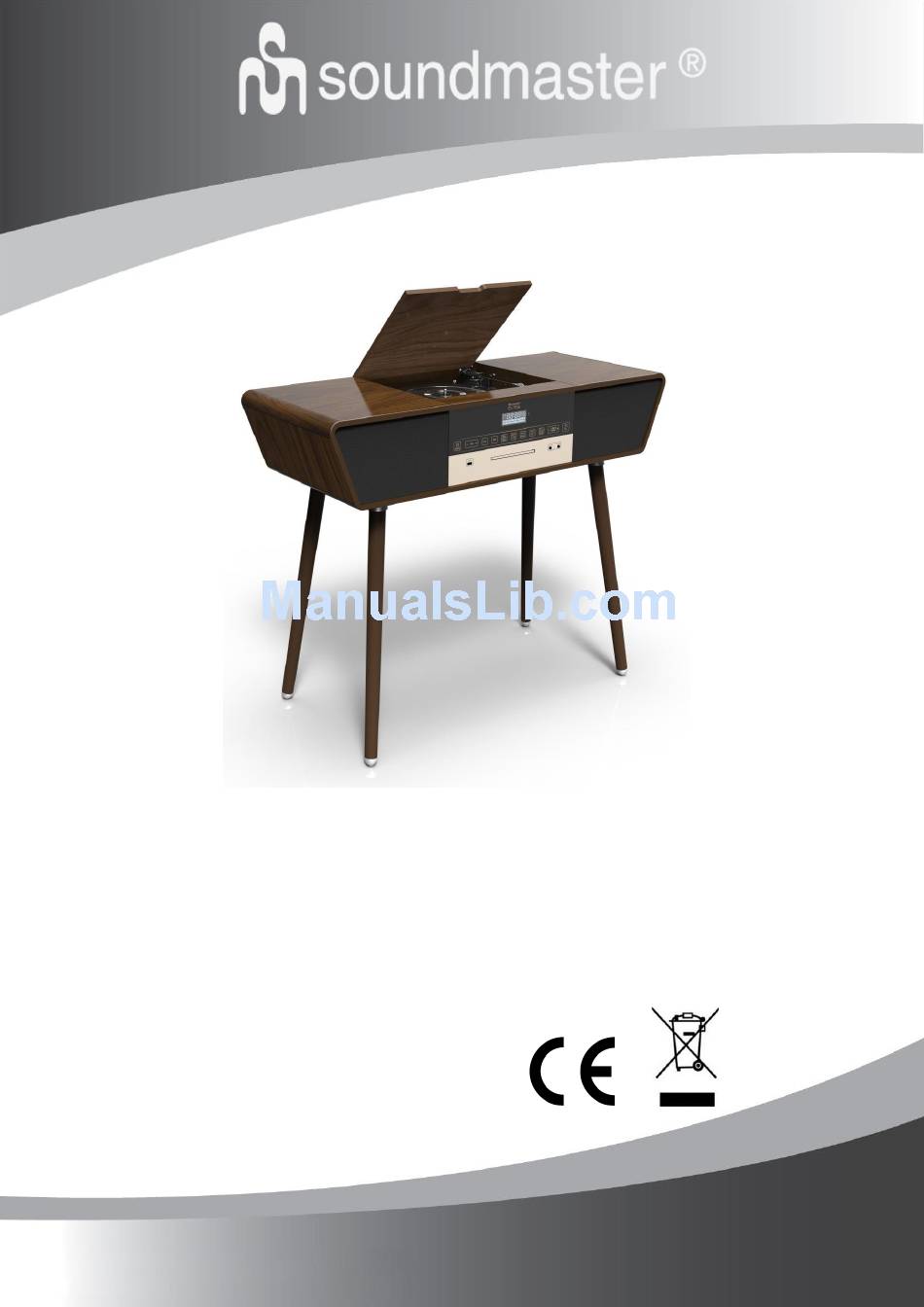

- Page 1 DEUTSCH ITALIANO ENGLISH NORSK FRANÇAIS SVENSKA NEDERLANDS DANSK Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. info@woerlein.com GERMANY Web: www.woerlein.com NR995...
-
Page 2: Environmental Protection
Safety, Environmental and Setup Instructions Use the device in dry indoor environments only. ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household Protect the device from humidity. waste at the end of its life cycle. Return it to a collection ... -
Page 3: Preparation For Use
NR995 / English Instruction Manual PREPARATION FOR USE UNPACKING AND SET UP Carefully remove the unit from the display carton TRANSIT SCREW and remove all packing material from the unit. Unwind the AC power cord and extend it to its full length. -
Page 4: Locations Of Controls
NR995 / English Instruction Manual LOCATIONS OF CONTROLS FRONT PANEL 1. Phonograph Lid 12. DN F-R / SCAN Button 2. Phonograph Lid Support Bracket 13. UP F-F / PRESET Button 3. Speakers 14. STOP Button 4. Unit Leg 15. PLAY.PAUSE/ENTER Button - MODE Button 16. -
Page 5: Remote Control
NR995 / English Instruction Manual REMOTE CONTROL 26. RECORD Open Close 28. EQ Sound settings 29. DN - Track backwards 30. P.MODE – Repeat / Random 31. VOL – Volume - 32. TUNER/MENU – Tuning/Menu down 33. SCAN 34. INFO Information Power On/Off 36. -
Page 6: Getting Started
NR995 / English Instruction Manual GETTING STARTED POWER SOURCE This system is designed to operate on normal 230V 50Hz AC only. Attempting to operate from any other power source may cause damage to the system, and such damage is not covered by your warranty. -
Page 7: Radio Operation
NR995 / English Instruction Manual RADIO OPERATION Turn on the system and set the volume to a low level. Press „MODE” button to enter into FM mode. Connect the FM/DAB antenna onto the 75 ohm socket at the back of the unit, press the “SCAN”... -
Page 8: Factory Reset
NR995 / English Instruction Manual FACTORY RESET In the standby mode, press “DN F-R / SCAN” button one time, and press and hold “PLAY/PAUSE ENTER” button 2 seconds, ‘System reset Please wait’ will show on the display, keep wait to see ‘System reset Ok’ on the display which means the factory reset is successfully. -
Page 9: Track Skip And High Speed Track Search In Cd / Usb Mode
/ MODE” button to select the Bluetooth mode. ® Select from your portable device (Smartphone, Tablet...) the ID Bluetooth tagged as ‘NR995’, then confirm connection. Now you can transfer the music to NR995 and all operations can only be operated from your mobile device. -
Page 10: Turntable Operation
NR995 / English Instruction Manual TURNTABLE OPERATION IMPROTANT TO AVOID DAMAGING THE CABINET OR THE PHONO LID, NEVER FORCE THE LID CLOSED. ALWAYS RAISE THE LID TO RELEASE THE LID SUPPORT BRACKET. DOOR SUPPORT BRACKET, PULL FORWARD TO RELEASE AND LOWER DOOR. -
Page 11: Usb Recording
NR995 / English Instruction Manual USB RECORDING 1. CD RECORDING Plug USB drive into USB socket. During the playing mode, press the “RECORD” button one time, ‘REC-1’ will show on the display to confirm to choose record the playing track. -
Page 12: Aux In Operation
/ MODE” button to select the AUX IN mode. Insert the audio cable (not included) into the matching ‘AUX IN’ socket of the unit (NR995). Start the playback of the connected device and you can hear the sound in NR995. -
Page 13: Time And Date
NR995 / English Instruction Manual SETTINGS Language Setting During FM or DAB playing mode, press “MENU” button and then press “TUNER- MENU +” or “TUNER MENU –“ to choose ‘SYSTEM’ , press “ENTER” button to confirm. Press “TUNER MENU +” or “TUNER MENU –“ to choose ‘Language’ and press “ENTER” to confirm enter into “LANGUAGE”... - Page 14 Hiermit bestätigt Wörlein GmbH, dass sich dieses Gerät Härmed Wörlein GmbH deklarerar att denna enhet är i Übereinstimmung grundlegenden överensstämmelse med de grundläggande kraven och Anforderungen übrigen einschlägigen andra relevanta bestämmelser i direktiv 2014/53/EU. Bestimmungen der Richtlinie 2014/53/EU befindet. En kopia av försäkran om överensstämmelse kan erhållas Eine Kopie der Konformitätserklärung kann unter på...
