Summary of Contents for SOUNDMASTER highline DAB100

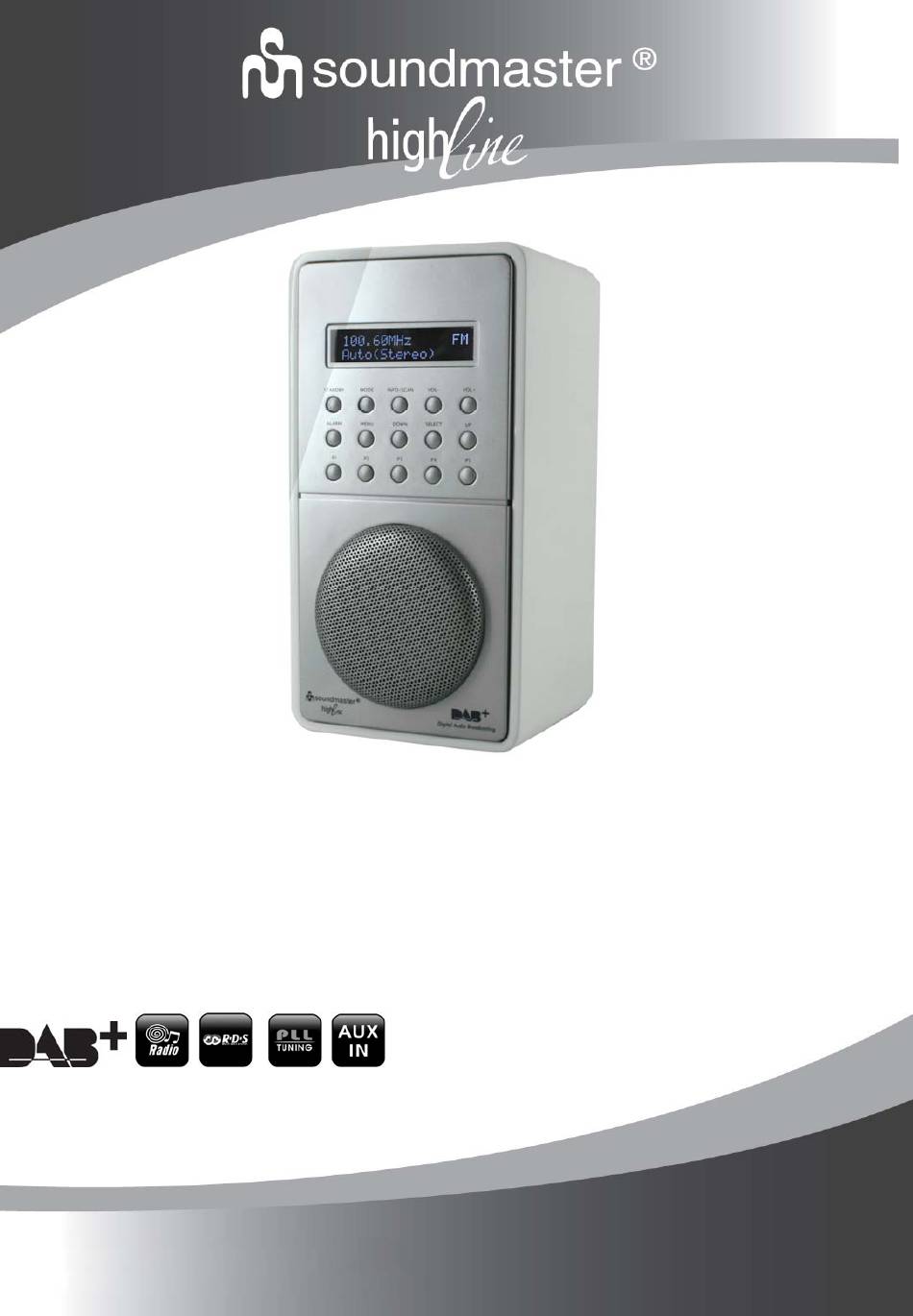

- Page 1 DEUTSCH ESPAÑOL ENGLISH PORTUGUÊS FRANÇAIS NORSK NEDERLANDS DAB100...
-
Page 2: Environmental Protection
ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging. -
Page 3: Location Of Controls And Indicators
DAB100 / English Manual LOCATION OF CONTROLS AND INDICATORS Diagram of Back and Front Panel. FRONT PANEL 1. LCD DISPLAY - Full dot matrix LCD display with black backlight. 2. INFO/SCAN - (DAB) Long press and hold the “INFO/SCAN” button for 2 seconds to scan full all the DAB ensembles - (FM) Long press and hold the “INFO/SCAN”... -
Page 4: Back Panel
DAB100 / English Manual (DAB) Cycle through the available station, push “SELECT” button to confirm selection and start the DAB broadcast. (FM) Manual tune FM frequency, push “UP”/”DOWN” button step by step to select the active frequency range. (All setting modes) Press and hold “UP”/”DOWN” button to the next available station. -
Page 5: No Stations Available
DAB100 / English Manual OPERATING INSTRUCTIONS GETTING STARTED – DAB OPERATION Carefully extend the adjustable antenna Switch ‘ON’ the ‘Battery’ switch to connect to the batteries power. The LCD display will display a greeting “WELCOME TO DIGITAL RADIO” for few seconds, and then perform a DAB full scanning. -
Page 6: Manual Dab Tuning
DAB100 / English Manual MANUAL DAB TUNING The Manual DAB Tuning allows you Determine the best position of antenna and the best radio reception for the Manual Tune unit. Tune directly to the various DAB Channels under a best possible signal <5A 174.928MHz>... -
Page 7: Software Version
DAB100 / English Manual DAB DISPLAY MODE DAB display mode allows you to view different information of the broadcast data. The second line of text on the LCD display will show any one of the followings six information: Press ‘INFO/SCAN’ button and cycle through the information displayed on the bottom line of the LCD display. Ensemble name: The name of the ensemble (Channel number) in which the current service is found. -
Page 8: Time Update
DAB100 / English Manual select OFF to cancel the sleep timer. TIME UPDATE Set the TIME Auto Update from either DAB/FM mode or NO UPDATE. Time Update Press ‘MENU’ button to choose TIME UPDATE, press ‘SELECT’ button Press ‘UP’/’DOWN’ button to choose the mode source DAB/FM/NO UPDATE and press Auto Update ‘SELECT’... -
Page 9: Standby Button
DAB100 / English Manual FM TUNING You can MANUALLY TUNE or AUTO-TUNE to a FM station. 96.65 Press ‘UP’ / ‘DOWN’ buttons to manually tune the FM frequencies step by step. Press and hold ‘INFO/SCAN’ button to start the AUTO-TUEN and SCAN to next Auto (Mono) available station with good signal. -
Page 10: Specifications
DAB100 / English Manual FM – It will return to default radio frequence 87.50MHz. MENU System Reset... 87.50 87.50 90.30 MHz System Reset Auto(Mono) SPECIFICATIONS Digital Audio Broadcasting (DAB+) Band III Quick Scan: 10A 209-936 MHz to 13F 239.200MHz Full Scan: 5A 174.928 MHz to 13F 239.200MHz FM Frequency FM 87.50MHz –...
