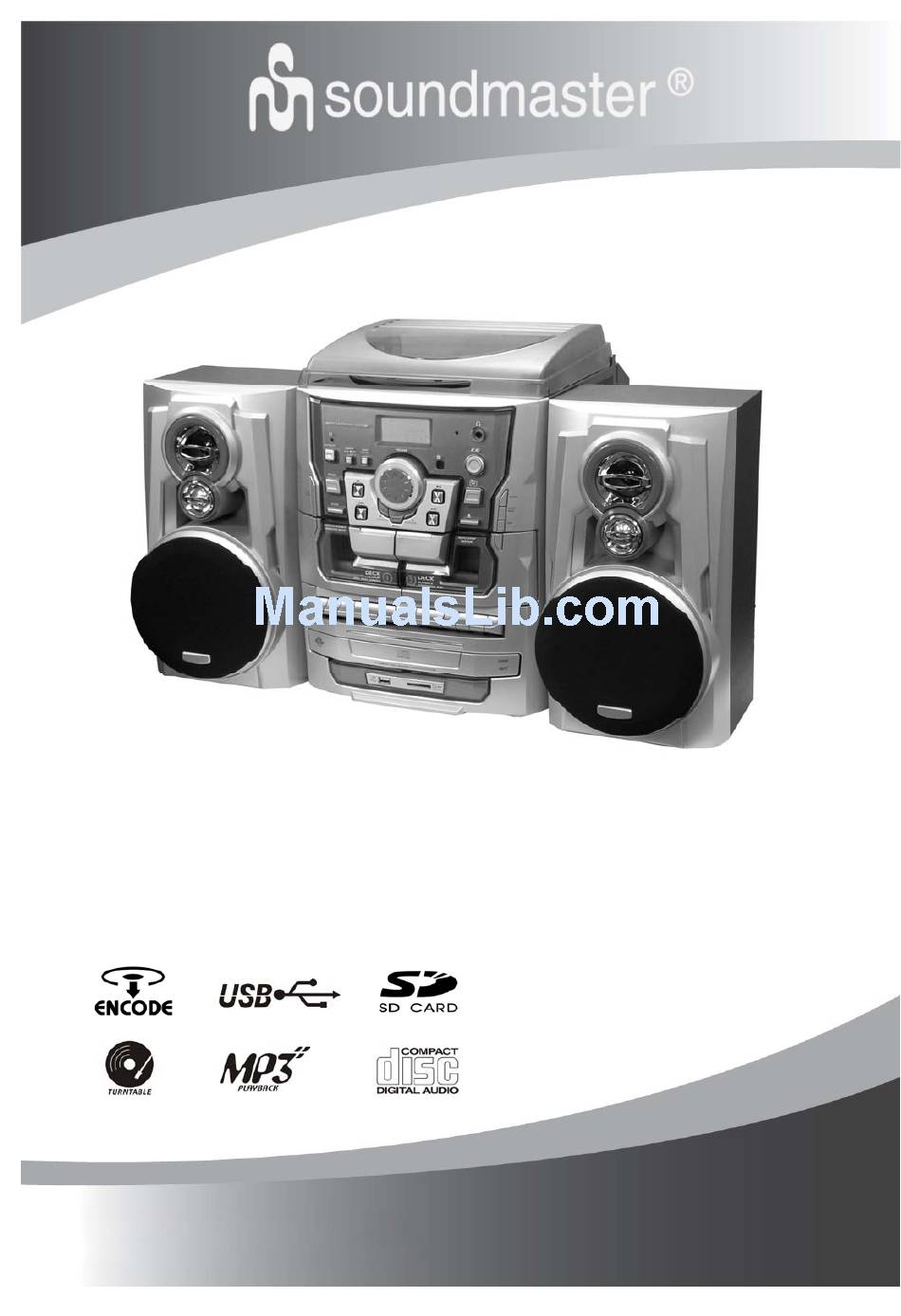

  • Page 1 DEUTSCH ENGLISH FRANÇAIS NEDERLANDS MCD 5145USB...
  • Page 2 ENGLISH LOCATION OF CONTROLS 1) DUST COVER 17) CD DOOR 2) LCD DISPLAY 18) USB SOCKET 3) VOLUME UP/DOWN BUTTON 19) 3.5MM HEADPHONE JACK 4) TIMER/CLOCK-ADJUST BUTTON 20) REMOTE SENSOR 5) STANDBY LED INDICATOR 21) PRE-SET EQ BUTTON 6) HIGH SPEED DUBBING BUTTON 22) PLAY/PAUSE BUTTON 7) POWER ON/STANDBY BUTTON...

  • Page 3: Setting The Clock

    ENGLISH PRECAUTIONS FOR USE INSTALLATION • UNPACK ALL PARTS AND REMOVE PROTECTIVE MATERIAL. • DO NOT CONNECT THE UNIT TO THE MAINS BEFORE CHECKING THE MAIN VOLTAGE AND BEFORE ALL OTHER CONNECTIONS HAVE BEEN MADE. • DO NOT COVER ANY VENTS AND MAKE SURE THAT THERE IS A SPACE OF SEVERAL CENTIMETERS AROUND THE UNIT FOR VENTILATION.

  • Page 4: Radio Data System (Rds)

    ENGLISH RADIO DATA SYSTEM (RDS) THIS IS THE FEATURES TO DISPLAY THE INFROMATION WHICH RELEASED FROM THE RADIO BROADCASE:- RDS MODE : PRESS AND HOLD TO ACTIVE THE RDS FUNCTION AND THE PROGRAM SERVICE STATION NAME (PS) IS BEING DISPLAYED. RDS SEARCH : PRESS TO SELECT THE PROGRAM TYPE YOU WANT TO LISTEN, THEN PRESS THE TUNING +/- BUTTON TO START RDS SEARCHING AND THE UNIT CAN AUTOMATICALLY DETECT A SUITABLE STATION, WHICH IS CURRENTLY BROADCASTING WITH PROGRAM TYPE IDENTIFICATION (PTY) SIGNAL.
  • Page 5 ENGLISH THE TONE ARM FROM THE RECORD AND RETURN IT TO THE REST POSITION (33). TO STOP MANUALLY, LIFT UP THE TONE ARM FROM THE RECORD AND RETURN IT TO THE REST (33). REMARK : AS SOME KIND OF RECORD THE AUTO-STOP AREA WAS OUT OF THE UNIT SETTING, SO IT WILL STOP BEFORE THE LAST TRACK FINISH.

  • Page 6: Repeat/Random Mode

    ENGLISH ID3 (TRACK TITLE/ALBUM/ARTIST) FUNCTION (BY REMOTE HANDSET) PRESS THE “ DISPLAY “ BUTTON REPEATLY DURING PLAYBACK OF MP3/WMA DISC, THE SONG TITLE / ALBUM NAME / ARTIST NAME IS BEING DISPLAYED IN ORDER. THE LCD DISPLAY (2) WILL RESUME TO NORMAL PLAYBACK INFORMATION IF LEAVE KEY FREE.
  • Page 7 ENGLISH PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA OR MEMORY CARD CONNECTING THE SYSTEM IS ABLE TO DECODE AND PLAYBACK ALL MP3 FILE WHICH STORED IN THE MEMORY MEDIA WITH USB CONNECTING PORT, MULTI- MEDIA CARD (MMC) OR SECURE DIGITAL (SD) MEMORY CARD. PRESS FUNCTION BUTTON (10) REPEATEDLY TO SELECT “...
  • Page 8 ENGLISH REMARK: THE SYSTEM WILL CREAT A “ FCOPY “ FOLDER AND THEN STORE ALL COPIED TRACK IN IT. IF PRESS THE “ REC “ BUTTON (14) DURING PLAYBACK OF USB OR SD SOURCE, THE FILE WILL COPY FROM USB TO SD OR SD TO USB. COPYING WILL BE COMPLETED ONLY ENTIRE SONG BEING COPY, IF TERMINATE THE COPY PROCESS INTERMEDIATELY, THERE IS NO TRACK BEING RECORDED NOR STORED TO THE USB OR SD/MMC CARD...

  • Page 9: More Features

    ENGLISH RECORD KEY PRESS TOGETHER WITH PLAY KEY TO START TAPE RECORDING. (DECK 1 ONLY) PLAYBACK SELECT “ TAPE ” MODE FROM FUNCTION SELECTOR (10) PUT IN THE CASSETTE TAPE. PRESS PLAY KEY TO ACTIVE PLAYBACK ADJUST THE VOLUME UP/DOWN CONTROL (3) TO THE DESIRED LEVEL. USE PAUSE KEY WHEN YOU WANT TO STOP PLAYBACK TEMPORARILY.

  • Page 10: Alarm Clock Setting

    ENGLISH 4. TO CANCEL THE SLEEP MODE, PRESS “TIMER/SLEEP” BUTTON UNTIL “ OFF ” IS DISPLAY ON LCD (2) & THE “ ” INDICATOR DISAPPEAR. B. ALARM CLOCK SETTING THIS FUNCTION ALLOWS THE SYSTEM TO TURN ON AUTOMATICALLY AND WAKE YOU UP BY MODE OF CD, TUNER, OR USB/SD.

  • Page 11: Button Description

    ENGLISH REMOTE CONTROL TRANSMITTER CONTROL FUNCTIONS BATTERY INSTALLATION (BATTERY NOT PROVIDED) THE INFRA-RED TRANSMITTER REQUIRE 2 PCS “ AAA “ BATTERY FOR OPERATION BUTTON DESCRIPTION CD/SD/USB PRESS TO SELECT FUNCTION OF CD/SD/USB RESPRECTIVELY ON/STANDBY PRESS TO SWITCH SYSTEM ON OR GOES TO STANDBY MODE TAPE PRESS TO SELECT TAPE FUNCTION TUNER/BAND...

  • Page 12: Specifications

    ENGLISH SKIP UP/DOWN IN CD MODE : TO SELECT PREVIOUS / NEXT CD TRACK IN TUNER MODE : PRESS TO STEP UP/DOWN OF FREQUENCY IN CLOCK/TIMER MODE : PRESS TO SELECT MINUTES GOES UP OR DOWN OPEN/CLOSE IN CD MODE : PRESS TO OPEN OR CLOSE THE CD DOOR TRAY ENTER / REC PRESS TO ACTIVE CD ENCODING/MP3 FILE COPY FUNCTION OR CONFIRM FILE DELETE SELECTION...
