Summary of Contents for SOUNDMASTER HighLine DISC 3220USB

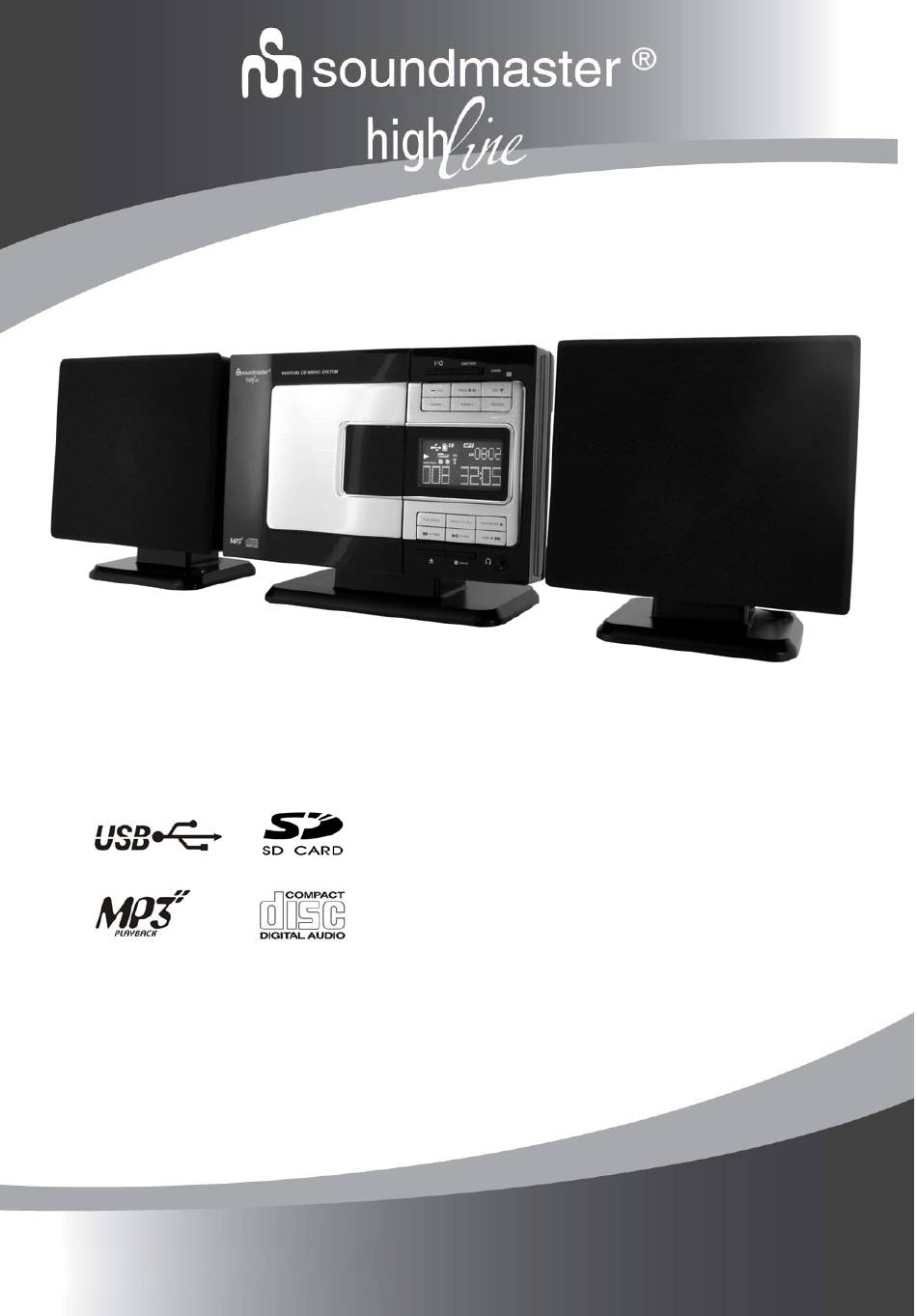

- Page 1 DEUTSCH ENGLISH FRANÇAIS NEDERLANDS ESPAÑOL DISC 3220USB...
- Page 2 ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.
-
Page 3: Location Of Controls
ENGLISH LOCATION OF CONTROLS 1) CD DOOR 2) ALARM 2 BUTTON 3) ALARM 1 BUTTON 4) VOLUME DOWN BUTTON 5) POWER ON / STANDBY BUTTON 6) FUNCTION BUTTON 7) STANDBY LED INDICATOR 8) REMOTE SENSOR 9) PRESET EQ BUTTON 10) VOLUME UP BUTTON 11) SNOOZE BUTTON 12) LCD DISPLAY... -
Page 4: For Wall Mounting
ENGLISH INSTALLATION FOR TABLE TOP USE INSET THE STAND TO THE MAIN UNIT AND SPEAKER BOX REFER TO THE PICTURE FOR WALL MOUNTING UN-INSTALL SPEAKER BOX AND THE STAND IN THE REVISE WAY FROM ABOVE USE THE WALL-MOUNTING TEMPLATE SUPPLIED WITH THE UNIT TO MAKE ANCHOR HOLE MARKS ON THE WALL. - Page 5 ENGLISH LISTENING TO RADIO MANUAL TUNING 1. PRESS FUNCTION BUTTON (6) TO SELECT “ TUNER ” MODE. 2. PRESS “ STOP BAND ” BUTTON (18) TO SELECT DESIRED BAND (AM OR FM). 3. TUNE TO THE REQUIRED STATION BY PRESSING THE TUNE “ + ” OR “ − ” BUTTON (15,21). 4.
-
Page 6: Skip Mode
ENGLISH STOP MODE IF “ STOP ” BUTTON (18) IS PRESSED DURING PLAY OR PAUSE MODE, SYSTEM WILL GO TO STOP MODE. SKIP MODE (SKIP UP / SKIP DOWN DURING PLAY OR PAUSE MODE, IF “ SKIP UP ” BUTTON (15) IS PRESSED. IT WILL GO TO NEXT TRACK AND DISPLAY THE TRACK NO. - Page 7 ENGLISH FOR MP3/WMA DISC/FILE (1) REPEAT 1 (2) REPEAT 1 FOLER (3) REPEAT ALL TRACKS (5) OFF MODE (4) RANDOM INDICATOR PLAY MODE ON LCD DISPLAY REPEAT SINGLE TRACK & FLASHING REPEAT SINGLE FOLDER REPEAT ALL TRACKS RANDOM MODE OFF MODE ----------------- REPEAT PLAY YOU CAN LISTEN THE DESIRED TRACKS OR FOLDER REPEATEDLY BY THIS FUNCTION.
- Page 8 ENGLISH REMARK THE SYSTEM CAN DETECT AND READ THE FILE UNDER MP3 OR WMA FORMAT ONLY AT USB/SD MODE BUT NOT OTHER MUSIC FILE FORMAT. IF CONNECT THE SYSTEM TO MP3 PLAYER VIA THE USB SOCKET, DUE TO VARIANCES IN MP3 ENCODING FORMAT, SOME MP3 PLAYER MAY NOT BE ABLE TO PLAY VIA THE USB SOCKET.
-
Page 9: Aux In Connection
ENGLISH SNOOZE FUNCTION PRESS “ SNOOZE ” BUTTON (11) ONCE TO TERMINATE THE ALARM MODE TEMPORARILY, AND SYSTEM WILL RE-START AGAIN AFTER 10 MINUTES ON EACH PRESS. TO CANCEL THE ALARM MODE, PRESS THE “ ALARM 1 ” (3) OR “ ALARM 2 ” (2) BUTTON OR “ POWER ON/STANDBY ”... - Page 10 ENGLISH BUTTON DESCRIPTION 29) ON/STANDBY PRESS TO POWER ON / STANDBY THE SYSTEM 30) MEM / CLK-ADJ IN STANDBY MODE: PRESS & HOLD TO ADJUST CLOCK AND ALARM CLOCK SETTING IN CD/USB/SD / TUNER MODE: PRESS TO PRESET MEMORY 31) FUNCTION PRESS TO SELECT THE FUNCTIONS (CD/SD/USB/TUNER /AUX) 32,50) SKIP UP /DOWN...
