Summary of Contents for SOUNDMASTER DISC5000

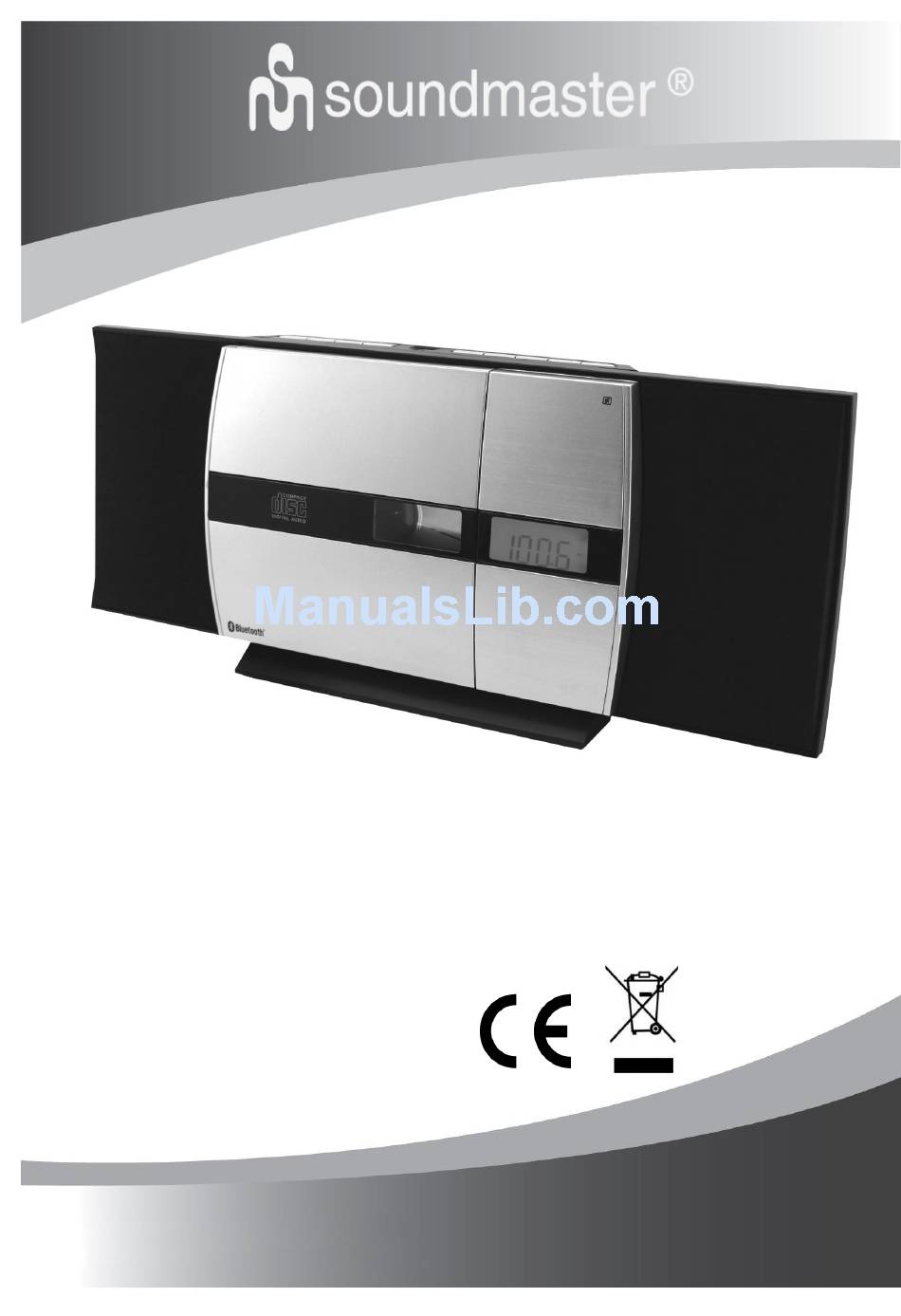

- Page 1 DEUTSCH NEDERLANDS ENGLISH ČEŠTINA FRANÇAIS Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. info@woerlein.com GERMANY Web: www.woerlein.com DISC5000...
- Page 2 WARNING Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
- Page 3 This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. GENERAL Please ensure that the equipment is positioned in a well ventilated area and ensure that there is ● at least 10 cm (4”) of free space along the sides and top of the equipment.10 cm (4”) 10 cm (4”) ●Use the unit on a firm, level surface free from vibration.
-
Page 4: Location Of Controls
LOCATION OF CONTROLS 1. R-SPEAKERS 13. DISC COMPARTMENT OPEN/CLOSE BUTTON 2. DISC COMPARTMENT; 14. VOLUME UP BUTTON 3. BASE; 15. VOLUME DOWN BUTTON 4. REMOTE SENSOR 16. SKIP UP, FAST FORWARD, TIME UP BUTTON 5. L-SPEAKERS 17. FM ANTENNA 6. LCD -DISPLAY 18. - Page 5 1. ON/STAND-BY BUTTON 13. SKIP UP, FAST FORWARD, TIME UP BUTTON 2. SLEEP BUTTON ; 14. PLAY/PAUSE BUTTON 3. EQ BUTTON ; 15. FOLDER ON/OFF BUTTON 4. MEMORY/CLOCK BUTTON 16. STOP BUTTON 5. SKIP DOWN, FAST REVERSE, TIME DOWN 17. TUNER PRESET UP BUTTON,FOLDER UP BUTTON BUTTON 6.
-
Page 6: Wall Mount Preparation
WALL MOUNT PREPARATION To mount the unit on the wall CAUTION: • Be very careful to prevent the unit 2.1 kg (4.2 bs.) from falling when mounting on the wall. • Before mounting, check the wall strength. (Do not put on the veneer plaster or whitewashed wall. The unit may fall.) If unsure, consul a qualified service technician. -
Page 7: X-Bass Control
POWER SOURCES After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket. NOTE: Unplug the AC power lead from the wall socket if the unit will not be in use for a prolonged period of time. The remote control unit it is designed to operate on CR2025 size batteries (Included). -
Page 8: Bluetooth Operation
REPEAT ALL When the PLAY MODE button is pressed twice, the REPEAT indicator will light in the LCD display. The whole disc will be played continuously. To Cancel Repeat Function: Press the REPEAT button until the repeat indicator is off. RANDOM PLAY When the PLAY MODE button is pressed three, the “RDM “indicator will light in the LCD display. -
Page 9: Aux In Operation
Bluetooth source devices. 4. Perform pairing procedure on the source device to detect this unit. “DISC5000” will appear in the detected devices list (if available) in the source device. (Refer the source device operating manual for details). - Page 10 SETT ETTING THE CLOCK TIME (REMOTE CONTROL ONLY) In this example, the clock is set for the 24-hour (0:00) display. 1. Press the STAND-BY/ON button to turn the power off. 2. Press the CLOCK button 2 seconds. 3. Press the" "or" "button to select 24-hour or 12-hour display and then press the CLOCK button. The 24-hour display will appear.(0:00 - 23:59) The 12-hour display will appear.(AM 12:00 - PM 11:59) The 12-hour display will appear.(AM 0:00 - PM 11:59)
- Page 11 CARE OF COMPACT DISCS Compact discs are fairly resistant to damage, however miss-tracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player. • Do not write on either side of the disc, particularly the non-label side from which signals are read. Do not mark this surface.
-
Page 12: Specifications
SPECIFICATIONS Maintenance: Cleaning the cabinet Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth. Caution: • Do not use chemicals for cleaning (petrol, paint thinner, etc.). It may damage the cabinet. •... -
Page 13: Symptom Possible Cause
SYMPTOM POSSIBLE CAUSE Symptom Possible Cause • Is the unit placed near the TV or computer? The radio makes unusual • Is the FM aerial placed properly? noises continuously. Move the aerial away from the AC power lead if it is located nearby. - Page 14 Hiermit bestätigt Wörlein GmbH, dass sich dieses Gerät Härmed Wörlein GmbH deklarerar att denna enhet är i Übereinstimmung grundlegenden överensstämmelse med de grundläggande kraven och Anforderungen übrigen einschlägigen andra relevanta bestämmelser i direktiv 1999/5 / EG. Bestimmungen der Richtlinie 1999/5/EG befindet. En kopia av försäkran om överensstämmelse kan erhållas Eine Kopie der Konformitätserklärung kann unter på...
