Camera/Lens
and PTT
Assembly are
not shown for
clarity reasons.
Electrical
Conduit
Power Input
Cable
Feed all cables through the electrical conduit
and connect them as shown.
NOTE: Make sure the BNC connector and all
other wires are tucked into an area of the
camera base where no damage can occur to
any electrical parts.

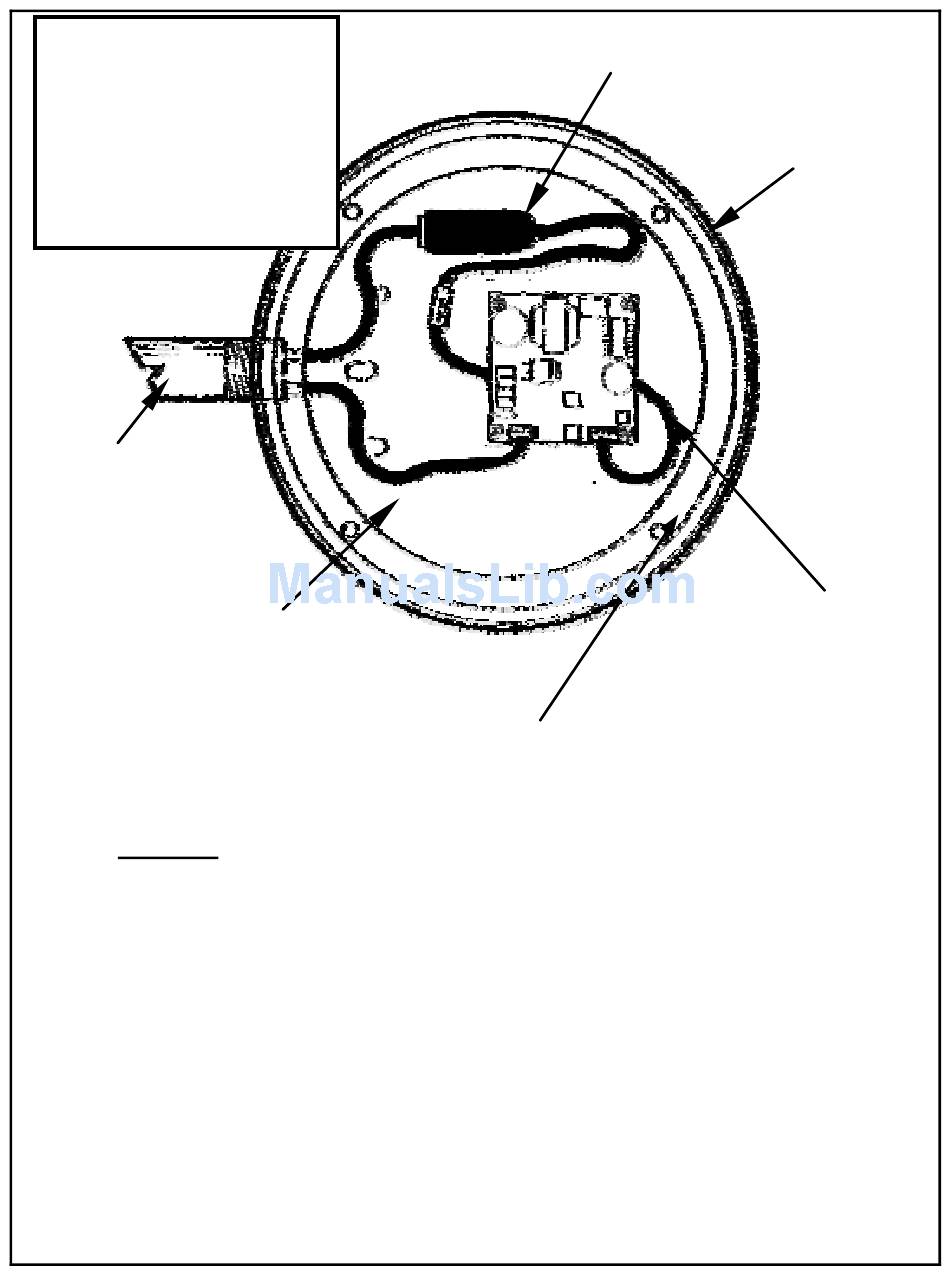

FIGURE 3 - 1
Side Entry Wiring Connections
BNC Connector, see Note 3.8
Power Cable to Camera Board
14
Video
Cable
VRB
