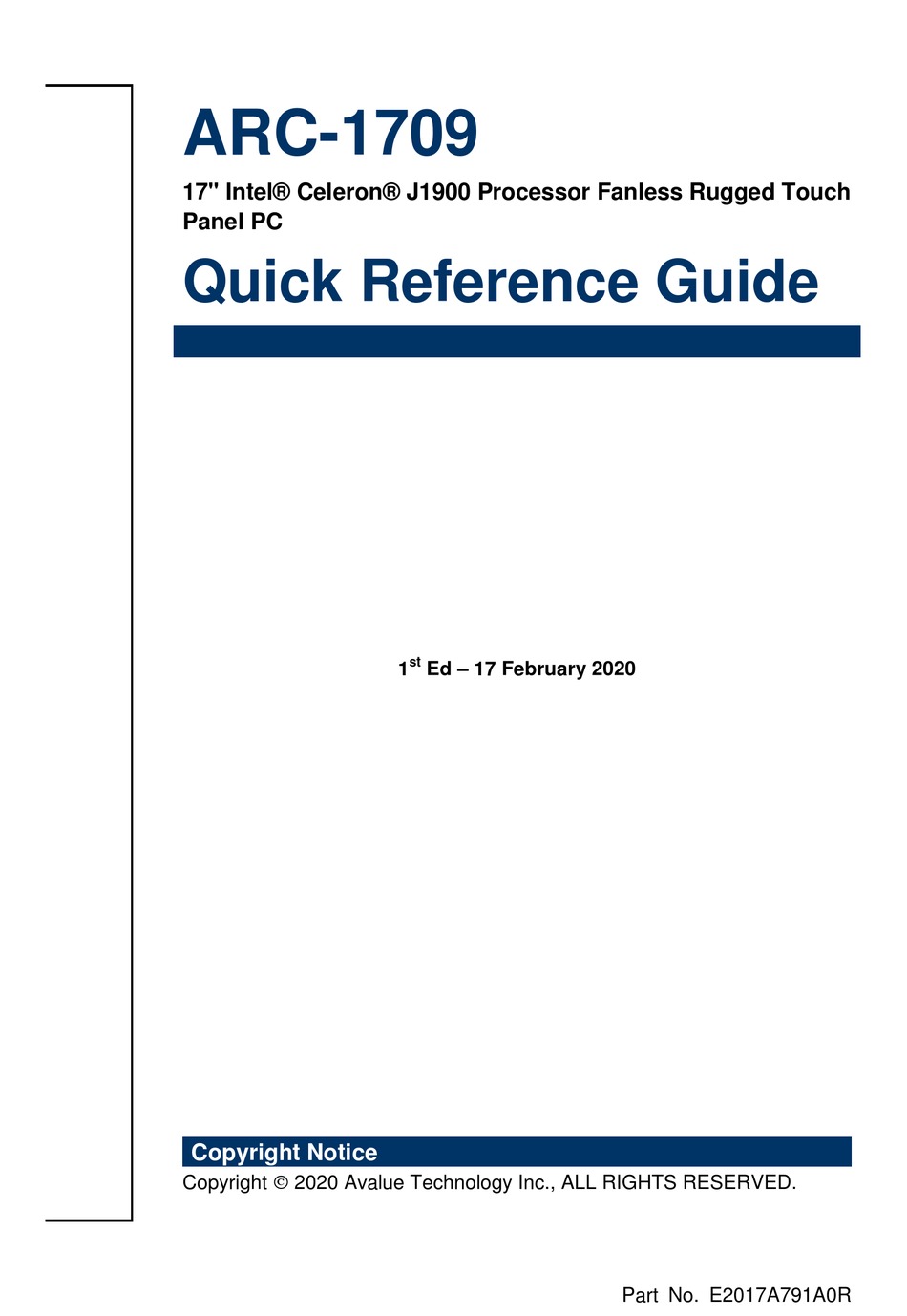

ARC-1709
17" Intel® Celeron® J1900 Processor Fanless Rugged Touch
Panel PC
Quick Reference Guide
st
Ed – 17 February 2020
1
Copyright Notice
Copyright  2020 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017A791A0R

Advertisement

Table of Contents
loading

Related Manuals for Avalue Technology ARC-1709

Summary of Contents for Avalue Technology ARC-1709

  • Page 1 ARC-1709 17" Intel® Celeron® J1900 Processor Fanless Rugged Touch Panel PC Quick Reference Guide Ed – 17 February 2020 Copyright Notice Copyright  2020 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017A791A0R...
  • Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 ARC-1709 Quick Reference Guide...

  • Page 3: Table Of Contents

    2.1.3 Serial port 6 connector (COM6) ..................... 13 2.1.4 VGA connector (VGA) ......................13 2.2 Installing Mounting Brackets (ARC-1709) ............... 14 2.3 Installing VESA Mounting (ARC-1709) ..............15 2.4 Product Overview ....................16 2.5 Jumper and Connector List ..................19 2.6 Setting Jumpers &...
  • Page 4 USB Configuration ......................... 109 3.6.3.2.3 PCI Express Configuration ......................110 3.6.4 Security ..........................112 3.6.4.1 Secure Boot menu ......................... 113 3.6.4.1.1 Key Management ........................... 114 3.6.5 Boot ............................ 114 3.6.6 Save and exit ........................115 4 ARC-1709 Quick Reference Guide...

  • Page 5: Getting Started

    1 x power cord  4 x screws for VESA  4 x screws for HDD  8 x screws for wall mount  8 x brackets for wall mount  8 x plastics spacer for wall mount  ARC-1709 Quick Reference Guide...

  • Page 6: System Specifications

    Power LED for 1 x mini PCIe full size (support half size) Expansion Slots 1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe Mechanical Power Type AT/ATX 6 ARC-1709 Quick Reference Guide...
  • Page 7 3. Test Frequency : 5-500Hz 4. Test Axis : X,Y and Z axis 5. 30 min. per each axis 6. IEC 60068-2-64 Test:Fh Mechanical Shock 1. Wave form：Half Sine wave Test 2. Acceleration Rate：20g for operation mode 3. Duration Time：11ms ARC-1709 Quick Reference Guide...
  • Page 8 1 One corner , three edges, six faces 2 ISTA 2A, IEC-60068-2-32 Test:Ed Operating 0 ~ +50 degree C Temperature Operating Humidity 0 ~ 90% Relative Humidity, Non-condensing Storage Temperature -20 ~ 60 degree Note: Specifications are subject to change without notice. 8 ARC-1709 Quick Reference Guide...

  • Page 9: System Overview

    6 x Serial port connector DB-9 male connector (default: 1RS485,5RS232) VGA connector 4 x USB 3.0 connector LAN1/2 RJ-45 Ethernet 1/2 HDMI HDMI connector MIC IN Mic-in audio jack LINE OUT Line-out audio jack Power Switch Power on button ARC-1709 Quick Reference Guide...

  • Page 10: System Dimensions

    ARC-1709 1.5 System Dimensions (Unit: mm) 10 ARC-1709 Quick Reference Guide...

  • Page 11: Hardware Configuration

    Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- EMX-BYT2 User’s Manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw ARC-1709 Quick Reference Guide 11...

  • Page 12: Arc-1709 Connector Mapping

    ARC-1709 2.1 ARC-1709 connector mapping 2.1.1 Serial port 1 connector (COM1) RS-232 Signal PIN PIN Signal RS-422/485 Signal PIN PIN Signal 422RX+ 485TX+ 422RX- 485TX- 2.1.2 Serial port 2/3/4/5 connector (COM2/3/4/5) Signal PIN PIN Signal 12 ARC-1709 Quick Reference Guide...

  • Page 13: Serial Port 6 Connector (Com6)

    Quick Reference Guide 2.1.3 Serial port 6 connector (COM6) Signal PIN PIN Signal GPIO1 GPIO6 GPIO2 GPIO7 GPIO3 GPIO8 GPIO4 GPIO5 2.1.4 VGA connector (VGA) Signal PIN Signal PIN Signal GREEN DDCDAT BLUE HSYNC VSYNS DDCCLK ARC-1709 Quick Reference Guide 13...

  • Page 14: Installing Mounting Brackets (Arc-1709)

    ARC-1709 2.2 Installing Mounting Brackets (ARC-1709) Step 1. Position brackets on both sides, matching the holes on the system. Step 2. Insert and fasten screws on each side of the system to secure Mounting brackets. 14 ARC-1709 Quick Reference Guide...

  • Page 15: Installing Vesa Mounting (Arc-1709)

    Quick Reference Guide 2.3 Installing VESA Mounting (ARC-1709) Step 1. Insert and fasten screws on each side of the system to secure VESA Mounting. ARC-1709 Quick Reference Guide 15...

  • Page 16: Product Overview

    ARC-1709 2.4 Product Overview 16 ARC-1709 Quick Reference Guide...
  • Page 17 Usage of SD cards operating at 3.3V should be minimized and usage should be limited to UHS-I type SD cards operating at 1.8V. Inserting the SD card, and leaving it in the system, as extended storage, reduces the life of the interface. Occasional usage of SD card, ARC-1709 Quick Reference Guide 17...
  • Page 18 –transferring data to or from the SD card-then removing the SD card, is not a concern. Customers have the option to enable a default D3 device setting to extend the life of the SD card interface, if supported by the OS. 18 ARC-1709 Quick Reference Guide...

  • Page 19: Jumper And Connector List

    5 x 2 header, pitch 2.54 mm Miscellaneous setting connector 2 5 x 2 header, pitch 2.54 mm FPT2 DIMM1/2 204-pin DDR3L DIMM socket FAUD1 Front Audio connector 5 x 2 header, pitch 2.54 mm ARC-1709 Quick Reference Guide 19...
  • Page 20 4 x 1 wafer, pitch 2.54mm SPWR1/2 SATA Power connector 1/2 EC_Program 5 x 2 header, pitch 2.00 mm DC Power-in connector SIM1 SIM card slot HDMI1 HDMI connector LOUT1 Line-out audio jack MIC1 Mic-in audio jack VGA connector VGA1 20 ARC-1709 Quick Reference Guide...

  • Page 21: Setting Jumpers & Connectors

    SATA2/MSATA1 mPCIe slot selector (JMSW1) SATA2 Connector * (SATA2 Connector enabled, MSATA1 slot Disabled) MSATA1 mPCIe slot (MSATA1 slot enabled, SATA2 Connector Disabled) * Default Note: SATA2/MSATA1 shared SATA signal, can not be used simultaneously. ARC-1709 Quick Reference Guide 21...
  • Page 22 ARC-1709 2.6.3 LVDS Back Light power selection (JSBKL1) PWM Mode*(Max current: 2A) DC Mode(Max current: 2A) * Default 2.6.4 AT/ATX Power Mode Select (JSATX1) ATX* * Default 22 ARC-1709 Quick Reference Guide...
  • Page 23 Quick Reference Guide 2.6.5 Clear CMOS (CMOS1) Protect* Clear CMOS * Default 2.6.6 LCD Inverter connector (JBKL1) Signal Max current +12V LVDS_BKLTEN LVDS_BKLADJ ARC-1709 Quick Reference Guide 23...
  • Page 24 ARC-1709 2.6.7 Serial port 1/2 connector (COM1/2) COM1 COM2 Signal PIN PIN Signal 2.6.8 Serial port 3/4/5/6 connector (COM3/4/5/6) COM6 COM5 COM4 COM3 Signal PIN PIN Signal 24 ARC-1709 Quick Reference Guide...
  • Page 25 Serial Port 1 RS485/422 Mode connector (JRS485) RS-422 Signal PIN PIN Signal 422RX+ 422TX+ 422RX- 422TX- RS-485 Signal PIN PIN Signal 485TX+ 485TX- 2.6.10 General purpose I/O connector (DIO1) Signal PIN PIN Signal SMB_CLK SMB_DATA ARC-1709 Quick Reference Guide 25...
  • Page 26 ARC-1709 2.6.11 SATA Power connector 1/2 (SPWR1/2) SPWR1 SPWR2 Signal Max current +V5S_SATA +V12S_SATA 2.6.12 Power connector (PWR1) Signal Signal +VIN_12V +VIN_12V 26 ARC-1709 Quick Reference Guide...
  • Page 27 Quick Reference Guide 2.6.13 USB connector 3 (USB3) Signal Signal +V5A_USB01 +V5A_USB01 USB_DN0 USB_DN1 USB_DP0 USB_DP1 2.6.14 Battery connector (BT1) Signal ARC-1709 Quick Reference Guide 27...
  • Page 28 LVDS connector (JLVDS1) Signal PIN PIN Signal +3.3V +3.3V EDP_DDC_SCL EDP_DDC_DAT LVDS_DATAP1 LVDS_DATAP0 LVDS_DATAN1 LVDS_DATAN0 LVDS_DATAP3 LVDS_DATAP2 LVDS_DATAN3 LVDS_DATAN2 LVDS_DATAP5 LVDS_DATAP4 LVDS_DATAN5 LVDS_DATAN4 LVDS_DATAP7 LVDS_DATAP6 LVDS_DATAN7 LVDS_DATAN6 LVDS_CLK2P LVDS_CLK1P LVDS_ CLK2N LVDS_ CLK1N +12V +12V 28 ARC-1709 Quick Reference Guide...

  • Page 29: Signal Description -Front Audio Connector (Faud1)

    Audio connector (FAUD1) Signal PIN PIN Signal LINE2_JD LINE2_L SENSE_B MIC2_JD LINE2_R AUD_FRONT_DET MIC2_R MIC2_L 2.3.16.1 Signal Description –Front Audio connector (FAUD1) Signal Signal Description LINE2_JD AUDIO IN (LINE_RIN/LIN)sense pin MIC2_JD MIC IN (MIC_RIN/LIN) sense pin ARC-1709 Quick Reference Guide 29...
  • Page 30 ARC-1709 2.6.17 LPC connector (JLPC1) Signal PIN PIN Signal LPC_SERIRQ LPC_DEG_CLK LPC_AD3 LPC_FRAME# LPC_AD2 PLT_RST# LPC_AD1 +3.3V LPC_AD0 2.6.18 EC_Program (EC1) Signal PIN PIN Signal EC_SMDATA_DBG 10 EC_SMCLK_DBG EC_HOLD# EC_FSMOSI EC_FSMIOSO EC_FSCK EC_FSCE# +3.3A_ECSPI 30 ARC-1709 Quick Reference Guide...
  • Page 31 Quick Reference Guide 2.6.19 PS/2 keyboard & mouse connector (KBMS1) Signal PIN PIN Signal KBDAT KBCK +5VSB MSDAT MSCK 2.6.20 BIOS connector (BIOS1) Signal PIN PIN Signal +V1.8A_SPI SPI_ROM_CS0# SPI_ROM_CLK SPI_ROM_R_MISO SPI_ROM_MOSI SPI_ROM_HOLD# ARC-1709 Quick Reference Guide 31...
  • Page 32 ARC-1709 2.6.21 Sony/Philips Digital Interface (SPDIF1) Signal SPDIF_OUT 2.6.22 Speaker connector (SPK1) Signal RSPK- RSPK+ LSPK- LSPK+ 32 ARC-1709 Quick Reference Guide...
  • Page 33 Quick Reference Guide 2.6.23 Miscellaneous setting connector 1 (FPT1) Signal PIN PIN Signal +HD_LED +PWR_LED -HD_LED -PWE_LED +Reset +PWR_BNT -Reset -PWR_BNT 2.6.24 Miscellaneous setting connector 2 (FPT2) Signal PIN PIN Signal Speaker+ BLK_VR(10K) BLK_UP BLK_DN Speaker- ARC-1709 Quick Reference Guide 33...
  • Page 34 ARC-1709 2.6.25 LED indicator connector 1 (LED1) Signal L1_1000#_LED L1_100#_LED L1_ACT_N L1_ACT_P 2.6.26 LED indicator connector 2 (LED2) Signal L2_1000#_LED L2_100#_LED L2_ACT_N L2_ACT_P 34 ARC-1709 Quick Reference Guide...
  • Page 35 Quick Reference Guide 2.6.27 CPU fan connector (FAN1) Signal +12V CPU_FANIN CPU_FANOUT ARC-1709 Quick Reference Guide 35...

  • Page 36: Bios Setup

    ARC-1709 3.BIOS Setup 36 ARC-1709 Quick Reference Guide...

  • Page 37: Introduction

    If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP ARC-1709 Quick Reference Guide 37...

  • Page 38: Using Setup

    Note: Some of the navigation keys differ from one screen to another.  To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 38 ARC-1709 Quick Reference Guide...

  • Page 39: Getting Help

    BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. ARC-1709 Quick Reference Guide 39...

  • Page 40: Bios Setup

    <Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 40 ARC-1709 Quick Reference Guide...

  • Page 41: System Language

    Note: The BIOS setup screens shown in this chapter are for reference purposes only, and may not exactly match what you see on your screen. Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. ARC-1709 Quick Reference Guide 41...

  • Page 42: Advanced Menu

    ARC-1709 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 3.6.2.1 Trusted Computing 42 ARC-1709 Quick Reference Guide...

  • Page 43: Apci Settings

    Quick Reference Guide Item Options Description Enables or Disables BIOS support for security Disable, Security Device Support device. O.S. will not show Security Device. TCG EFI Enable[Default] protocol and INT1Ainterface will not be available. 3.6.2.2 APCI Settings ARC-1709 Quick Reference Guide 43...
  • Page 44 ARC-1709 44 ARC-1709 Quick Reference Guide...
  • Page 45 Quick Reference Guide ARC-1709 Quick Reference Guide 45...
  • Page 46 Enable ACPI Auto Disabled[Default], Enables or Disables BIOS ACPI Auto Configuration Enabled Configuration. Enables or Disables System ability to Disabled Enable Hibernation Hibernate (OS/S4 Sleep State). This Enabled[Default], option may be not effective with some 46 ARC-1709 Quick Reference Guide...

  • Page 47: It8528 Super Io Configuration

    Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). Serial Port 3 Configuration Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). ARC-1709 Quick Reference Guide 47...

  • Page 48: Serial Port 1 Configuration

    ARC-1709 Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). 3.6.2.3.1 Serial Port 1 Configuration 48 ARC-1709 Quick Reference Guide...
  • Page 49 IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; Select an optimal setting for Change Settings IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; Super IO Device. IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; UART 232[Default], Change the Serial Port as UART 232 422 485 UART 422, RS232/ 422/ 485 UART 485 ARC-1709 Quick Reference Guide 49...

  • Page 50: Serial Port 2 Configuration

    ARC-1709 3.6.2.3.2 Serial Port 2 Configuration 50 ARC-1709 Quick Reference Guide...
  • Page 51 Quick Reference Guide Item Option Description Enabled[Default], Enable or Disable Serial Port Serial Port Disabled (COM). Auto[Default] IO=2F8h; IRQ=3; IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12; Select an optimal setting for Change Settings IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12; super IO Device. IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; ARC-1709 Quick Reference Guide 51...

  • Page 52: Serial Port 3 Configuration

    ARC-1709 3.6.2.3.3 Serial Port 3 Configuration 52 ARC-1709 Quick Reference Guide...

  • Page 53: Serial Port 4 Configuration

    Enable or Disable Serial Port Serial Port Disabled (COM). Auto[Default] IO=3E8h; IRQ=5; IO=3E8h; IRQ=3,4,5,6,7,10,11,12; Select an optimal setting for Change Settings IO=2E8h; IRQ=3,4,5,6,7,10,11,12; super IO Device. IO=200h; IRQ=3,4,5,6,7,10,11,12; IO=208h; IRQ=3,4,5,6,7,10,11,12; 3.6.2.3.4 Serial Port 4 Configuration ARC-1709 Quick Reference Guide 53...
  • Page 54 ARC-1709 Item Option Description Enabled[Default], Enable or Disable Serial Port Serial Port Disabled (COM). Auto[Default] IO=2E8h; IRQ=7; IO=3E8h; IRQ=3,4,5,6,7,10,11,12; Select an optimal setting for Change Settings IO=2E8h; IRQ=3,4,5,6,7,10,11,12; super IO Device. IO=200h; IRQ=3,4,5,6,7,10,11,12; IO=208h; IRQ=3,4,5,6,7,10,11,12; 54 ARC-1709 Quick Reference Guide...

  • Page 55: Serial Port 5 Configuration

    Quick Reference Guide 3.6.2.3.5 Serial Port 5 Configuration ARC-1709 Quick Reference Guide 55...
  • Page 56 ARC-1709 Item Option Description Enabled[Default], Enable or Disable Serial Port Serial Port Disabled (COM). Auto[Default] IO=200h; IRQ=11; IO=3E8h; IRQ=3,4,5,6,7,10,11,12; Select an optimal setting for Change Settings IO=2E8h; IRQ=3,4,5,6,7,10,11,12; super IO Device. IO=200h; IRQ=3,4,5,6,7,10,11,12; IO=208h; IRQ=3,4,5,6,7,10,11,12; 56 ARC-1709 Quick Reference Guide...

  • Page 57: Serial Port 6 Configuration

    3.6.2.3.6 Serial Port 6 Configuration Item Option Description Enabled[Default], Enable or Disable Serial Port Serial Port Disabled (COM). Auto[Default] IO=208h; IRQ=10; IO=3E8h; IRQ=3,4,5,6,7,10,11,12; Select an optimal setting for Change Settings IO=2E8h; IRQ=3,4,5,6,7,10,11,12; super IO Device. IO=200h; IRQ=3,4,5,6,7,10,11,12; IO=208h; IRQ=3,4,5,6,7,10,11,12; ARC-1709 Quick Reference Guide 57...

  • Page 58: H/W Monitor

    ARC-1709 3.6.2.4 H/W Monitor 58 ARC-1709 Quick Reference Guide...

  • Page 59: Smart Fan Mode Configuration

    Quick Reference Guide Item Options Description Enabled, Smart Fan Function Enable or Disable Smart Fan. Disabled[Default] 3.6.2.4.1 Smart Fan Mode Configuration ARC-1709 Quick Reference Guide 59...
  • Page 60 Option Description Manual Mode[Default], Mode 01 Mode 02 Mode 03 CPU Smart Fan Mode Mode 04 CPU Smart Fan Mode Select. Mode 05 Mode 06 Mode 07 Mode 08 Fan PWM 0-255 Fan PWM duty. 60 ARC-1709 Quick Reference Guide...

  • Page 61: S5 Rtc Wake Settings

    Quick Reference Guide 3.6.2.5 S5 RTC Wake Settings ARC-1709 Quick Reference Guide 61...
  • Page 62 Time, System will wake on the current time + Increase minute(s). Disabled[Default], Wake up day of week. (Monday-Friday) or Wake up day of week Monday-Friday (Monday-Saturday). Monday-Saturday Wake up day 1-31 Select 0 for daily system wake up 1-31 for 62 ARC-1709 Quick Reference Guide...

  • Page 63: Serial Port Console Redirection

    Wake up minute 0-23 15 for 3pm. Select 0-23 For example enter 3 for 3am and Wake up second 0-23 15 for 3pm. 1 – 5. Wake up minute increase 3.6.2.6 Serial Port Console Redirection ARC-1709 Quick Reference Guide 63...

  • Page 64: Com1

    They can be used as an additional data bit. Stop bits indicate the end of a serial data 1[Default] Stop Bits packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. 64 ARC-1709 Quick Reference Guide...
  • Page 65 The Settings specify if BootLoader is selected then Legacy console redirection is Always Enable[Default] disabled before booting to Legacy OS. Redirection After BIOS POST BootLoader Default value is Always Enable which means Legacy console Redirection is enabled for Legacy OS. ARC-1709 Quick Reference Guide 65...

  • Page 66: Cpu Configuration

    ARC-1709 3.6.2.7 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. 66 ARC-1709 Quick Reference Guide...
  • Page 67 Quick Reference Guide ARC-1709 Quick Reference Guide 67...
  • Page 68 ARC-1709 68 ARC-1709 Quick Reference Guide...

  • Page 69: Socket 0 Cpu Information

    When enabled, a VMM can utilize the Disabled, Intel Virtualization Technology additional hardware capabilities provided by Enabled[Default] Virtualization Technology. Disabled[Default], Power Technology Energy Efficient Enable the power management features. Custom 3.6.2.7.1 Socket 0 CPU Information ARC-1709 Quick Reference Guide 69...

  • Page 70: Ppm Configuration

    ARC-1709 3.6.2.8 PPM Configuration 70 ARC-1709 Quick Reference Guide...
  • Page 71 Quick Reference Guide Item Options Description Disabled[Default], CPU C state Report Enable/Disable CPU C state report to OS. Enabled This option controls Max C state that the Max CPU C-state C1/C6/C7[Default] processor will support. ARC-1709 Quick Reference Guide 71...

  • Page 72: Ide Configuration

    ARC-1709 3.6.2.9 IDE Configuration 72 ARC-1709 Quick Reference Guide...
  • Page 73 Quick Reference Guide ARC-1709 Quick Reference Guide 73...
  • Page 74 ARC-1709 74 ARC-1709 Quick Reference Guide...
  • Page 75 SATA Speed Support Gen1 or Gen2. Gen2[Default] Port0 ODD SATA ODD Port Port1 ODD SATA ODD is Port0 or Port1. No ODD[Default] IDE Mode SATA Mode Select IDE/AHCI. AHCI Mode[Default] Enabled[Default] Serial-ATA Port 0/1 Enable/Disable Serial ATA Port0/1. Disabled, ARC-1709 Quick Reference Guide 75...

  • Page 76: Lpss & Scc Configuration

    ARC-1709 3.6.2.10 LPSS & SCC Configuration 76 ARC-1709 Quick Reference Guide...
  • Page 77 Quick Reference Guide ARC-1709 Quick Reference Guide 77...
  • Page 78 ARC-1709 78 ARC-1709 Quick Reference Guide...
  • Page 79 Enabled[Default] SCC SDIO Support SCC SDIO Support Enable/Disable. Disabled, Enabled[Default] SCC SD Card Support SCC SD Card Support Enable/Disable. Disabled, Enabled[Default] Disable/Enable SDR25 Capability in SD SDR25 Support for SDCard Disabled, Card controller. ARC-1709 Quick Reference Guide 79...

  • Page 80: Network Stack Configuration

    ARC-1709 3.6.2.11 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] 80 ARC-1709 Quick Reference Guide...

  • Page 81: Csm Configuration

    Quick Reference Guide 3.6.2.12 CSM Configuration ARC-1709 Quick Reference Guide 81...
  • Page 82 ARC-1709 82 ARC-1709 Quick Reference Guide...
  • Page 83 Quick Reference Guide ARC-1709 Quick Reference Guide 83...
  • Page 84 ARC-1709 84 ARC-1709 Quick Reference Guide...
  • Page 85 Do not launch Controls the execution of UEFI and Legacy Video UEFI Video OpROM. Legacy[Default] Do not launch Determines OpROM execution policy for Other PCI devices UEFI[Default] devices other than Network, Storage, or Legacy Video. ARC-1709 Quick Reference Guide 85...

  • Page 86: Sdio Configuration

    Auto Option: Access SD device in DMA Auto[Default] mode if controller supports it , otherwise in SDIO Access Mode PIO mode. DMA Option: Access SD device in DMA mode. PIO Option: Access SD device in PIO mode. 86 ARC-1709 Quick Reference Guide...

  • Page 87: Usb Configuration

    Quick Reference Guide 3.6.2.14 USB Configuration The USB Configuration menu helps read USB information and configures USB settings. ARC-1709 Quick Reference Guide 87...
  • Page 88 ARC-1709 88 ARC-1709 Quick Reference Guide...
  • Page 89 Quick Reference Guide ARC-1709 Quick Reference Guide 89...
  • Page 90 ARC-1709 90 ARC-1709 Quick Reference Guide...
  • Page 91 Mass storage device emulation type. ‘AUTO’ Auto[Default] Floppy enumerates devices according to their media format. Optical drives are emulated as ‘CDROM’, Generic-SD/MMC 1.00 Forced FDD Hard Disk drives with no media will be emulated according CD-ROM to a drive type. ARC-1709 Quick Reference Guide 91...

  • Page 92: Security Configuration

    ARC-1709 3.6.2.15 Security Configuration 92 ARC-1709 Quick Reference Guide...
  • Page 93 Enable/Disable BIOS AT Code from Running. Enabled, Disabled[Default] Inter® AT Platform PBA Enable/Disable BIOS AT Code from Running. Enabled TXE OVERWRITE. NORMAL: OverWrite Pin as high. OVERWRITE TXE OVERWRITE (TXE enabled) OVERWRITE:OverWrite Pin as low. NORMAL[Default] (TXE disabled). ARC-1709 Quick Reference Guide 93...

  • Page 94: Lan Driver Report Status

    ARC-1709 3.6.2.16 Lan driver report status 94 ARC-1709 Quick Reference Guide...

  • Page 95: Chipset

    Quick Reference Guide 3.6.3 Chipset 3.6.3.1 North Bridge ARC-1709 Quick Reference Guide 95...

  • Page 96: Intel Igd Configuration

    ARC-1709 Item Option Description Dynamic 2 GB 2.25 GB Max TOLUD Maximum Value of TOLUD. 2.5 GB 2.75 GB 3 GB[Default] 3.6.3.1.1 Intel IGD Configuration 96 ARC-1709 Quick Reference Guide...
  • Page 97 Quick Reference Guide ARC-1709 Quick Reference Guide 97...
  • Page 98 ARC-1709 98 ARC-1709 Quick Reference Guide...
  • Page 99 Quick Reference Guide ARC-1709 Quick Reference Guide 99...
  • Page 100 ARC-1709 100 ARC-1709 Quick Reference Guide...
  • Page 101 DVMT Pre-Allocated 384M/416M/448M/ by the Internal Graphics Device. 480M/512M 128MB Select DVMT 5.0 Total Graphics DVMT Total Gfx Mem 256MB[Default] Memory size used by the Internal Graphics Device. 128MB Aperture Size Select the Aperture Size. 256MB[Default] ARC-1709 Quick Reference Guide 101...

  • Page 102: Igd - Lcd Control

    ARC-1709 3.6.3.1.2 IGD - LCD Control 102 ARC-1709 Quick Reference Guide...
  • Page 103 Quick Reference Guide ARC-1709 Quick Reference Guide 103...
  • Page 104 Description Enabled[Default] Active Internal LVDS(eDP->Ch7511- Active LVDS (Ch7511) to –LVDS). Disabled 1024x768 24/1 800x600 18/1 1024x768 18/1 Port1-EDP to LVDS (Chrontel 7511) Panel CH7511 EDID Panel Option 1366x768 18/1 EDID Option. 1024x600 18/1 1280x800 18/1 104 ARC-1709 Quick Reference Guide...

  • Page 105: South Bridge

    Brightness Control Method BR Button 2.Brightness Button 3.Variable Resistor. LVDS Back Light PWM Select LVDS back light PWM duty. 100%[Default] 200[Default] LVDS Back Light PWM Select LVDS back light PWM Frequency. Frequency 3.6.3.2 South Bridge ARC-1709 Quick Reference Guide 105...
  • Page 106 ARC-1709 106 ARC-1709 Quick Reference Guide...
  • Page 107 Enable or Disable the High High Precision Timer Enabled[Default] Precision Event Timer. 11db[Default] 14db AUD Gain Setting Select db Value of the AUD Gain. 19db 25db PCIE x1 Select PCIE x1/ MPCIE of the PCIEX1 Setting MPCIE[Default] PCIEx1_SET ARC-1709 Quick Reference Guide 107...

  • Page 108: Azalia Hd Audio

    ARC-1709 3.6.3.2.1 Azalia HD Audio 108 ARC-1709 Quick Reference Guide...

  • Page 109: Usb Configuration

    Disabled = Azalia will be unconditionally Enabled[Default], Audio Controller disabled. Enabled = Azalia will be Disabled unconditionally Enabled. Auto = Azalia will be enabled if present disabled otherwise. Enabled[Default], HDMI Port B Enable/Disable HDMI Port B. Disabled 3.6.3.2.2 USB Configuration ARC-1709 Quick Reference Guide 109...

  • Page 110: Pci Express Configuration

    ARC-1709 Item Option Description Windows 8.X[Default] OS Selection Android OS Selection. Windows 7 3.6.3.2.3 PCI Express Configuration 110 ARC-1709 Quick Reference Guide...
  • Page 111 Quick Reference Guide Item Option Description Enabled[Default], Enable or Disable the PCI Express Port PCI Express Port 0/1/2/3 Disabled 0/1/2/3 in the Chipset. Auto[Default] Speed Gen 2 Configure PCIe Port Speed. Gen 1 ARC-1709 Quick Reference Guide 111...

  • Page 112: Security

    ARC-1709 3.6.4 Security  Administrator Password Set setup Administrator Password  User Password Set User Password 112 ARC-1709 Quick Reference Guide...

  • Page 113: Secure Boot Menu

    User mode with enrolled Platform Enabled Key(PK) 2.CSM function is disabled. Secure Boot mode selector. ‘Custom’ Mode Standard Secure Boot Mode enables users to change Image Execution Custom[Default] policy and manage Secure Boot Keys. ARC-1709 Quick Reference Guide 113...

  • Page 114: Key Management

    ARC-1709 3.6.4.1.1 Key Management Item Option Description Enabled, Install Factory default Secure Boot Keys Default Key Provision Disabled[Default] when System is in Setup Mode. 3.6.5 Boot 114 ARC-1709 Quick Reference Guide...

  • Page 115: Save And Exit

    BIOS setting. Launch EFI Shell from Attempts to Launch EFI Shell application (Shellx64.efi) from one of the filesystem device available filesystem devices. ARC-1709 Quick Reference Guide 115...
