EUROSTER 11WB USER MANUAL
CENTRAL HEATING SYSTEM CONTROLLER
MANUFACTURER: P.H.P.U. AS, Polanka 8a/3, 61-131 Poznań, POLAND
1
INTRODUCTION
Carefully study this user manual to learn how to correctly operate the EUROSTER 11WB central
heating system controller.
2
FIELD OF APPLICATION
EUROSTER 11WB is a modern microprocessor-based controller used to control central
heating (CH) systems with coal/culm-fired blow boilers and utility hot water (UWH) tank.
The controller measures the boiler water temperature and depending on its relation to the
preset temperature respectively adjusts flow of the air supplied to the boiler furnace and turns
ON/OFF the CH system circulation pump and the UHW system pump.
The EUROSTER 11WB controller features the ANTY STOP
function that prevents idle pump rotors against seizing. Once
the heating season is over, every 14 days the function
automatically turns ON the pumps for 30 seconds. To that end
the controller must be left powered up.
3

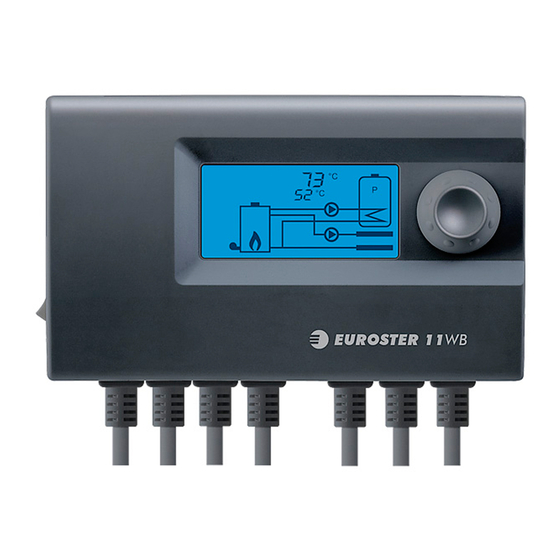

VISIBLE CONTROLLER ELEMENTS
4
INSTALLATION
Hazardous voltages may be present inside the controller and on its cables.
Therefore it is expressly forbidden to install the device prior to disconnecting
its mains power supply. Only qualified technicians may install the controller.
Do not install any devices showing signs of any mechanical damage.
EUROSTER 11WB
1. 230 VAC~ mains input
2. 230 VAC~ power supply to CH pump
3. 230 VAC~ power supply to UHW pump
4. 230 VAC~ power supply to fan
5. Input for UHW temperature sensor cable
6. Input for CH water temperature sensor cable
7. Mains switch
8. LCD display
9. Knob
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11WB and is the answer not in the manual?

Questions and answers

Summary of Contents for EUROSTER 11WB

  • Page 1 CENTRAL HEATING SYSTEM CONTROLLER MANUFACTURER: P.H.P.U. AS, Polanka 8a/3, 61-131 Poznań, POLAND INTRODUCTION Carefully study this user manual to learn how to correctly operate the EUROSTER 11WB central heating system controller. FIELD OF APPLICATION EUROSTER 11WB is a modern microprocessor-based controller used to control central heating (CH) systems with coal/culm-fired blow boilers and utility hot water (UWH) tank.
  • Page 2: Controller Display

    EUROSTER 11WB USER MANUAL The procedure: a) Mount the controller: using a pair of supplied nylon nail-it fasteners (anchors) mount the controller box on a  wall (or any other suitable supporting structure) using fasteners fix controller cables to the wall.
  • Page 3: Turning The Controller On

    EUROSTER 11WB USER MANUAL 5. State of the heat source (boiler) furnace – animated icon, see description below 6. Fan icon lit while the fan is running 7. UHW pump icon lit while the pump is running 8. CH system pump icon lit while the pump is running 9.
  • Page 4 EUROSTER 11WB USER MANUAL FACTORY (DEFAULT) PRESETS Proceed as follows to restore factory presets: Press the knob and while holding it depressed turn the controller off and on.  ”Fd” (factory defaults) is displayed. Release the knob. Digit 0 is displayed.
  • Page 5 EUROSTER 11WB USER MANUAL Mean tank temperature that the controller will attempt to maintain manipulating the pump. ATTENTION: Too low tank temperatures (35-40ºC) help to grow various bacteria within the tank, including the Legionella bacteria. 8. UHW pump hysteresis Difference between the temperature at which the controller turns the pump on and the temperature at which the controller turns it off (provided boiler is hot enough, see set point 9 below).
  • Page 6 EUROSTER 11WB USER MANUAL ATTENTION: Should a (colliding) value making impossible correct operation of the controller be preset, then the alarm icon will appear on the display, the colliding presets will be displayed alternatively, and (after a few seconds) the last correct combination of presets will be automatically restored.
  • Page 7: Fan Operation

    EUROSTER 11WB USER MANUAL up cycle – it turns the pump OFF in order to fire the new batch of fuel up as soon as possible. Should the flame to extinct, the controller will automatically turn the fan OFF. ATTENTION: The controller will not automatically turn the fan OFF if it was earlier manually turned OFF by the user and not turned back ON.
  • Page 8: Troubleshooting

    Controller knob operates erratically Pulse generator failure. Have the controller serviced. 16 COMPATIBILITY WITH STANDARDS/CERTIFICATES The EUROSTER 11WB controller meets all requirements of the EMC and the LVD EU Directives. The CE Conformity Declaration is available on the http://www.euroster.com.pl Internet webpage.
  • Page 9: Electronic Waste Management Information

    EUROSTER 11WB USER MANUAL EUROSTER 11WB controller 2. UHW tank temperature sensor 3. UHW tank 4. UHW pump 5. CH boiler 6. Fan 7. Temperature sensor 8. CH pump 9. Radiator (heat load) 20 ELECTRONIC WASTE MANAGEMENT INFORMATION We made every effort to get as a long controller lifetime as possible.
  • Page 10: Euroster 11Wb Controller Warranty Certificate

    EUROSTER 11WB USER MANUAL EUROSTER 11WB CONTROLLER WARRANTY CERTIFICATE Warranty terms: 1. Warranty is valid for 24 months from the controller sale date. 2. Warranty is valid exclusively on the territory of Poland. 3. Claimed controller together with this warranty certificate must be supplied to the seller or directly mailed via Poczta Polska mail operator to the manufacturer.
