AFFUGTERE / DEHUMIDIFIERS /
ENTFEUCHTER / DESHUMIDIFICATEURS

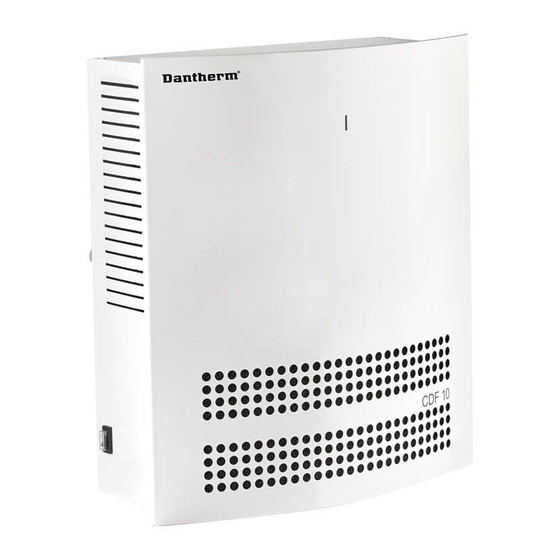

CDF 10
No. 975677 - Version 1 - 14.03.02
D
S
ANSK
IDE
E
P
NGLISH
AGES
D
S
EUTSCH
EITE
F
P
RANCAIS
AGES
Der tages forbehold for trykfejl og ændringer.
Dantherm can accept no responsibility for possible errors and changes.
Irrtümer und Änderungen vorbehalten.
La responsabilité de Dantherm ne peut être engagée en cas d'erreurs et/ou
éventuelles modifications du présent document.
1 - 7
8 - 13
14 - 20
21 - 27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDF 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dantherm CDF 10

Summary of Contents for Dantherm CDF 10

  • Page 1 21 - 27 Der tages forbehold for trykfejl og ændringer. Dantherm can accept no responsibility for possible errors and changes. Irrtümer und Änderungen vorbehalten. La responsabilité de Dantherm ne peut être engagée en cas d’erreurs et/ou éventuelles modifications du présent document.

  • Page 2: Table Of Contents

    Contents 1. Description of function............................9 1.1 Technical data............................9 2. Installation of the unit............................10 2.1 Suspension of the CDF 10 unit......................10 2.2 Condensate outlet ..........................10 2.3 Access to the control..........................10 3. Connection of power supply..........................11 4. Operation ...............................11 4.1 LED indication / Switch ........................11 4.2 Built-in hygrostat..........................11...

  • Page 3: Description Of Function

    1. Description of function CDF 10 is working in accordance with the condensation principle. The humid air is drawn into the unit by a fan. When passing through the evaporator the air is cooled down to below dew point and water vapor is condensed into water, which is drained away.

  • Page 4: Installation Of The Unit

    2. Installation of the unit 2.1 Suspension of the CDF 10 unit The wall suspension bar supplied with the unit is fixed to the wall and the dehumidifier is hung up on it. It is important to mount the unit in a horizontal position to secure correct outflow of the condensate water.

  • Page 5: Access To The Control

    2.3 Access to the control Remove the front panel by unscrewing the two screws on the top of the dehumidifier. Lift the front panel vertically upwards and then pull it horizontally away from the unit. The control of the unit is located in a box behind the front panel. To get access to the control unscrew the 4 screws on the sides.

  • Page 6: Defrosting

    NOTE! If the air humidity is below 50%RH, the unit will not start when the power is connected. 4.3 Defrosting If the temperature falls to below 20ºC the evaporator may start to ice up after a short time. The defrosting function is activated when the evaporator sensor registers a temperature lower than 5ºC, after which the control will let the unit operate in dehumidification mode for another 30 minutes.

  • Page 7: Cleaning Of The Dehumidifier

    If you cannot find the reason for the fault, switch off the unit immediately in order to prevent further damage. Contact a service technician or a Dantherm representative. NOTE! If the dehumidifier is not functioning correctly, shut it down immediately.

  • Page 8: Cooling Circuit

    7. Kølekredsløb / Cooling Circuit / Kältekreislauf / Circuit de réfrigération CDF 10 1. Kompressor, compressor, Kompressor, compresseur 2. Fordamper, evaporator, Verdampfer, évaporateur 3. Luftkølet kondensator, air-cooled condensor, luftgekühlter Kondensator, condenseur à air 4. Kapillarrør, capillary tube, Kapillarrohr, tubes capillaires 5.
  • Page 9 8. El-diagram / Wiring diagram / Schaltplan / Schéma électrique CDF 10 - 1 x 230V / 50Hz...

  • Page 10: Wiring Diagram

    Ordforklaring til el-diagram / Legend for wiring diagram / Legende für Schaltplan / Légende du schéma électrique CDF 10 Position Beskrivelse Designation Beschreibung Désignation Kondensatorføler Condenser sensor Kondensatorfühler Sonde du condenseur Fordamperføler Evaporator sensor Verdampferfühler Sonde d’évaporateur Ventilator Ventilator Ventilateur...
  • Page 11 CDF 10 - 1 x 230V / 50Hz...
  • Page 12 CDF 10 - 1 x 230V / 50Hz Pos. Dantherm. no. Beskrivelse Designation Beschreibung Description 084767 Vægbeslag Wall suspension bar Wandkonsole Barre d’ancrage 293647 Kabinet kpl. Housing, cpl. Gehäuse, kpl. Carrosserie cpl. 601933 Kompressor Compressor Kompressor Compresseur 510051 Startrelæ Starting relay Startrelais Relais de démarrage...
