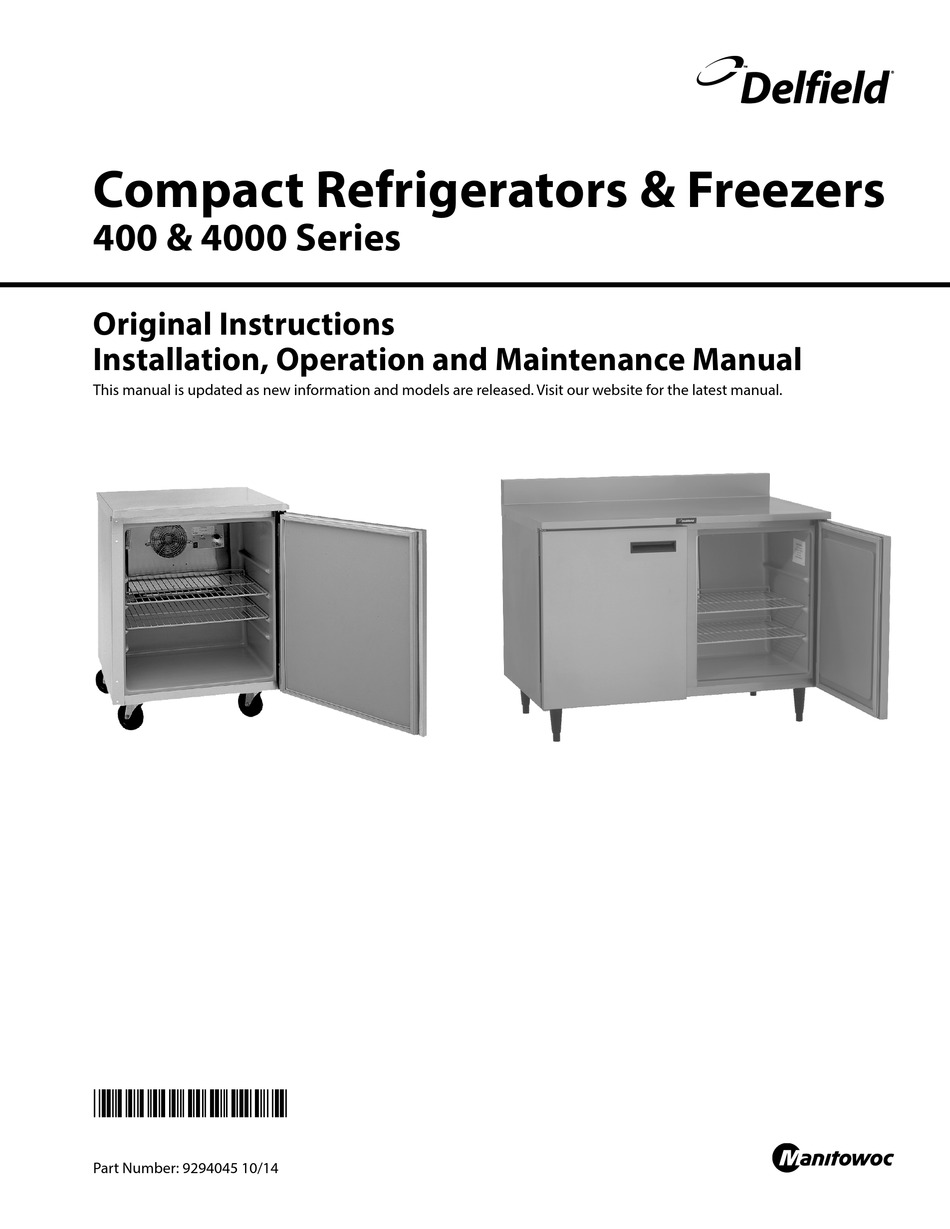

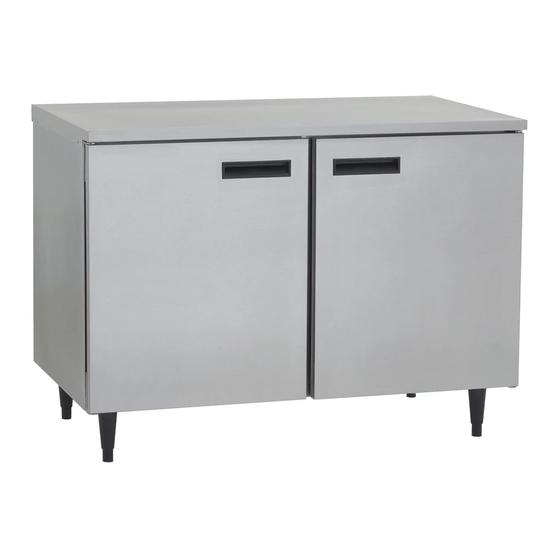

- Page 1 Compact Refrigerators & Freezers 400 & 4000 Series Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. *9294045* Part Number: 9294045 10/14...
- Page 2 Safety Notices Warning Do not use electrical appliances or accessories other Warning than those supplied by the manufacturer. Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure Warning to follow instructions in this manual can cause property Use caution when handling metal surface edges of all damage, injury or death.
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Model Numbers ........................5 Serial Number Location ..................... 5 Warranty Information ......................5 Regulatory Certifications ....................5 Section 2 Installation Location ..........................7 Weight of Equipment ......................8 Clearance Requirements ....................8 Dimensions ......................... 8 Electrical Service ........................ - Page 4 Table of Contents (continued) THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9294045 10/14...
-
Page 5: General Information
Model Numbers Serial Number Location This manual covers standard units only. The serial number on 400 series compact refrigerators and freezers is printed on the right side of the interior back wall. NOTE: For custom units, consult Manitowoc KitchenCare at 1-844-724-CARE.. - Page 6 General Information Section 1 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9294045 10/14...
-
Page 7: Installation
Section 2 Installation Location DANGER Installation must comply with all applicable fire and Warning health codes in your jurisdiction. This equipment must be positioned so that the plug is accessible unless other means for disconnection from DANGER the power supply (e.g., circuit breaker or disconnect Use appropriate safety equipment during installation switch) is provided. -
Page 8: Weight Of Equipment
Installation Section 2 Dimensions • Do not install the equipment directly over a drain. Steam rising up out of the drain will adversely affect Model Length Depth Height operation, air circulation, and damage electrical / electronic components. 27” (69cm) 28.5” (72cm) 39.5”... -
Page 9: Electrical Service
Section 2 Installation Electrical Service RATED AMPERAGES, HORSEPOWER, VOLTAGE & POWER CORD CHART DANGER Units with plugs are supplied with approximately 6ft (183cm) cords. Check all wiring connections, including factory terminals, before operation. Connections can become Models 406 and 407 may be stacked using a stacking collar. loose during shipment and installation. -
Page 10: Caster Or Leg Installation
Installation Section 2 Caster Or Leg Installation Plate Casters DANGER With Locks Legs or casters must be installed and the legs or casters must be screwed in completely to prevent bending. When casters are installed the mass of this unit will allow it to move uncontrolled on an inclined surface. -
Page 11: Caster And Leg Mounting Detail
Section 2 Installation CASTER AND LEG MOUNTING DETAIL 0.94” A universal bolt hole pattern is provided on the bottom of (24mm) the cabinet. It will accommodate any leg or caster. Simply line up the plate holes with the corresponding cabinet holes. - Page 12 Installation Section 2 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9294045 10/14...
-
Page 13: Operation
Section 3 Operation Caution DANGER Do not throw items into the storage area. Failure to The on-site supervisor is responsible for ensuring that heed this recommendation could result in damage to operators are made aware of the inherent dangers of operating this equipment. -
Page 14: Controls/Programming/Settings
Operation Section 3 Controls/Programming/Settings FREEZERS After the unit is connected to power it will automatically REFRIGERATORS begin operating. With the doors closed, the temperature of the cabinet should reach 0°F (-18°C) on freezers in about After the unit is connected to power it will automatically one hour. -
Page 15: Evaporator Fan Operation
Section 3 Operation on the amount of frost accumulated on the evaporator coil. EVAPORATOR FAN OPERATION After the defrost cycle is complete, the control returns Cooling Cycle Defrost Cycle to a normal refrigeration cycle, however the evaporator Compressor Compressor Compressor fan motor will not switch on for two minutes AFTER the compressor and condenser fan motor have begun operating. - Page 16 Operation Section 3 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9294045 10/14...
-
Page 17: Maintenance
Section 4 Maintenance Cleaning and Sanitizing Procedures DANGER It is the responsibility of the equipment owner to Caution perform a Personal Protective Equipment Hazard Assessment to ensure adequate protection during Maintenance and servicing work other than cleaning as maintenance procedures. described in this manual must be done by an authorized service personnel. -
Page 18: Interior Cleaning
Maintenance Section 4 INTERIOR CLEANING EXTERIOR CLEANING Notice Notice When cleaning interior and exterior of unit, care should Never use an acid based cleaning solution on exterior be taken to avoid the front power switch and the rear panels! Many food products have an acidic content, power cord. -
Page 19: Drain
Section 4 Maintenance DRAIN DOORS/HINGES Each unit has a drain located inside the unit that removes Over time and with heavy-use doors, the hinges may the condensation from the evaporator coil and routes it become loose. If this happens, tighten the screws that to an external condensate evaporator pan. - Page 20 Maintenance Section 4 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9294045 10/14...
-
Page 21: Troubleshooting
Section 5 Troubleshooting Problem -> Cause -> Correction Chart Problem Cause Correction Cabinet not Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker. running Power cord unplugged. Plug in power cord. Thermostat set too high. Set thermostat to lower temperature. Main power switch turned off. - Page 22 Troubleshooting Section 5 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9294045 10/14...
- Page 24 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
