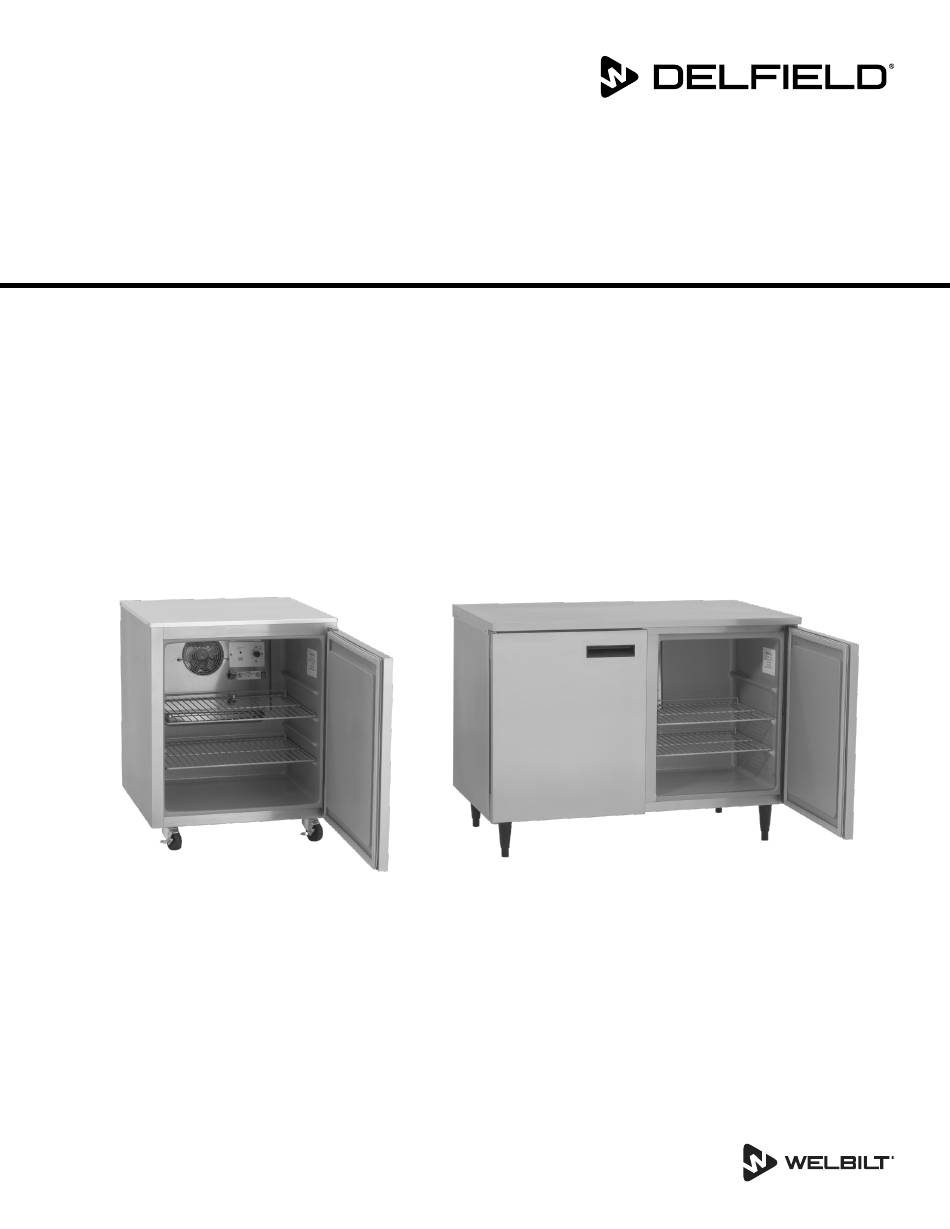

- Page 1 International Work Top & Undercounter Refrigerators & Freezers Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 9294486 06/17...
- Page 2 Operate equipment only on the type of electricity indicated on the specification plate. • Unplug the unit before making any repairs. • Retain this manual for future reference. For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com...
-
Page 3: Table Of Contents
• Register your product for warranty. • Verify warranty information. • View and download a copy of your warranty. Regulatory Certifications Models are certified by: National Sanitation Foundation (NSF) European Conformity For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com... -
Page 4: Refrigeration Specifications
230-240, 50, 1 CEE 7/7 1.056 (269g) (107kg) Undercounter Freezer With Subtop And 3.75” Casters 6.5oz 168lbs 407CA-CE 5.7/161 4.6/4274 3922 230-240, 50, 1 CEE 7/7 .723 (184g) (76kg) For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com... -
Page 5: Installation
The unit must be installed in a stable condition with the front wheels locked. Locking the front casters after installation is the owner’s responsibility. For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com... -
Page 6: Caster Or Leg Installation
6” Leg - 3234569 3” Caster - 3234024 2” Caster - 3234148 5” Caster - 3234161 6” Leg - 3234791 For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com... -
Page 7: Refrigerator Temperature Control Operation
Technical Support at the condensing unit and evaporator fans is interrupted and 1-800-733-8829 if you are unsure of the proper function. the defrost heater is energized. The defrost heater warms For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com... -
Page 8: Freezer Models 403 & 407 Temperature Control Operation
Cooling Cycle Defrost Cycle Compressor On Compressor Off Compressor Off Evap Fan Evap Fan Evap Fan Evap Fan Evap Fan Evap Fan Refrigerator Freezer 4000 Refrigerator 4000 Freezer For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com... -
Page 9: Maintenance
Clean the condenser with a vacuum cleaner or stiff brush. If extremely dirty, a commercially available condenser cleaner may be required. For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com... - Page 10 (see illustration 2). Tighten the screws. Illustration 1: Illustration 2: spacer outside spacer inside For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com...
-
