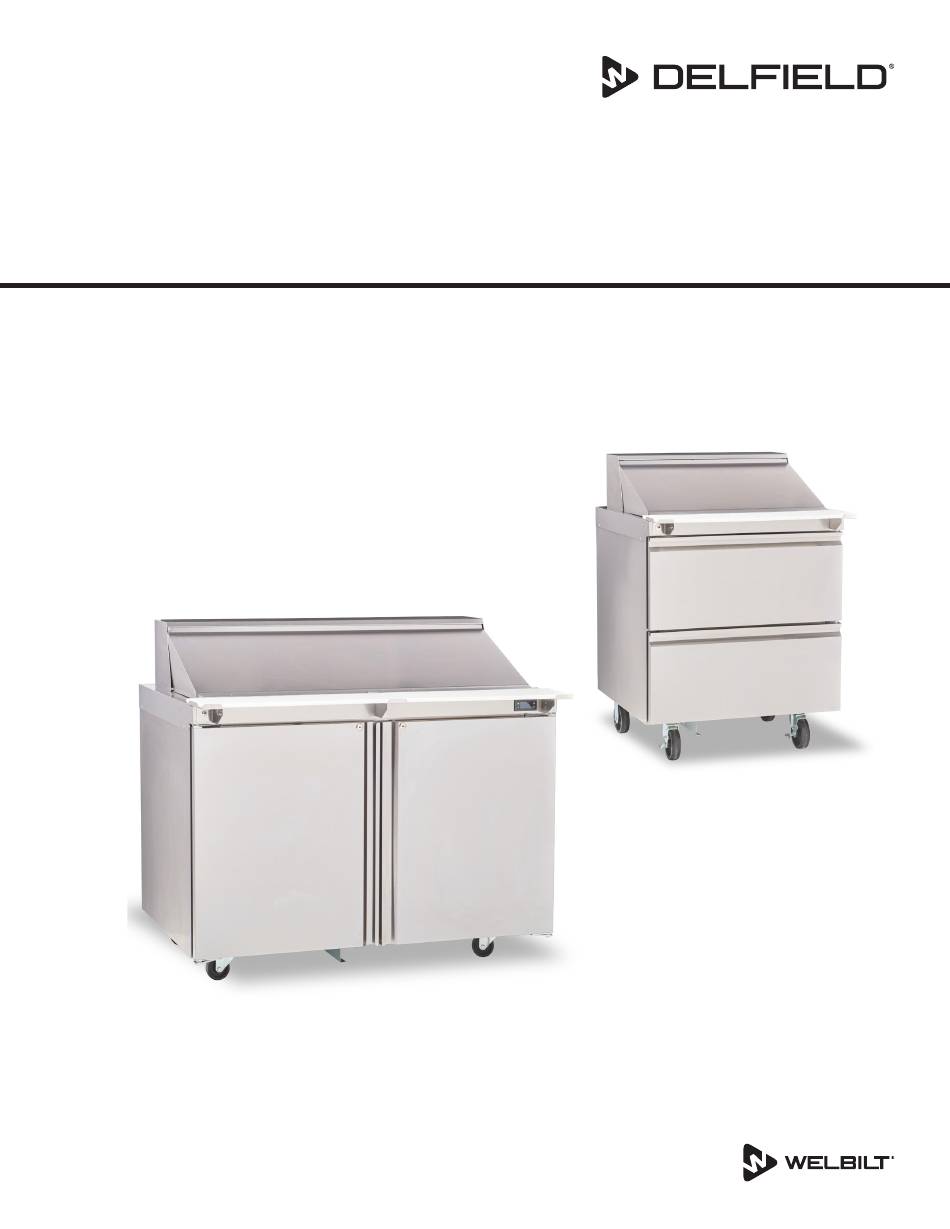

- Page 1 Fresh Solutions, Fit for You Compact Refrigerators 4400P Series Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. 9295093 Part Number: 9295093 12/18...
- Page 2 Safety Notices Warning This product contains chemicals known to the State of Warning California to cause cancer and/or birth defects or other Read this manual thoroughly before operating, installing reproductive harm. Operation, installation, and servicing or performing maintenance on the equipment. Failure of this product could expose you to airborne particles to follow instructions in this manual can cause property of glasswool or ceramic fibers, crystalline silica, and/...
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Serial Number Information ....................4 Warranty Information......................4 Regulatory Certifications ....................4 Model Numbers ........................ 4 Section 2 Installation Location ..........................6 Weight of Equipment ......................7 Clearance Requirements ....................7 Dimensions ........................8 Capacity .......................... -
Page 4: General Information
4427NP-8 whcn ialltng fNr paros Nr scrvtic. 4427NP-9M 4427NP-12M One Door Mega Top Warranty Information 4432NP-12M 4448NP-6 Visit www.delfield.com/warranty to: 4448NP-8 Two Door Salad Top • Register your product for warranty. 4448NP-12 4448NP-6M • Verify warranty information. 4448NP-12M Two Door Mega Top •... - Page 5 Section 1 General Information Model Description D4464NP-18M Four Drawer Mega Top D4464NP-24M D4472NP-12 Six Drawer Salad Top D4472NP-18 D4472NP-18M D4472NP-24M Six Drawer Mega Top D4472NP-30M Refrigerated Front Breathers With Doors & 4” S/S Backsplash ST4427N-6 One Door Salad Top ST4427NP-8 ST4448NP-6 ST4448NP-8 Two Door Salad Top...
-
Page 6: Installation
Section 2 Installation The location selected for the equipment must meet the DANGER following criteria. If any of these criteria are not met, select Installation must comply with all applicable fire and another location. health codes in your jurisdiction. • Units are intended for indoor use only. •... -
Page 7: Weight Of Equipment
• Do not pack refrigerator so full that air cannot circulate. D4464NP-24M • Avoid hot corners and locations near stoves and ovens. • These cabinets have Delfield’s “front-breathing” design. They may be installed flush against a wall or built into a counter as required. -
Page 8: Dimensions
Installation Section 2 Dimensions Model Length Depth Work Height D4472NP-12 Model Length Depth Work Height D4472NP-18 Refrigerated Front Breathers With Doors D4472NP-18M 72” (183cm) 31.50” (80cm) 36.00” (91cm) 4427NP-6 D4472NP-24M 4427NP-8 D4472NP-30M 27” (69cm) 31.50” (80cm) 36.00” (91cm) 4427NP-9M Refrigerated Front Breathers With Doors & 4” S/S Backsplash 4427NP-12M ST4427NP-6 27”... -
Page 9: Capacity
Section 2 Installation 1/6 Pan 1/6 Pan Model Shelf Area Base Volume Model Shelf Area Base Volume Capacity Capacity 4448NP-6 ST4460NP-8 4448NP-8 ST4460NP-12 5.48ft2 (5091cm2) 16.00ft3 (453L) 7.19ft2 (6680cm2) 20.20ft3 (572L) 4448NP-12 ST4460NP-12M 4448NP-18M ST4460NP-18M 4460NP-8 ST4464NP-8 4460NP-12 ST4464NP-12 7.76ft2 (7209cm) 21.60ft3 (612L) 4460NP-12M 7.19ft2 (6680cm2) -
Page 10: Electrical Service
Installation Section 2 Electrical Service RATED AMPERAGES, HORSEPOWER, VOLTAGE & POWER CORD CHART DANGER Maximum 6ft (1.8m) cord with three-pronged plug. Plug into a three-pronged wall outlet for proper grounding of the Check all wiring connections, including factory terminals, cabinet to begin operation. Do not use an adapter to connect before operation. -
Page 11: Drain Connections
Section 2 Installation Drain Connections Voltage, Cycle, NEMA Model H.P. Phase Plug Warning D4464NP-8 D4464NP-12 Moisture collecting from improper drainage can create a D4464NP-12M 115, 60, 1 5-15P slippery surface on the floor and a hazard to employees. D4464NP-16 It is the owner’s responsibility to provide a container or D4464NP-18M outlet for drainage. -
Page 12: Refrigeration
Installation Section 2 Refrigeration Model BTU/Hour Heat of Charge Capacity Rejection Model BTU/Hour Heat of D4472NP-12 Charge Capacity Rejection D4472NP-18 Refrigerated Front Breathers With Doors D4472NP-18M 2973 2042 72 Grams R290 4427NP-6 D4472NP-24M 4427NP-8 D4472NP-30M 2038 60 Grams R290. 4427NP-9M Refrigerated Front Breathers With Doors &... -
Page 13: Level & Stable
Section 2 Installation Level & Stable When utilizing the lower position on a model with drawers, only 4” deep pans can be used in the top. When utilizing the After the cabinet has been placed in the desired location, lower position on a door model, 4” or 6” deep pans may be cabinets with legs must be leveled. -
Page 14: Optional Overshelf Installation Instructions
Installation Section 2 Optional Overshelf Installation Instructions 12.00” (30cm) 10.00” (25cm) If the unit is ordered to have the overshelf: 1. Remove the three screws from each top side of the cabinet (total six screws). 2. Set the overshelf in-place on the top of the cabinet. 3. -
Page 15: Heavy Duty Cutting Board Bracket Mounting
Section 2 Installation Heavy Duty Cutting Board Bracket Mounting Supplies Needed • #3 Phillips Screwdriver Parts Included For 27” & 32” Units Description Part No. Left Bracket Varies Right Bracket Varies Silicone 9291311 Screw, pan head 9321519 Screw, flat head 9324092 Fender Washer 9324043... - Page 16 Installation Section 2 Heavy Duty Cutting Board Bracket Mounting Instructions 3. Install the cutting board onto the brackets. 1. Attach each bracket to the top of the unit with one flat • Make final bracket adjustments so the cutting board head screw (9324092).
-
Page 17: Operation
Section 3 Operation Warning DANGER The operator of this equipment is solely responsible The on-site supervisor is responsible for ensuring that for ensuring safe holding temperature levels for all operators are made aware of the inherent dangers of food items. Failure to do so could result in unsafe food operating this equipment. -
Page 18: Power To Cool
Operation Section 3 Power To Cool Efficient Operation • After the cabinet is connected to the power source it will • Cabinets with pans should be operated with pans in automatically begin in defrost. place. Operating the cabinet without all pans in place may damage the cabinet. -
Page 19: Maintenance
Section 4 Maintenance Warning DANGER When cleaning interior and exterior of unit, care should It is the responsibility of the equipment owner to perform be taken to avoid the front power switch and the rear a Personal Protective Equipment Hazard Assessment power cord. -
Page 20: Preventing Blower Coil Corrosion
Maintenance Section 4 PREVENTING BLOWER COIL CORROSION tracks are dishwasher safe or can be cleaned in a sink with detergents and a soft bristle brush. Drawers and tracks To help prevent corrosion of the blower coil, store all acidic should be cleaned on a weekly basis. items, such as pickles and tomatoes, in seal-able containers. -
Page 21: Cleaning The Condenser Coil
Section 4 Maintenance Cleaning the Condenser Coil In order to maintain proper refrigeration performance, the condenser fins must be cleaned of dust, dirt and grease regularly. It is recommended that this be done monthly. If conditions are such that the condenser is totally blocked in a month, the frequency of cleaning should be increased. - Page 22 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM WWW.WELBILT.COM Welbilt provides the world’s top chefs, and premier chain operators or growing independents with industry leading equipment and solutions. Our cutting-edge designs and lean manufacturing tactics are powered by deep knowledge, operator insights, and culinary expertise.
