OPERATING INSTRUCTIONS

To operate the inverter turn the inverter On/Off switch to ON. The inverter will beep
momentarily while it carries out a brief self-analysis before supplying power to the
AC socket. To turn off, turn the inverter On/Off switch to OFF.
To help prevent the inverter being overloaded:
1. Ensure appliances are turned off before turning the inverter on.
2. If multiple appliances are being run, turn on one at a time.

MOUNTING INSTRUCTIONS

Intelli-Wave inverters are designed for indoor, out of weather use only. During operation,
the inverter should be in a dry, cool and well-ventilated area as close to the batteries as
possible, but not in the same compartment as the batteries. Ensure the inverter is away
from flammable materials and fumes.
The inverter end plates include a mounting flange for easy mounting. If permanently fixed,
the inverter should be mounted to a suitable horizontal or vertical panel, with at least
10cm clearance from the end plates to provide adequate ventilation for the cooling fan.

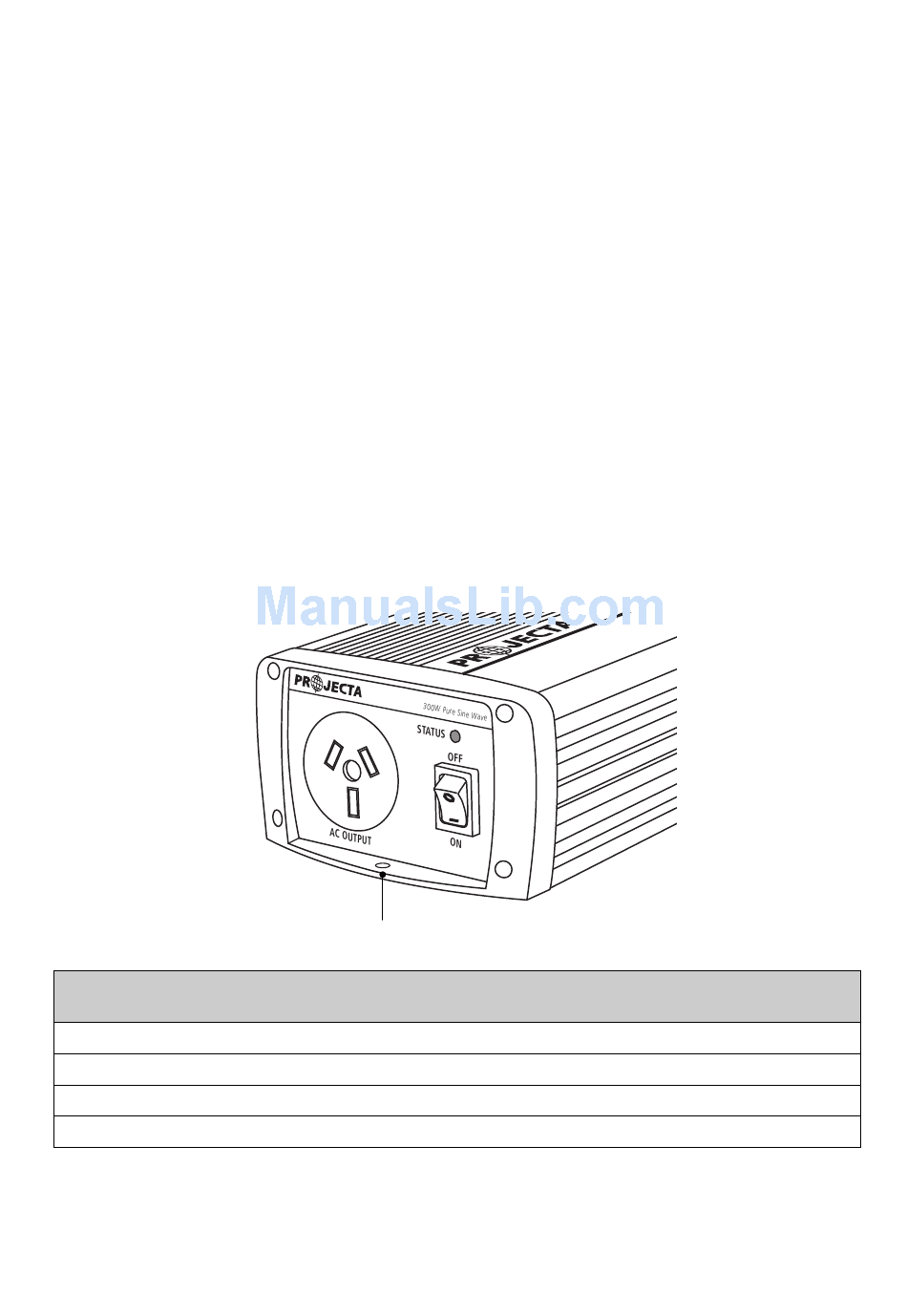

3.5mm mounting hole
Part No.
IP150
IP300
IP600
IP1000
Inverter Dimensions
Length
232mm
252mm
250mm
360mm
Width
108mm
108mm
168mm
168mm
Height
63mm
63mm
81mm
81mm
