Pro-wave inverter 12 volt, pure sine wave

Advertisement

Quick Links

PRO-WAVE
INVERTER
12 Volt, Pure Sine Wave
P/No.s PW500, PW1100,
PW1600, PW2100 & PW2700
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Projecta PW500

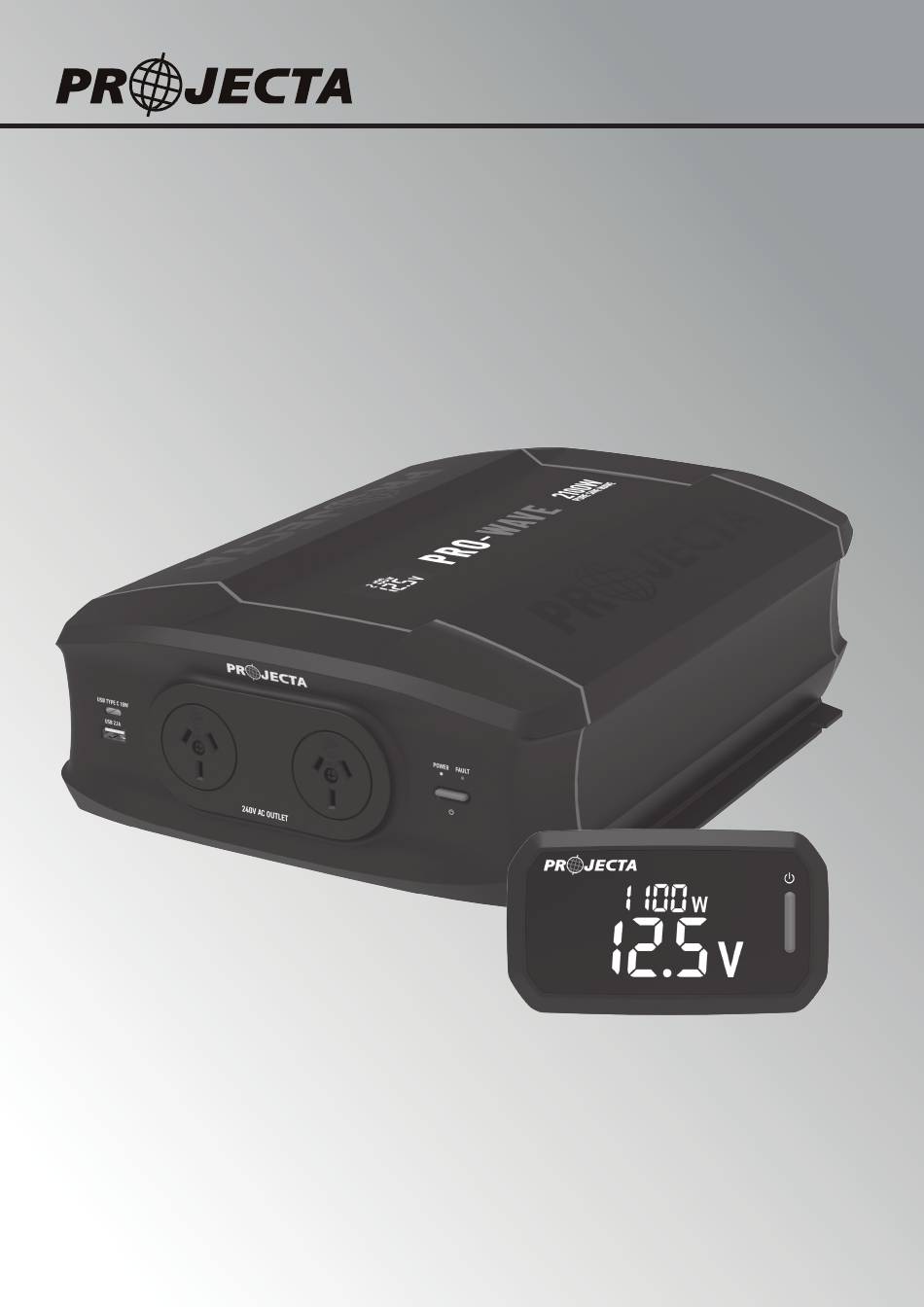

  • Page 1 PRO-WAVE INVERTER 12 Volt, Pure Sine Wave P/No.s PW500, PW1100, PW1600, PW2100 & PW2700...
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION Please read this manual thoroughly before use and store in a safe place for future reference. WARNINGS • For indoor use out of weather only. • For use with negatively earthed vehicles & systems only. • Internally bonded for safety, battery DC negative to case & AC socket earth. •...
  • Page 3: Remote Control Display

    Playstation and run a fan, all of which may not operate properly on a modified sine wave inverter. FULLY ISOLATED DESIGN Safety is paramount around 240V and in particular with inverters which is why Projecta fully electrically isolates the DC (and therefore battery posts, vehicle chassis, etc) from the 240V AC circuit. DESIGNED TO AS4763 Designed in accordance with Australian Standard AS4763: 2011 – Safety of Portable Inverters.
  • Page 4: Specifications

    SPECIFICATIONS P/No. PW500 PW1100 PW1600 PW2100 PW2700 12VDC Battery/Vehicle (11V–14.5VDC) Input Input Current 130A 188A 247A 318A (Max DC Amps) Input Current 108 A 157 A 206 A 265A (Rated DC Amps) 900mA 1000mA 1200mA 1200mA 1300mA No Load Current...
  • Page 5: Product Overview

    PRODUCT OVERVIEW PW500 Power & Fault USB Type C Lights Terminals Power On Switch AC Output Remote Chassis GND Socket Socket Input FRONT BACK PW1100W/PW1600 Power & Fault Terminals USB Type C Lights Power On Switch Remote Chassis GND AC Output...
  • Page 6 It is recommended to place cable in corrugated conduit to protect from damage. The following table lists supplied cable sizes for Projecta Pro-Wave Inverters: Supplied Cable PW500 1.1m, 8mm²...
  • Page 7: Mounting Instructions

    The inverter base plate includes a mounting flange for easy mounting. If permanently fixed, the inverter should be mounted to a suitable horizontal or vertical panel, with at least 50cm clearance from the end plates to provide adequate ventilation for the cooling fan. Part No. Inverter Dimensions Length Width Height Weight PW500 300mm 168.7mm 84.7mm 2.3kg PW1100 405.5mm 220mm 103.3mm 4.4kg PW1600 419.5mm...
  • Page 8 High Battery Voltage Shutdown Blue On, Red On B) PW500, PW1100, PW1600, PW2100 & PW2700 These inverters are equipped with an audible alarm and a multi-function LCD display during normal operation, the LCD display will alternate between Volts and the load being drawn measured in Watts.
  • Page 9: Remote Control

    REMOTE CONTROL An optional remote can be purchased for the PW500, PW1100, PW1600, PW2100 and PW2700: P/No. PWREMOTE-1. To install the remote control, insert the plug into the remote input socket on the rear panel.
  • Page 10: Troubleshooting (Faq)

    Connection to an undersized battery could damage the battery and will result in the inverter shutting down within a short period due to low battery voltage. The amount of power drawn from the battery is proportional to the inverter load. P/No. PW500 PW1100 PW1600 PW2100...
  • Page 11 Capacitive Loads such as many TV’s or many electronic appliances require a large surge current to start only when they have not been used for a while. This is often due to large capacitors in the power supply that must be quickly charged when the appliance is turned on. If the appliance is not used for a few days these capacitors slowly go flat. Resetting the inverter a couple of times may allow these appliances to work.
  • Page 12: Warranty Statement

    WARRANTY STATEMENT Applicable only to product sold in Australia Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked on the invoice.

This manual is also suitable for:

Pw1100Pw1600Pw2100Pw2700
