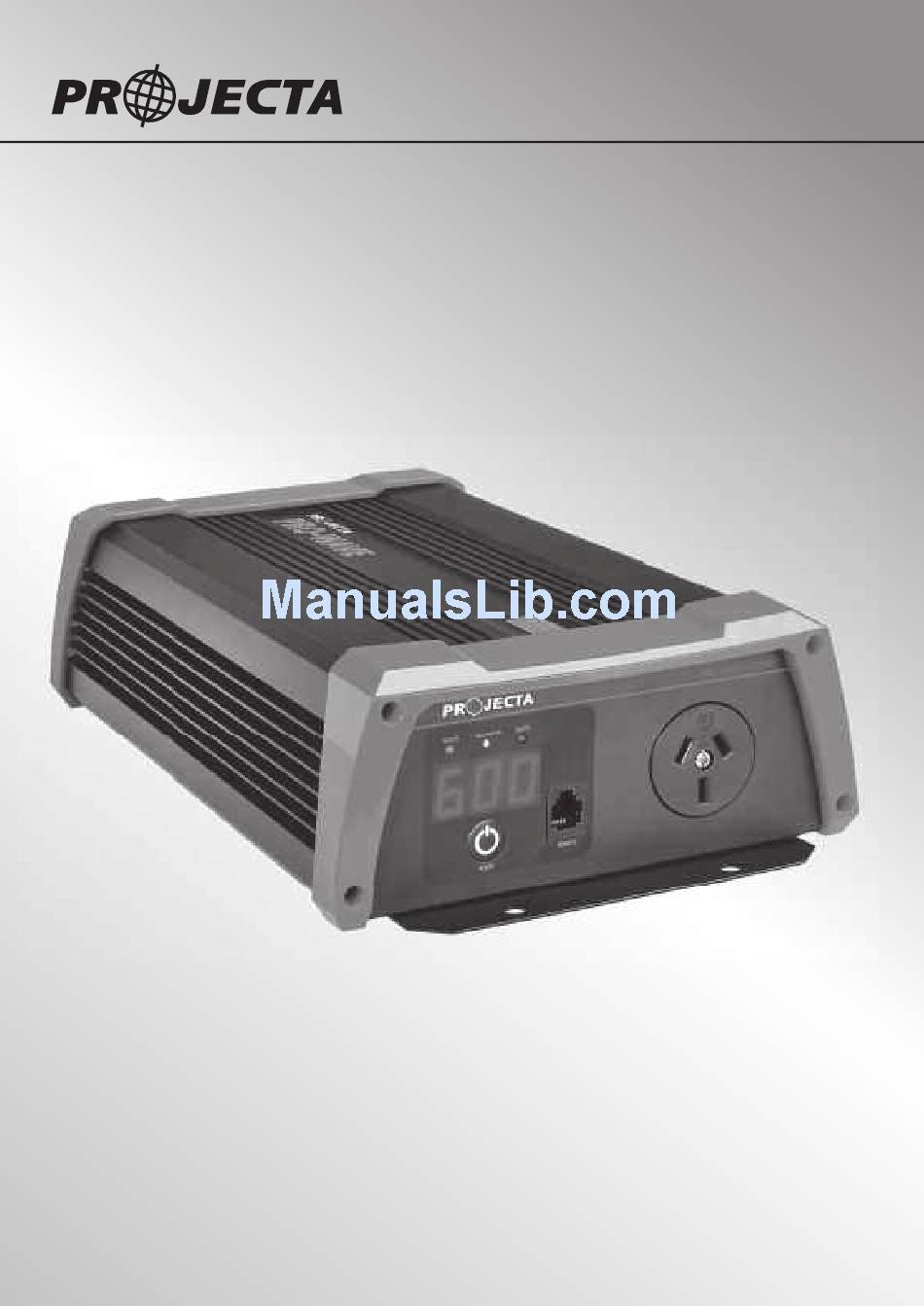

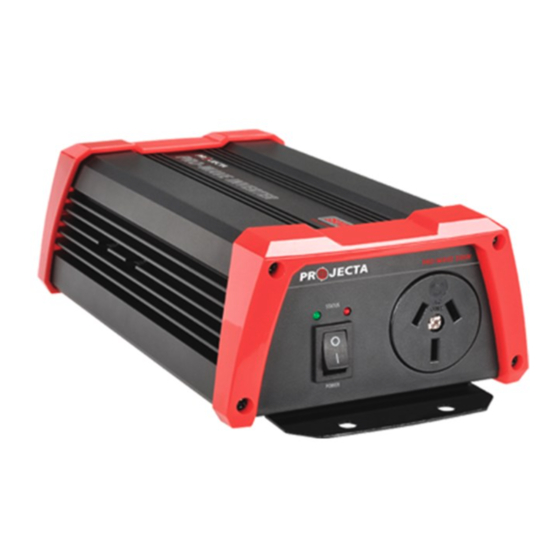

  • Page 1 PRO-WAVE INVERTER 12 VOLT, PURE SINE WAVE P/No.s PW150, PW350, PW600, PW900 & PW1800...
  • Page 2: Important Safety Information

    • Batteries can be dangerous; follow all battery manufacturer’s instructions and warnings. • Never operate the inverter without the DC negative input connected direct to the battery and never install a fuse, circuit breaker or battery switch in the negative supply line (PW150 excepted). FEATURES PURE SINE WAVE OUTPUT There are two different types of inverters, modified sine wave and pure sine wave.
  • Page 3: Specifications

    FULLY ISOLATED DESIGN Safety is paramount around 240V and in particular with inverters which is why Projecta fully electrically isolates the DC (and therefore battery posts, vehicle chassis, etc) from the 240V AC circuit. DESIGNED TO AS4763 Designed in accordance with Australian Standard AS4763: 2011 – Safety of Portable Inverters.
  • Page 4: Product Overview

    PRODUCT OVERVIEW PW150 FRONT VIEW REAR VIEW Cigarette Plug DC AC Output Socket Input Lead L.E.D Status Indicators PRO-WAVE 150W STATUS 12V DC INPUT POWER On/Off Switch PW350 FRONT VIEW REAR VIEW AC Output Socket L.E.D Status Indicators PRO-WAVE 350W –...
  • Page 5: Connecting The Inverter

    CONNECTING THE INVERTER PW150 The PW150 is fitted with a lead and cigarette plug. Insert the plug into the vehicle’s 12V accessory socket and turn the inverter on. You may need to turn the vehicle’s ignition to ‘accessory’ to supply power to the inverter.
  • Page 6: Mounting Instructions

    OPERATING INSTRUCTIONS To operate the inverter turn the inverter On/Off switch to ON (PW150 & PW350) or press the power button (PW600, PW900 & PW1800). The inverter will beep momentarily while it carries out a brief self-analysis before supplying power to the AC socket (only on PW150 & PW350). To turn off, turn the inverter On/Off switch to OFF (PW150 &...
  • Page 7 UNDERSTANDING YOUR INVERTER A) PW150 & PW350 These inverters are equipped with two status L.E.D’s and audible alarm. During normal operation, the green L.E.D will illuminate solid green. In the event of a fault or error, the alarm will sound and the red L.E.D will illuminate.
  • Page 8: Remote Control

    Input Voltage The input voltage limits are shown in the following table. Operating condition Voltage range Comments Normal 11.0V – 14.0V – Peak performance 13.0V – 14.0V – Low voltage alarm 10.5±0.3V The audible low battery alarm sounds. Low voltage shutdown 10.0±0.3V The unit shuts down to protect the battery from being over-discharged.
  • Page 9 All appliances have a rating plate that shows the amount of power (Watts) used or the current (Amps) drawn under normal use. The following table shows the maximum combined AC Watts or AC Amps which can be run by the inverter. P/No. PW150 PW350 PW600 PW900 PW1800...
  • Page 10: Troubleshooting (Faq)

    TROUBLESHOOTING/FAQ: Q. Why does the inverter turn itself off? A. If the inverter’s audible alarm sounds and a fault L.E.D illuminates, this indicates that there is a fault or error, and the inverter may turn off. Most commonly this would be caused by an appliance that is drawing too much power (overloading), low battery voltage or voltage drop due to insufficient size cables or poor connections (refer to 'Understanding your Inverter' tables, page 7).
  • Page 11 Q. How do I check or change the fuses? Pro-Wave inverters contain internal fuses and should only be checked or replaced by a qualified electrical appliance repairer. THE DC SUPPLY MUST BE DISCONNECTED BEFORE ANY REPAIR, THEN TURN THE ON/OFF SWITCH OF THE INVERTER “ON”...
  • Page 12: Warranty Statement

    WARRANTY STATEMENT Applicable only to product sold in Australia Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the...
