Summary of Contents for Projecta SC110

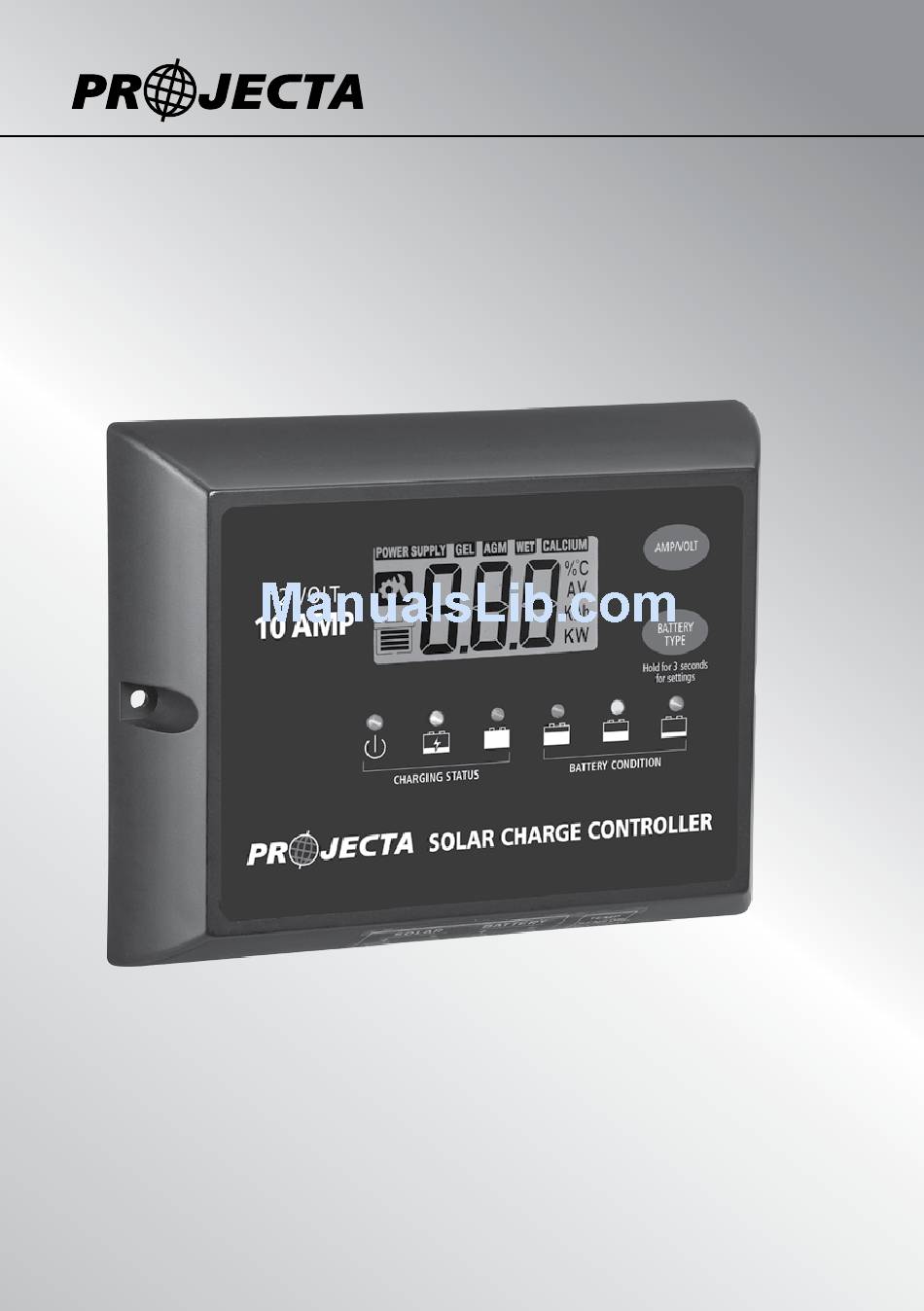

- Page 1 12 VOLT SOLAR CONTROLLER 4 STAGE CHARGING P/No. SC110...
- Page 2 WARNINGS – IMPORTANT PLEASE READ • SC110 is designed for indoor use only • Use SC008 or SC015 for outdoor applications • Do not disassemble the controller. Take to a qualified person if the unit requires repairing. • Lead acid batteries can be dangerous. Ensure no sparks or flames are present when working near batteries •...
- Page 3 P/No. SC110 AMP/VOLT 12 VOLT 10 AMP BATTERY TYPE Hold for 3 seconds for settings CHARGING STATUS BATTERY CONDITION SOLAR CHARGE CONTROLLER Fig 2. For use with 12Volt Solar Panel Only. Suitable for solar panels up to 120 Watts (SC110).
- Page 4 12 VOLT 10 AMP BATTERY TYPE Hold for 3 seconds for settings CHARGING STATUS BATTERY CONDITION SOLAR CHARGE CONTROLLER 20A FUSE (SC110) 40A FUSE (SC120) Fig 3. P/No Battery Connection Solar Array Connection Length of Wire < 1m Size (mm SC110 1.
- Page 5 Press BATTERY TYPE button and hold for 3 seconds to go into your battery type selection mode, the battery type you select will be shown on the LCD meter, the default setting is AGM Battery; the controller will automatically memorize your battery type setting. Caution: Incorrect battery type setting may damage your battery.
- Page 6 Absorption Charge (Stage 2) – Constant voltage charging and battery is over 85%. Equalization Charge* (Stage 3) – Only for WET battery or Calcium battery type, when the battery is deeply drained below 10V, it will automatically run this stage to bring the internal cells as an equal states and fully complement the loss of capacity (Gel and AGM battery do not run Equalization charge).
- Page 7 OPTIONAL EXTERNAL DEVICE The controller provides an optional devices (not included P/No. SC1TMP). Optional external Battery temperature sensor: As an option, the unit provides a port to connect the external battery temperature sensor; If the external battery temperature sensor is connected, the unit will optimize the charging performance subjected to the battery temperature detected and also provide the battery over temperature protection, in some case, if battery over temperature occurs, the controller will automatically stop charging.
- Page 8 SOLAR CONTROLLER SPECIFICATIONS Electrical Parameters 1-1 Rated solar panel amps Max. 1-2 Normal input Solar cell array voltage 15-22 1-3 Max. solar cell array voltage (output has no load) Max. 1-4 The controller lowest operating voltage (at solar or battery side) 1-5 Standby current consumption at night 1-6 Maximum voltage drop-Solar panel to battery 0.25...
- Page 9 NOTES...
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 WARRANTY STATEMENT Brown & Watson International Pty. Ltd. (“BWI”) of 1500 Ferntree Gully Road, Knoxfield, Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue will under normal use and service be free of failures in material and workmanship for a period of one (1) year from the date of the original purchase by the customer as marked on the invoice (see elsewhere for specific warranty period).
