- Page 1 Instruction Manual Petrol Gardening Set 4 in 1 Article No. 84 20 36...
- Page 2 Dear Customers Please familiarize yourself with the proper usage of the garden tool by reading and following each chapter of this manual, in the order presented. Keep these operating instructions for further reference. This operating instruction contains important details for handling the machine. Please pass it on along with the unit if it is handed over to a third party! Please read the safety instructions! These instructions will make it easier for you to handle the machine and help...

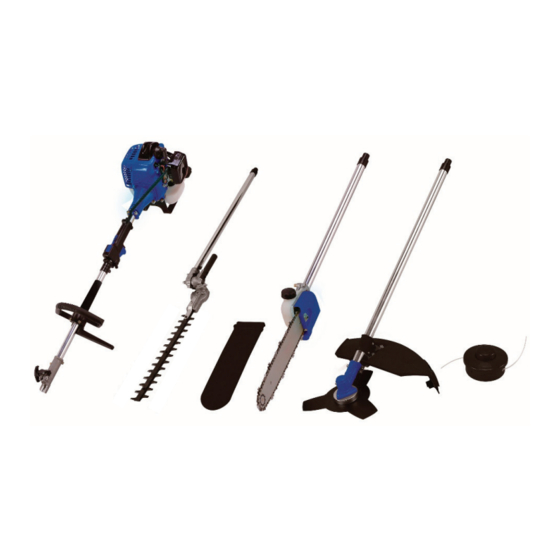

- Page 4 Cutting String Spool Housing Protective Hood Brush Cutter Blade Angle Drive Regulating Screw for Saw Oil Saw Chain Tank for Saw Oil Guide Bar Lubricating Holes for the Nose Sprocket Protective Cover Locking Levers for the Cutter Bar Angle Drive for the Cutter Bar Cutting Bar Throttle Throttle Lock...
-
Page 5: Table Of Contents
Table of Contents Safety Notes ..................Page 2 Safety Precautions against Kickback and Pushback ......Page 4 Personal Safety Equipment ..............Page 4 Symbol Explanation ................Page 5 Preparation and Use ................. Page 6 Changing the Attachments ............. Page 6 Using the Strap ................ -
Page 6: Safety Notes
Safety Notes Please note the following safety notes to avoid malfunctions, damage or physical injury: Please note all warning symbols. The symbols indicate instructions which are important for safety reasons. Always observe these instructions as failure to do so could result in serious injury! Keep the manual always ready to hand when working with the petrol ... - Page 7 Safety Notes Always inspect the petrol garden tool before each use for worn, loose, or damaged parts. Never operate a garden tool that is damaged, improperly adjusted, or is not completely and securely assembled. While clearing the area around the tree, arrange a good foothold and a ...
-
Page 8: Safety Precautions Against Kickback And Pushback
Safety Notes Safety Precautions against Kickback and Pushback Always keep the saw chain sharp. This will ensure a high level of safety against kickback and throwback. Removal of any safety devices, inadequate maintenance or incorrect mounting of the guide bar and saw chain will increase the safety risk and lead to serious injuries due to kickback. -
Page 9: Symbol Explanation
Safety Notes Symbol Explanation Carefully Read the Manual Wear a Helmet, Eye and Ear Protection Wear Eye Protection Wear Ear Protection Wear Working Gloves Wear Solid, closed Shoes Wear Solid, Tight-Fitting Clothes... -
Page 10: Preparation And Use
Preparation and Use Changing the Attachments and Mounting the Auxiliary Handle The different attachments are slipped into the motor unit and secured. Remove the protective cap from the shaft of the attachment. The safely catch must lock into slot on the attachment. Push down the safety cover and secure the connection with the wing nut. -
Page 11: Using The Strap
Never use oil for 4-cylinder engines. Do not mix the petrol and the oil directly in the fuel tank. Use a special mixing canister with indicated mixtures as available from Westfalia. Open the cap of the fuel tank (24). Pour in the mixture into the tank (8) and tighten the cap only hand tight. -
Page 12: Starting The Engine
Preparation and Use Starting the Engine Pump the primer bulb (23) repeatedly until the bulb is filled with fuel mix. Pull the start/stop switch (17) to the rear position. Place the unit on the ground and hold it firmly. Use the choke (21) when starting a cold engine. The choke is active with the choke lever in the upper position. -
Page 13: Pole Saw
The Pole Saw Assembling the Pole Saw ATTENTION! The teeth of the saw chain are sharp! Wear gloves when handling the saw chain! Place the saw chain with the guides engaged in the slot of the guide bar. Guide the chain over the drive sprocket and attach the guide bar. The chain tensioning device must lock into the corresponding hole in the guide bar. -
Page 14: How To Cut Branches Off Trees
The Pole Saw How to cut Branches off Trees Cutting Thick Branches on a Tree When cutting off larger branches, you should first cut into the branch from below. First cut into the branch from below outside the place where you intend to cut off the branch. -
Page 15: Filling Saw Chain Oil
Only use biodegradable chain oil (e.g. Westfalia Biological Adhesive, article number 76 63 78). Pour the chain oil into the oil tank (8). Do not use motor oil or other mineral oils. -
Page 16: Guide Bar
The Pole Saw Guide Bar When the guide bar dismounted, remove sawdust in the bar rail. Lubricate the nose sprocket from the feeding port on the tip of the guide bar. Reverse the guide bar occasionally to prevent partial wear. -
Page 17: Hedge Trimmer
The Hedge Trimmer Working with the Hedge Trimmer Before cutting bushes, scrubs or hedges, remove thick branches or similar material. Cut them out with the pole saw. Make sure that there are no small animals hidden in the bushes or ... -
Page 18: Maintenance After Each Use
The Hedge Trimmer angle of 10 – 15° to the hedge in order to get a straight cut. Trim the hedge to a trapezoidal shape cutting from the bottom to the top. Round the top edges of the hedge. ... -
Page 19: Assembling Then String Trimmer
The String Trimmer Assembling the String Trimmer Always separate the string trimmer attachment from the motor unit before undertaking any assembly or maintenance! The spool housing is attached to the drive shaft with left hand threads. Use one of the included hex keys to arrest the driveshaft. Insert the key from the side through the hole in the protective sleeve of the shaft. -
Page 20: String Trimmer
The String Trimmer Assembling the String Trimmer Attachment Use the included screws to attach the string cutter to the safety hood. Attach the safety hood itself to the shaft tube with the included screws and nuts. Before the first use pull the strings out of the spool housing until they almost reach the safety hood. -
Page 21: Replacing Cutting String And Spool
The String Trimmer Replacing the Cutting String and the Spool Before undertaking this work, detach the string cutter attachment from the motor unit! The spool housing is attached to the drive shaft with left hand threads. Use one of the included hex keys to arrest the driveshaft. Insert the key from the side through the hole in the protective sleeve of the shaft. - Page 22 Finally, snap the cover of the spool housing back into place. Housing with Inserted String Reattach the spool housing to the shaft. Please keep in mind the housing is attached with left hand threads. Strings can be purchased from Westfalia or from specialized retailers.
-
Page 23: Brush Cutter
The Brush Cutter Working with the Brush Cutter Wear solid shoes and eye protection, the cutter blade may throw loose objects into the air quite violently. Use the brush cutter only with attached safety hood. Mounting the safety hood is described in the description of the string trimmer. -
Page 24: Maintenance After Extended Use
Maintenance After Extended Use This maintenance should be performed every 15 – 20 hours of operation, but at least once per season of use! Maintenance on the Motor Unit Air Cleaner Open the air filter cover (20) by turning the wing nut counter clockwise and remove the cover. -
Page 25: Storing The Motor Unit
15 to 20 hours of operation. Use Lithium machine grease. Suitable grease and grease guns can be purchased from Westfalia. Wipe the grease fitting clean and use the grease gun to add one or two shots of grease. Do not use excessive force to insert the grease. -
Page 26: Lubricating And Maintaining The Hedge Trimmer
Use Lithium machine grease. Suitable grease and grease guns can be purchased from Westfalia. Wipe the grease fitting clean and use the grease gun to add one or two shots of grease. Do not use excessive force to insert the... -
Page 27: Transport And Storing
Transport, Cleaning and Storing Advice for Cleaning, Transporting and Storing the Attachments Cleaning Clean the outside of the units carefully with a cloth and a brush. Do not use abrasives or aggressive chemicals to clean the unit. Regularly remove grass and residue from the units. Grass residue inside the protective hood may be very compact. -
Page 28: Technical Data
Technical Data Engine Single Cylinder, 2 Stroke, Air-Cooled Engine Displacement: ..............26 cm Bore x Stroke: ..............34 mm x 28.6 mm Max. Power: ..............0.7 kW / 7500 rpm Fuel Mix ................25:1 Fuel Tank ................. 0.6 l Idle Speed ................ 3000 rpm Maximum Speed .............. - Page 29 Werkzeugstraße 1, D-58093 Hagen, declare by our own responsibility that the product Petrol Gardening Set 4 in 1 Article No. 84 20 36 is according to the basic requirements, which are defined in the European Directives 2004/108/EC Electromagnetic Compatibility (EMC)
- Page 30 Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area. Gestaltung urheberrechtlich geschützt © Westfalia 09/13...
