Sub Board Assy & Tape Connector - Sony Xperia miro ST23i Working Instructions

Reassembly

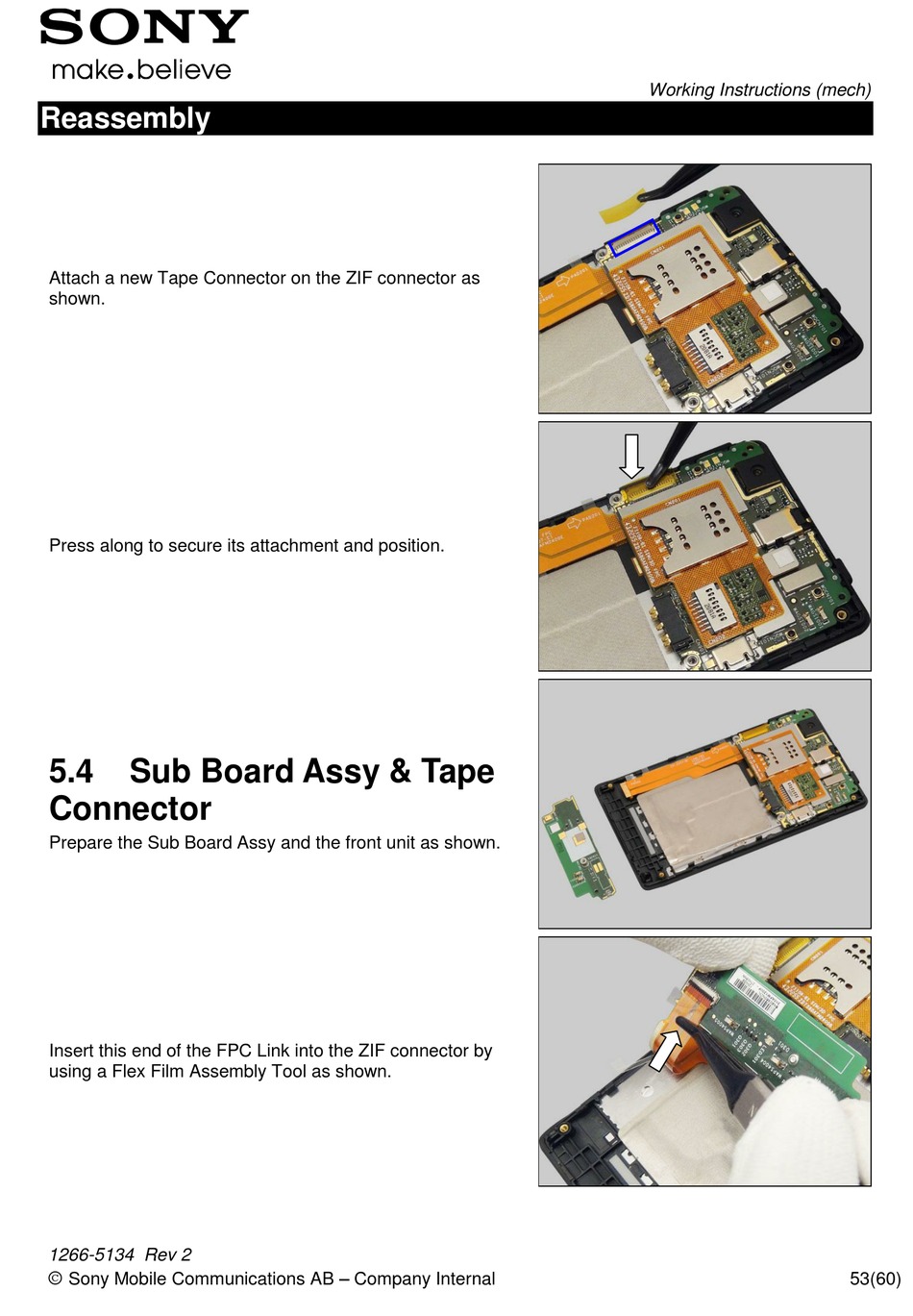

Attach a new Tape Connector on the ZIF connector as
shown.
Press along to secure its attachment and position.
5.4 Sub Board Assy & Tape
Connector
Prepare the Sub Board Assy and the front unit as shown.
Insert this end of the FPC Link into the ZIF connector by
using a Flex Film Assembly Tool as shown.
