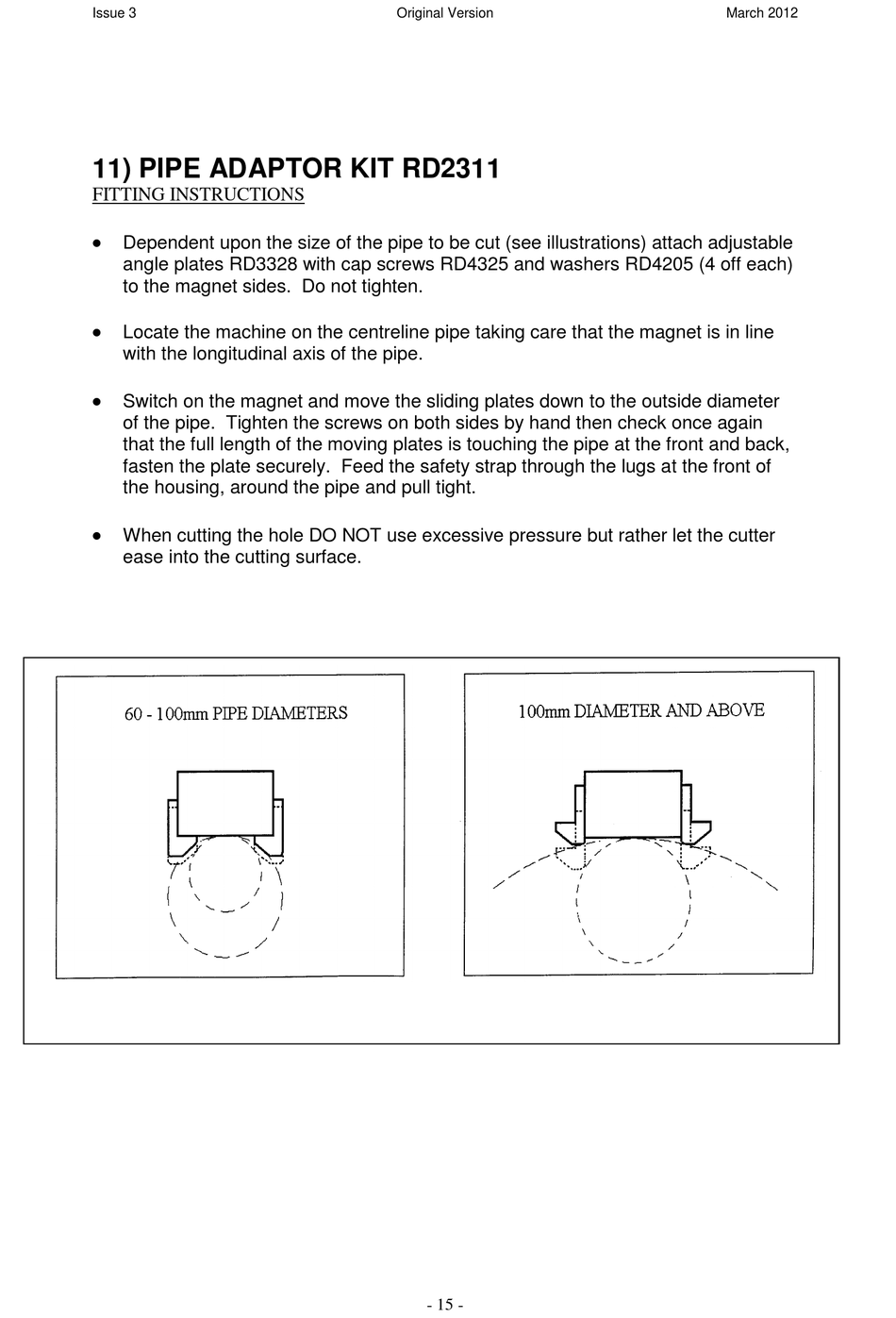

11) PIPE ADAPTOR KIT RD2311
FITTING INSTRUCTIONS

Dependent upon the size of the pipe to be cut (see illustrations) attach adjustable
angle plates RD3328 with cap screws RD4325 and washers RD4205 (4 off each)
to the magnet sides. Do not tighten.

Locate the machine on the centreline pipe taking care that the magnet is in line
with the longitudinal axis of the pipe.

Switch on the magnet and move the sliding plates down to the outside diameter
of the pipe. Tighten the screws on both sides by hand then check once again
that the full length of the moving plates is touching the pipe at the front and back,
fasten the plate securely. Feed the safety strap through the lugs at the front of
the housing, around the pipe and pull tight.

When cutting the hole DO NOT use excessive pressure but rather let the cutter
ease into the cutting surface.
