Laptop PC
Connect the PC's Ethernet port to LAN (ETH 0/0) port of the SmartNode 4650 ADSL2+. The SmartNode
1.
4650 ADSL2+ Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through Ethernet
cables for host or hub/switch connections. (See
The SmartNode comes with a built-in DHCP server to simplify configuration. Therefore, to automatically
2.
configure the PC for IP connectivity to the SmartNode, configure the laptop PC for DHCP. The SmartNode
will provide the PC with an IP address.
Check the connection to the SmartNode by executing the ping command from the PC command window
3.
as follows:
ping 192.168.1.1

3.0 Configuring the desired IP address

3.1 Factory-default IP settings

The factory default configuration for the Ethernet interface IP addresses and netmasks are listed in
Both Ethernet interfaces are activated upon power-up. LAN interface ETH 0/1 (LAN) provides a default DHCP
server. The WAN interface uses DHCP client to get the IP address and netmask automatically from the
service provider.
WAN interface DSL port (DSL 0/0)
LAN interface Ethernet 1 (ETH 0/0)
DHCP server address range (LAN)
If these addresses match with those of your network, go to section
on page 4. Otherwise, continue with the following sections to change the addresses and
network"
network masks.
SmartNode 4654 & 4658 ADSL2+ Quick Start Guide

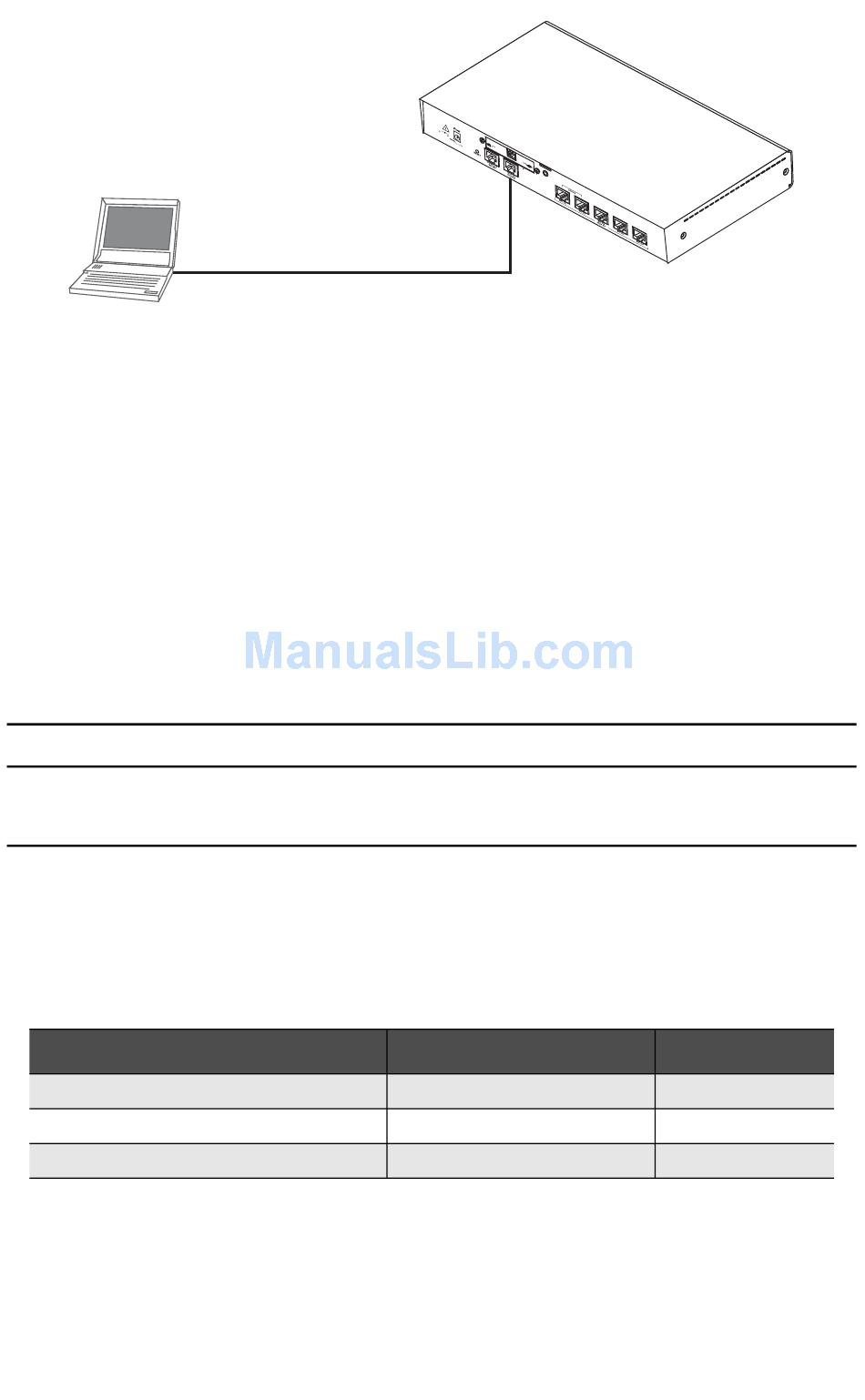

Straight-through wired cable
Figure 1.
Factory default IP address and network mask configuration
Table 1.
Item
LAN (ETH 0/0)
Connecting to the PC
figure 1.)
IP Addresss
DHCP
192.168.1.1
192.168.1.10-192.168.1.19
4.0 "Connecting the SmartNode to the
table 1.
Network Mask
DHCP
255.255.255.0
255.255.255.0
3
