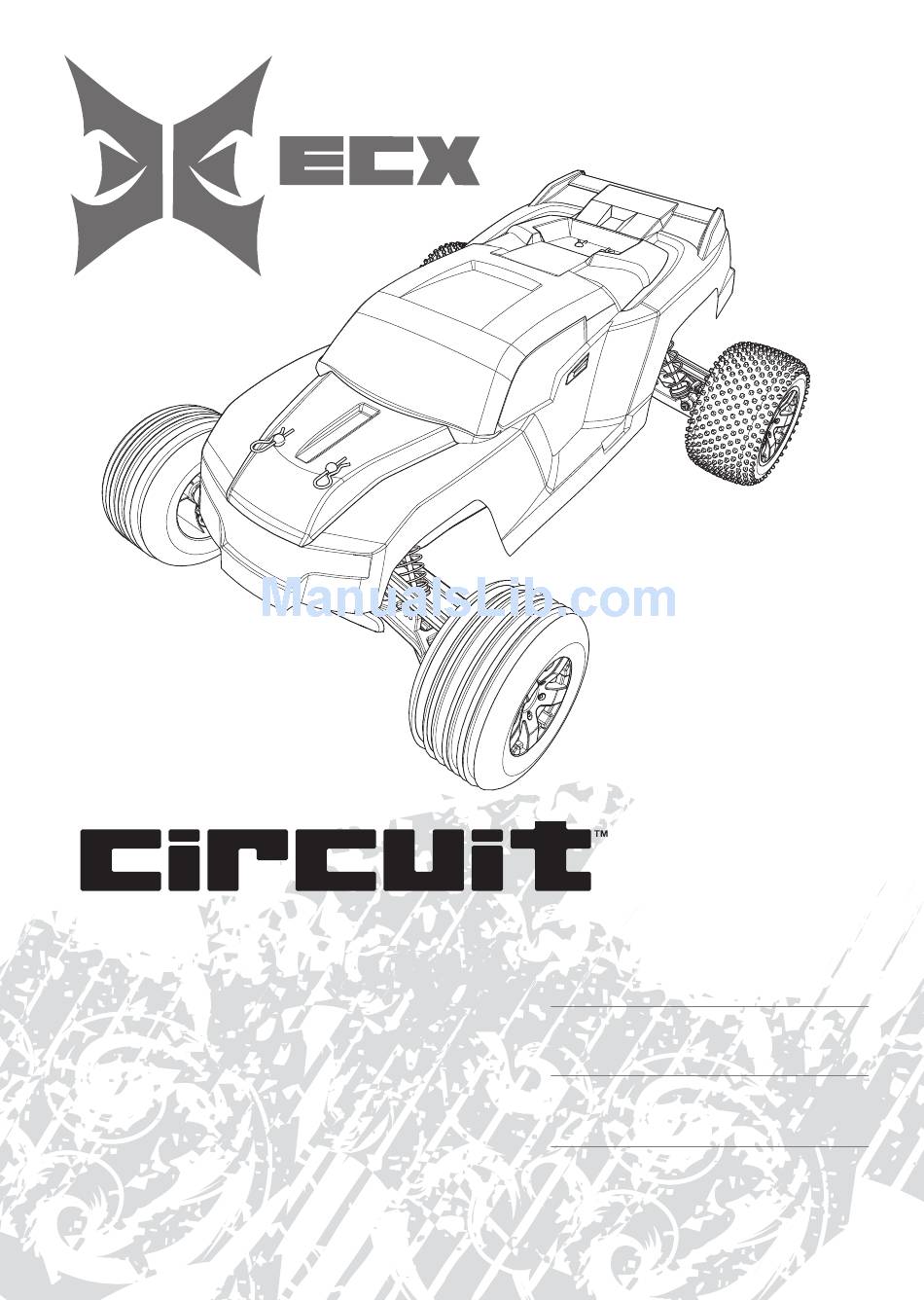

1/10 2WD ELECTRIC STADIUM TRUCK
ECX03130T1 | ECX03130T2
ECX03130IT1 | ECX03130IT2
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE DI ISTRUZIONI
®

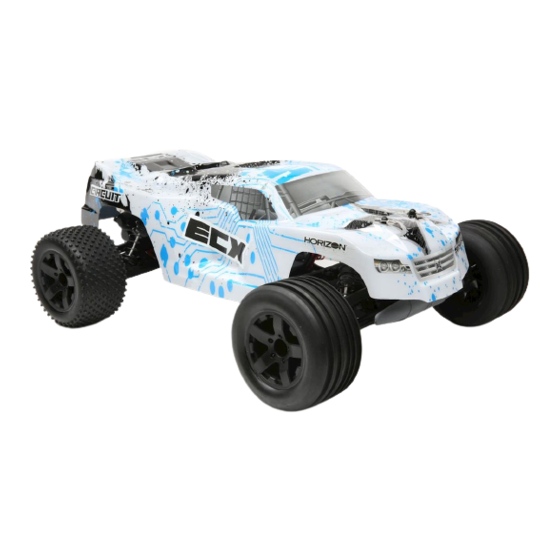

Congratulations on your purchase of the ECX
Circuit
Stadium Truck. This 1/10-scale model
™
introduces you to the sport of RC driving.
Herzlichen Glückwunsch zum Kauf des ECX
Circuit Stadium Truck. Dieses 1/10 Scale Model
öffnet Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l'achat de l' ECX Circuit
Stadium Truck. Ce modèle 1/10 vous initie à la
conduite RC.
Congratulazioni per l'acquisto di questo Circuit
Stadium Truck ECX. Questa vettura in scala 1/10
vi introdurrà nel mondo dei modelli RC.
®
Advertisement
Table of Contents
Related Manuals for ECX ECX03130T1
Summary of Contents for ECX ECX03130T1
- Page 1 Circuit Stadium Truck. Dieses 1/10 Scale Model BEDIENUNGSANLEITUNG öffnet Ihnen die Welt des RC Car Sports. MANUEL D’UTILISATION Nous vous félicitons pour l’achat de l' ECX Circuit MANUALE DI ISTRUZIONI Stadium Truck. Ce modèle 1/10 vous initie à la conduite RC.
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
-
Page 3: Table Of Contents
41.66 oz (3 kg-cm) Weight 44 g Operating Speed 0.23sec/60 degrees of travel Size 55.6 x 18 x 30mm COMPONENTS • ECX Circuit 1/10-scale 2WD Stadium Truck ® ™ • Spektrum™ STX2™ 2-CH 2.4GHz FHSS Transmitter • AA (4) Batteries • 10W LiPo AC Balance Charger... -
Page 4: Quick Start
QUICK START Please read the entire manual to gain a full understanding of the vehicle, fine-tuning the setup and performing maintenance. 1. Read the safety precautions found in this manual. 5. Power ON the transmitter and then the vehicle. Wait 5 seconds for the ESC to initialize. -
Page 5: Installing The Battery
INSTALLING THE BATTERY 1. Turn the battery clips (A) clockwise to remove the battery strap (B). 2. Install a fully charged battery. 3. Install the battery strap. 4. Turn the battery clips counterclockwise to secure the battery strap. Place foam blocks (ECX1053) in front of the battery so the weight of the battery increases rear traction or in back of the battery to increase steering response. -
Page 6: Binding
BINDING 7. Remove the Bind Plug, then power off the receiver to save the settings. Binding is the process of programming the receiver to recognize the GUID 8. Power off the transmitter. (Globally Unique Identifier) code of a single specific transmitter. The 9. -
Page 7: Operation
OPERATION • ALWAYS turn on your transmitter before you turn on the receiver • ALWAYS operate your vehicle in a wide open area. Operating the in the vehicle. Always power off the receiver before turning your vehicle in a small space or indoors can cause overheating at low transmitter off. -
Page 8: Maintenance
MAINTENANCE SETTING THE GEAR MESH The gear mesh has already been set at the factory. Setting the gear mesh is only necessary when changing motors or gears. You must remove the vehicle’s gear cover (A) to make this adjustment. Proper gear mesh (how the gear teeth meet) is important to the performance of the vehicle. -
Page 9: Shock Cleaning
SHOCK CLEANING REAR FRONT SHOCK SHOCK Oil-filled shocks will require regular maintenance due to the oil breaking ECX1037 down or getting dirty. This maintenance should be performed after about ECX1037 ECX1043 every 3 to 5 hours of use, depending on the conditions that the vehicle is ECX1043 used in. -
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Possible Cause Solution Battery damaged/not charged Check/change battery Short Run Time Motor dirty Check/clean Motor dirty Check/clean Sluggish Action Bind in drivetrain Clean/adjust Vehicle battery is not charged Replace/recharge Controls Reversed ST. REV or TH. REV Change switch position Motor/ESC overheat Over-geared for the driving environment Install smaller pinion on the motor... -
Page 11: Limited Warranty
LIMITED WARRANTY What this Warranty Covers that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the call the toll free telephone number referenced in the Warranty and Service product purchased (the “Product”) will be free from defects in materials and Contact Information section to speak with a Product Support representative. -
Page 12: Warranty And Service Contact Information
WARRANTY AND SERVICE CONTACT INFORMATION Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair Requests) RequestForm/ productsupport@horizonhobby.com Horizon Product Support 4105 Fieldstone Rd United States of America (Product Technical Assistance) Champaign, Illinois, 61822 USA 877-504-0233 websales@horizonhobby.com Sales... -
Page 13: Parts Diagram
PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI RECOMMENDED ITEMS EMPFOHLENE WERKZEUGE OUTILS RECOMMANDÉS M3x25 M3x12 M3x10 ATTREZZI CONSIGLIATI M3x10 M3x10 M3x25 2 mm 1.5 mm M4.3x13 M4.3x13 M3x18 M3x8 M3x12 M3x18 M3x25 M3x13 M3x12... - Page 14 PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI The slipper clutch can be adjusted using this locknut (ECX1060). Fully tighten the locknut, then loosen the nut two full turns. M2.5X4 M2.5X8 Die Rutschkupplung kann durch diese Stopmutter eingestellt werden (ECX1060).
-
Page 15: Replacement Parts
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio Part # Description Beschreibung Description Descrizione 1 ECX1017 Main Chassis Chassis Châssis principal Telaio principale 2 ECX1028 Servo Saver Set Servo Saver Set Sauve servo Set salvaservo Jeu de renfort de suspension Supporti braccetti sosp. - Page 16 Part # Description Beschreibung Description Descrizione Arbre secondaire de Transmission Idler Shaft, 35 ECX1025 Hauptgetriebewelle Set transmission avec goupilles Alberino intermedio con spina Drive Pins d'entraînement Axe de sortie de différentiel 36 ECX1026 Transmission Drive Shaft (2) Getreibeausgangswelle (2) Mozzi Differenziale (2) 37 ECX1052 Washer Set Unterlegscheiben Set...
-
Page 17: Optional Parts
DYNS2210 WP 60A FWD/REV Brushed ESC WP 60A FWD/REV Brushed ESC Av/Arr pour moteur à charbon indietro Set d’outils de démarrage pour Set attrezzi start up: ECX/VTR/ DYNT0500 Startup Tool Set: ECX/VTR/HPI Werkzeugset: ECX/VTR/HPI ECX/VTR/HPI ECX Blechschraubenset (64 Stk): ECX1061... - Page 18 CIRCUIT ™...
- Page 19 ECX03130IT1 | ECX03130IT2 www.ecxrc.com © 2016 Horizon Hobby, LLC. ECX, the ECX logo, Circuit, Dynamite, Prophet, STX2, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Patents Pending.
