ECX Circuit ECX03011 Instruction Manual

1/10 4wd electric stadium truck
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ecX03011 | ecX03011au | ecX03011I
InstructIon Manual
BedIenungsanleItung
Manuel d'utIlIsatIon
Manuale dI IstruzIonI
®
1/10 4Wd electrIc
stadIuM truck
Congratulations on your purchase of the ECX
Circuit
Stadium Truck. This 1/10-scale model
™
introduces you to the sport of RC driving.
Herzlichen Glückwunsch zum Kauf des ECX
Circuit Stadium Truck. Dieses 1/10 Scale Model
öffnet Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l'achat du ECX Circuit
Stadium Truck. Ce modèle 1/10 vous initie à la
conduite RC.
Congratulazioni per l'acquisto di questo Circuit
Stadium Truck ECX. Questa vettura in scala 1/10
vi introdurrà nel mondo dei modelli RC.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Circuit ECX03011 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ECX Circuit ECX03011

Summary of Contents for ECX Circuit ECX03011

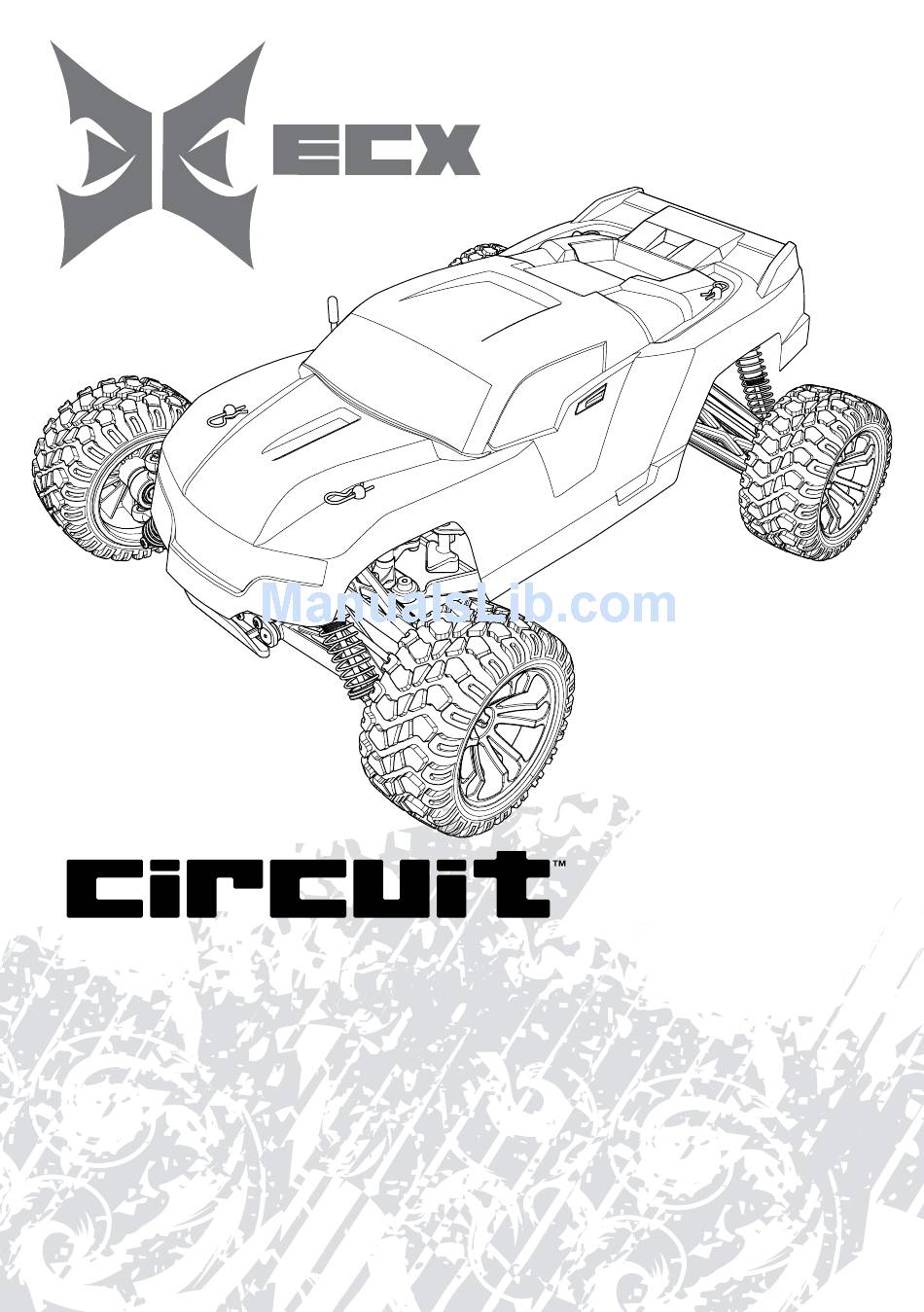

  • Page 1 ® 1/10 4Wd electrIc stadIuM truck ecX03011 | ecX03011au | ecX03011I Congratulations on your purchase of the ECX ® Circuit Stadium Truck. This 1/10-scale model ™ introduces you to the sport of RC driving. InstructIon Manual Herzlichen Glückwunsch zum Kauf des ECX Circuit Stadium Truck.

  • Page 2: Table Of Contents

    This product is not intended for use by children without direct adult supervision. Do not use with incompat- ible components or alter this product in any way outside of the instructions provided by Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance.

  • Page 3: Water-Resistant Vehicle With Waterproof Electronics

    Water-resIstant VehIcle WIth WaterProof electronIcs Your new Horizon Hobby vehicle has been designed and built with • Driving in wet conditions can reduce the life of the motor. a combination of waterproof and water-resistant components to The additional resistance of operating in water causes excess allow you to operate the product in many “wet conditions”, including strain. Alter the gear ratio by using a smaller pinion or larger puddles, creeks, wet grass, snow and even rain.

  • Page 4: Components

    coMPonents 1. ECX Circuit 1/10-scale 4WD Stadium Truck ® ™ 2. Spektrum DX2E Transmitter ™ 3. AA (4) Batteries 4. DYN4113 2A Peak Battery Charger 5. Dynamite Speedpack 7.2V ® ™ Ni-MH battery (DYN1060EC) VehIcle PreParatIons chargIng the VehIcle Battery two full charge cycles. Once your charger completes a charge cycle longer than 15 minutes, your battery will be fully charged. A typical 1.

  • Page 5: Installing Transmitter Batteries

    InstallIng transMItter BatterIes 1. Slide the panel open on the bottom of the transmitter. 2. Obey the battery plus (+) and minus (-) diagram in the transmitter to install 4 AA batteries. 3. Slide the panel closed. We recommend using only alkaline AA batteries in the transmitter. CAUTION: If using rechargeable batteries, charge only rechargeable batteries.

  • Page 6: Transmitter Controls

    transMItter controls reVerse sWItch Allows you to change the direction of steering (ST. REV) and throttle (TH. REV) controls (default settings are “N” for steering and “R” for throttle). st rate st trIM Adjusts the amount the front wheels move when the Adjust to make the vehicle steering wheel is turned left drive straight with no input...

  • Page 7: Getting Started

    gettIng started 2. Power on the ESC. 1. Power on the transmitter. 3. Do a test of the transmitter’s control of the vehicle with 4. Start driving slowly, and, if the vehicle does not go the vehicle’s wheels off the ground. straight, adjust the steering trim dial on the transmitter. IMPORTANT: Seat the motor brushes by driving smoothly on a flat surface during use of the first battery charge.

  • Page 8: Operation

    oPeratIon • ALWAYS turn on your transmitter before you turn on the • ALWAYS operate your vehicle in a wide open area. Operating receiver in the vehicle. Always power off the receiver before the vehicle in a small space or indoors can cause overheating turning your transmitter off. at low speeds. Operating at low speed increases heat in the electronic speed control (ESC). Overheating can damage the vehicle and failure may result. When you are fInIshed 1.

  • Page 9: Maintenance

    MaIntenance electronIc sPeed control (esc) Programming: The ESC comes with two jumpers pre-installed in the REV: ON and BATT: Ni-MH configurations. To disable reverse or change battery type to Li-Po, disconnect the jumper from the default port and connect it to the desired port. Power off the ESC, then power it back on. If the jumpers are lost or not installed, the ESC will default to REV: ON and BATT: Li-Po.

  • Page 10: Shock Cleaning

    shock cleanIng shock Parts ECX233000 dIagraM Oil-filled shocks will require regular maintenance due to the oil breaking ECX234005 down or getting dirty. This maintenance should be performed after about every 3 to 5 hours of use, depending on the conditions that the vehicle is used in. ECX233002 • Remove the shock from the vehicle. ECX233001 ECX236001 • Remove the cap from the shock body and dispose of fluid. ECX236004 • Disassemble the shock. Clean thoroughly with DYN5505. Dry parts before assembly. • Re-assemble the shock and refill the shock body with silicone fluid (30 weight recommended). • Slowly move the shaft and piston up and down to remove air bubbles. ECX233001 • Move the piston to the midway point of the body and install the cap. • Wipe off any overflowing fluid. • When properly filled, the piston should rebound about 3/8 in (9.5mm) after being pushed in fully. • Re-install the shock on the vehicle.

  • Page 11: Binding

    BIndIng Binding is the process of programming the receiver to recognize 5. The LED on the receiver will glow solid when the transmitter the GUID (Globally Unique Identifier) code of a single specific and receiver are bound. transmitter. The DX2E and SR201 receiver are bound at the fac- 6. Remove the bind plug and store it in a convenient place. tory.

  • Page 12: Limited Warranty

    What this Warranty Covers assistance. For questions or assistance, please visit our website Horizon Hobby, LLC (Horizon) warrants to the original purchaser at www.horizonhobby.com, submit a Product Support Inquiry, or that the product purchased (the "Product") will be free from defects call the toll free telephone number referenced in the Warranty in materials and workmanship at the date of purchase.

  • Page 13: Contact Information

    Service/Parts/Sales: United Kingdom Harlow, Essex, CM18 7NS, United Horizon Hobby Limited +44 (0) 1279 641 097 Kingdom Horizon Technischer Service service@horizonhobby.de Christian-Junge-Straße 1 Germany 25337 Elmshorn, Germany Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 infofrance@horizonhobby.com Service/Parts/Sales: 11 Rue Georges Charpak France Horizon Hobby SAS 77127 Lieusaint, France +33 (0) 1 60 18 34 90 info@horizonhobby.com.cn Service/Parts/Sales: Room 506, No. 97 Changshou Rd.
  • Page 14 Directive 2004/108/EC and LVD Directive 2006/95/EC: EN 300-328 V1.7.1: 2006 EN 301 489-1 V1.9.2: 2012 EN301 489-17 V2.1.1: 2009 EN60950-1:2006+A11:2009+A1:2010+A12: 2011 EN55022:2010 + AC:2011 EN55024:2010 EN61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2008 Signed for and on behalf of: Horizon Hobby, LLC Robert Peak Champaign, IL USA Chief Financial Officer Dec 18, 2013 Horizon Hobby, Inc.
