1/10 2WD ELECTRIC STADIUM TRUCK
ECX03430T1 | ECX03430T2
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE DI ISTRUZIONI
®

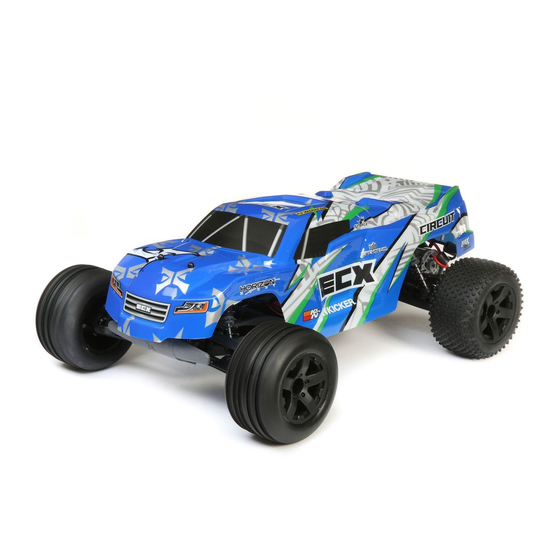

Congratulations on your purchase of the ECX
Circuit
™
Stadium Truck. This 1/10-scale model
introduces you to the sport of RC driving.
Herzlichen Glückwunsch zum Kauf des ECX
Circuit Stadium Truck. Dieses 1/10 Scale Model
öffnet Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l'achat de l' ECX Circuit
Stadium Truck. Ce modèle 1/10 vous initie à la
conduite RC.
Congratulazioni per l'acquisto di questo Circuit
Stadium Truck ECX. Questa vettura in scala 1/10
vi introdurrà nel mondo dei modelli RC.
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ECX Circuit series
Summary of Contents for ECX Circuit series
- Page 1 Circuit Stadium Truck. Dieses 1/10 Scale Model MANUEL D’UTILISATION öffnet Ihnen die Welt des RC Car Sports. MANUALE DI ISTRUZIONI Nous vous félicitons pour l’achat de l' ECX Circuit Stadium Truck. Ce modèle 1/10 vous initie à la conduite RC. Congratulazioni per l’acquisto di questo Circuit Stadium Truck ECX.
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi...
-
Page 3: Table Of Contents
41.66 oz (3 kg-cm) Weight 1.41 oz (40 g) Operating Speed 0.23sec/60 degrees of travel Size 55.6 x 18 x 30mm COMPONENTS • ECX ® Circuit ™ 1/10-scale 2WD Stadium Truck • Spektrum™ STX2 ® 2-CH 2.4GHz FHSS Transmitter • AA (4) Batteries •... -
Page 4: Quick Start
QUICK START Please read the entire manual to gain a full understanding of the vehicle, fi ne-tuning the setup and performing maintenance. 1. Read the safety precautions found in this manual. 5. Power ON the transmitter and then the vehicle. Wait 5 seconds for the ESC to initialize. -
Page 5: Transmitter Controls
TRANSMITTER CONTROLS 1. Steering Wheel Controls direction (left/right) of the model 2. Throttle Trigger Controls speed and direction (forward/brake/reverse) of the model 3. ON/OFF Switch Turns the power ON/OFF for the transmitter 4. Throttle Limiting Switch Adjusts the throttle limit from 50%, 75%, and 100% 5. -
Page 6: Binding
BINDING You must rebind when: • Different failsafe positions are desired e.g., when throttle or Binding is the process of programming the receiver to recognize the GUID steering reversing has been changed. (Globally Unique Identifi er) code of a single specifi c transmitter. The •... -
Page 7: Operation
OPERATION • ALWAYS turn on your transmitter before you turn on the receiver • ALWAYS operate your vehicle in a wide open area. Operating the in the vehicle. Always power off the receiver before turning your vehicle in a small space or indoors can cause overheating at low transmitter off. -
Page 8: Maintenance
MAINTENANCE SETTING THE GEAR MESH The gear mesh has already been set at the factory. Setting the gear mesh is only necessary when changing motors or gears. You must remove the vehicle’s gear cover (A) to make this adjustment. Proper gear mesh (how the gear teeth meet) is important to the performance of the vehicle. -
Page 9: Shock Cleaning
SHOCK CLEANING REAR FRONT SHOCK SHOCK Oil-fi lled shocks will require regular maintenance due to the oil breaking ECX1037 ECX1037 down or getting dirty. This maintenance should be performed after about ECX1043 every 3 to 5 hours of use, depending on the conditions that the vehicle is ECX1043 used in. -
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Possible Cause Solution Battery damaged/not charged Check/change battery Short run time Motor dirty Check/clean Motor dirty Check/clean Sluggish action Bind in drivetrain Clean/adjust Vehicle battery is not charged Replace/recharge Controls reversed ST. REV or TH. REV Change switch position Motor/ESC overheat Over-geared for the driving environment Install smaller pinion on the motor... -
Page 11: Limited Warranty
LIMITED WARRANTY What this Warranty Covers that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the call the toll free telephone number referenced in the Warranty and Service product purchased (the “Product”) will be free from defects in materials and Contact Information section to speak with a Product Support representative. -
Page 12: Warranty And Service Contact Information
WARRANTY AND SERVICE CONTACT INFORMATION Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair Requests) RequestForm/ productsupport@horizonhobby.com Horizon Product Support 4105 Fieldstone Rd United States of America (Product Technical Assistance) Champaign, Illinois, 61822 USA 877-504-0233 websales@horizonhobby.com Sales... -
Page 13: Parts Diagram
PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI RECOMMENDED ITEMS EMPFOHLENE WERKZEUGE OUTILS RECOMMANDÉS M3x25 M3x12 M3x10 ATTREZZI CONSIGLIATI M3x10 M3x10 M3x25 2 mm 1.5 mm M4.3x13 M4.3x13 M3x18 M3x8 M3x12 M3x18 M3x25 M3x13 M3x12... - Page 14 PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI The slipper clutch can be adjusted using this locknut (ECX1060). Fully tighten the locknut, then loosen the nut two full turns. M2.5X4 M2.5X8 Die Rutschkupplung kann durch diese Stopmutter eingestellt werden (ECX1060).
-
Page 15: Replacement Parts
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio Part # Description Beschreibung Description Descrizione 1 ECX1017 Main Chassis Chassis Châssis principal Telaio principale 2 ECX1028 Servo Saver Set Servo Saver Set Sauve servo Set salvaservo Rear Suspension Mount Jeu de renfort de suspension Supporti braccetti sosp. - Page 16 48 ECX1033 Setscrew M3x10 Sicherungsschrauben (4) Vis M3x10 mm Viti (4) Screw Set (64): 1:10 ECX Blechschraubenset (64 Stk): ECX1061 1/10 2WD - Set de vis (64) Set viti (64): tutte le 1:10 2WD 2WD ALL Cir/Ruck/Torm Body, White/Black: 1/10 Karosserie, Weiss / Schwarz: 1/10 2WD Torment –...
-
Page 17: Optional Parts
1/10 2WD aluminium le 1:10 2WD 1/10 2WD - Set de pignons Set ingranaggio in metallo: ECX9001 Metal Gear Set: 1:10 2WD ALL ECX Metallgetriebeset métal tutte le 1:10 2WD Standard Digital Surface Standard Digital Surface Servo digital standard surface,... - Page 18 ECX03430T1 | ECX03430T2 www.ecxrc.com © 2018 Horizon Hobby, LLC. ECX, the ECX logo, Circuit, Dynamite, STX2, EC3, Tazer, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
