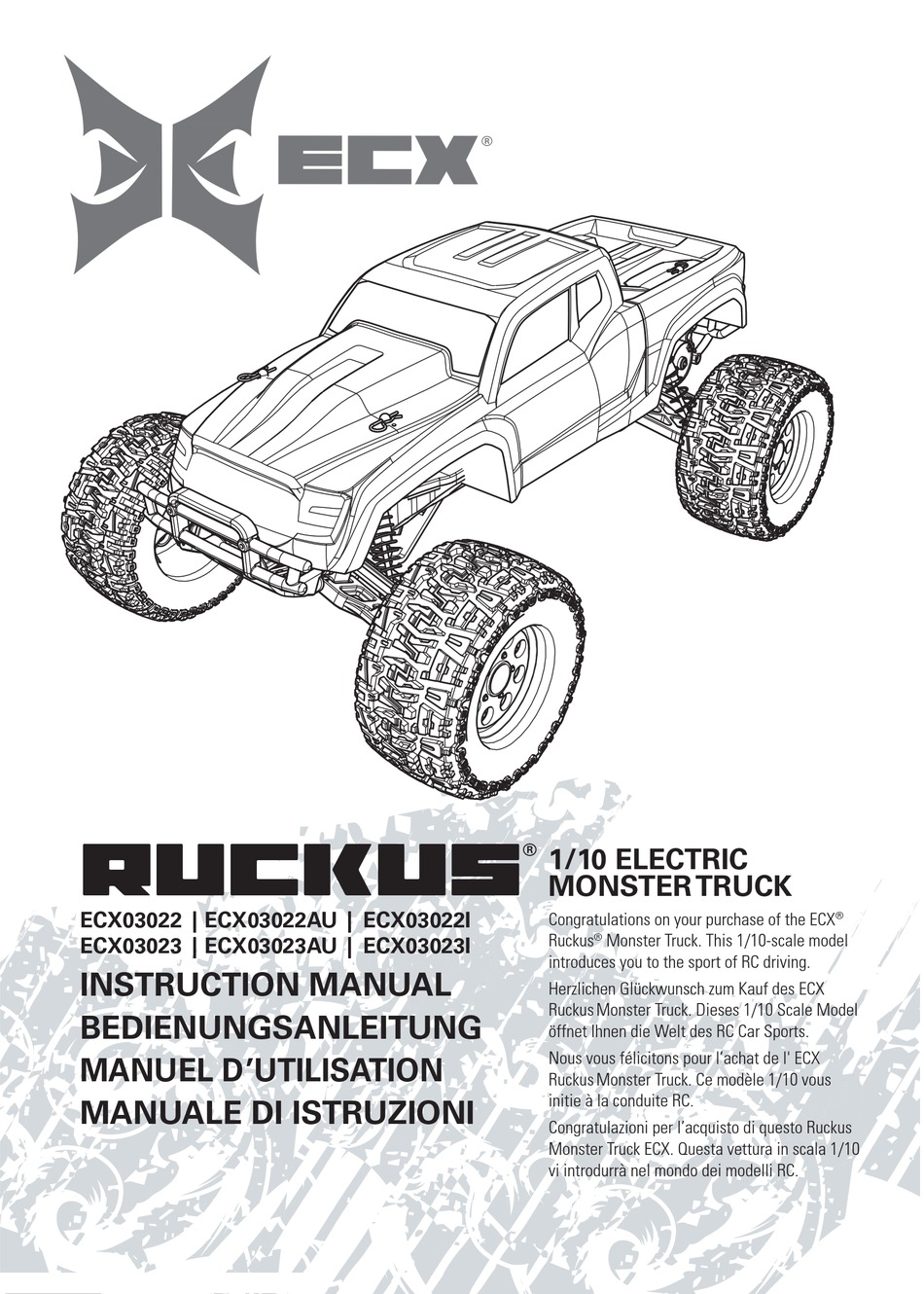

RUCKUS
ECX03022 | ECX03022AU | ECX03022I
ECX03023 | ECX03023AU | ECX03023I
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE DI ISTRUZIONI
®
®
1/10 ELECTRIC
MONSTER TRUCK
Congratulations on your purchase of the ECX
Ruckus
Monster Truck. This 1/10-scale model
®
introduces you to the sport of RC driving.
Herzlichen Glückwunsch zum Kauf des ECX
Ruckus Monster Truck. Dieses 1/10 Scale Model
öffnet Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l'achat de l' ECX
Ruckus Monster Truck. Ce modèle 1/10 vous
initie à la conduite RC.
Congratulazioni per l'acquisto di questo Ruckus
Monster Truck ECX. Questa vettura in scala 1/10
vi introdurrà nel mondo dei modelli RC.
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ECX Ruckus ECX03022
Summary of Contents for ECX Ruckus ECX03022
-
Page 1: Instruction Manual
Herzlichen Glückwunsch zum Kauf des ECX Ruckus Monster Truck. Dieses 1/10 Scale Model BEDIENUNGSANLEITUNG öffnet Ihnen die Welt des RC Car Sports. Nous vous félicitons pour l’achat de l' ECX MANUEL D’UTILISATION Ruckus Monster Truck. Ce modèle 1/10 vous initie à la conduite RC. -
Page 2: Table Of Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Water-Resistant Vehicle With Waterproof Electronics
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with • Even minimal water contact can reduce the life of your motor if a combination of waterproof and water-resistant components to al- it has not been certified as water-resistant or waterproof. If the motor becomes excessively wet, apply very light throttle until low you to operate the product in many “wet conditions,”... -
Page 4: Components
COMPONENTS 1. ECX ® Ruckus ® 1/10-scale Monster Truck 2. Spektrum™ DX2E Transmitter 3. AA (4) Batteries 4. DYN4113 2A Peak Battery Charger 5. Dynamite ® Speedpack™ 7.2V Ni-MH battery (DYN1050EC) VEHICLE PREPARATIONS CHARGING THE VEHICLE BATTERY It may take as many as 2 to 4 restarts to complete your fi rst one or two full charge cycles. -
Page 5: Installing Transmitter Batteries
INSTALLING TRANSMITTER BATTERIES We recommend using only alkaline AA batteries in the transmitter, however, it is possible to use rechargeable NiMH batteries. CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non-rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property. -
Page 6: Transmitter Controls
TRANSMITTER CONTROLS REVERSE SWITCH Allows you to change the direction of steering (ST. REV) and throttle (TH. REV) controls (default settings are “N” for steering and “R” for throttle). STEERING RATE STEERING TRIM Adjusts the amount the front wheels move when the Adjust to make the vehicle steering wheel is turned left or right. -
Page 7: Getting Started
GETTING STARTED 2. Power on the ESC. 1. Power on the transmitter. 3. Do a test of the transmitter’s control of the vehicle with 4. Start driving slowly, and, if the vehicle does not go the vehicle’s wheels off the ground. straight, adjust the steering trim dial on the transmitter. -
Page 8: Operation
OPERATION • ALWAYS turn on your transmitter before you turn on the • ALWAYS operate your vehicle in a wide open area. Operating receiver in the vehicle. Always power off the receiver before the vehicle in a small space or indoors can cause overheating turning your transmitter off. -
Page 9: Maintenance
MAINTENANCE SETTING THE GEAR MESH The gear mesh has already been set at the factory. Setting the gear mesh is only necessary when changing motors or gears. You must remove the vehicle’s gear cover (A) to make this adjustment. Proper gear mesh (how the gear teeth meet) is important to the performance of the vehicle. -
Page 10: Shock Cleaning
SHOCK CLEANING REAR SHOCK FRONT SHOCK Oil-fi lled shocks will require regular maintenance due to the ECX1037 ECX1037 oil breaking down or getting dirty. This maintenance should be ECX1043 performed after about every 3 to 5 hours of use, depending on ECX1043 the conditions that the vehicle is used in. -
Page 11: Binding
BINDING Binding is the process of programming the receiver to recognize 5. The LED on the receiver will glow solid when the transmitter the GUID (Globally Unique Identifi er) code of a single specifi c and receiver are bound. transmitter. The DX2E and SR201 are bound at the factory. If you 6. -
Page 12: Limited Warranty
LIMITED WARRANTY What this Warranty Covers that you may need any assistance. For questions or assistance, please visit our Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the website at www.horizonhobby.com, submit a Product Support Inquiry, or call product purchased (the "Product") will be free from defects in materials and the toll free telephone number referenced in the Warranty and Service Contact workmanship at the date of purchase. -
Page 13: Fcc Information
No. HH2013020902 in a manner that protects human health and the environment. Product(s): ECX 1/10 th Scale Monster Ttuck ( Ruckus) V2.1 For more information about where you can drop off your waste (Spektrum DX2E Transmitter and SR201 Receiver included) equipment for recycling, please contact your local city offi... -
Page 14: Parts Diagrams
PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI RECOMMENDED ITEMS M3X12 EMPFOHLENE WERKZEUGE OUTILS RECOMMANDÉS ATTREZZI CONSIGLIATI M3X10 M3X10 M3X10 M3X12 2 mm 1.5 mm M3X12 M3X12 M3X12 M3X25 M3X12 M3X10 M3X10 M3X15 M3X12 M3x15... - Page 15 PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI The slipper clutch can be adjusted using this locknut (ECX1060). Fully tighten the locknut, then loosen the nut two full turns. Die Rutschkupplung kann durch diese Stopmutter eingestellt werden (ECX1060).
- Page 16 Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice 1 ECX2008 Main Chassis Chassis Châssis principal Telaio principale 2 ECX1028 Servo Saver Set Servo Saver Set Sauve servo Set salvaservo Cover and Rear Mount...
- Page 17 Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice 38 ECX1055 Bearings 10x15x4 (2) Lager 10x15x4 (2) Roulements 10x15x4 (2) Cuscinetti 10x15x4 (2) 39 ECX1059 M3 Locknut (4) M3 Stopmutter (4) Ecrou auto-freiné M3 (4) Dadi autobloccanti M3 (4) 40 ECX232006 Spur Gear Hauptzahnrad...
- Page 18 Created 03/2014 © 2014 Horizon Hobby, Inc. ECX, the ECX logo, Ruckus, Dynamite, Speedpack, DSM, DSM2 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
