Summary of Contents for Audiovox Video PROVD8
-

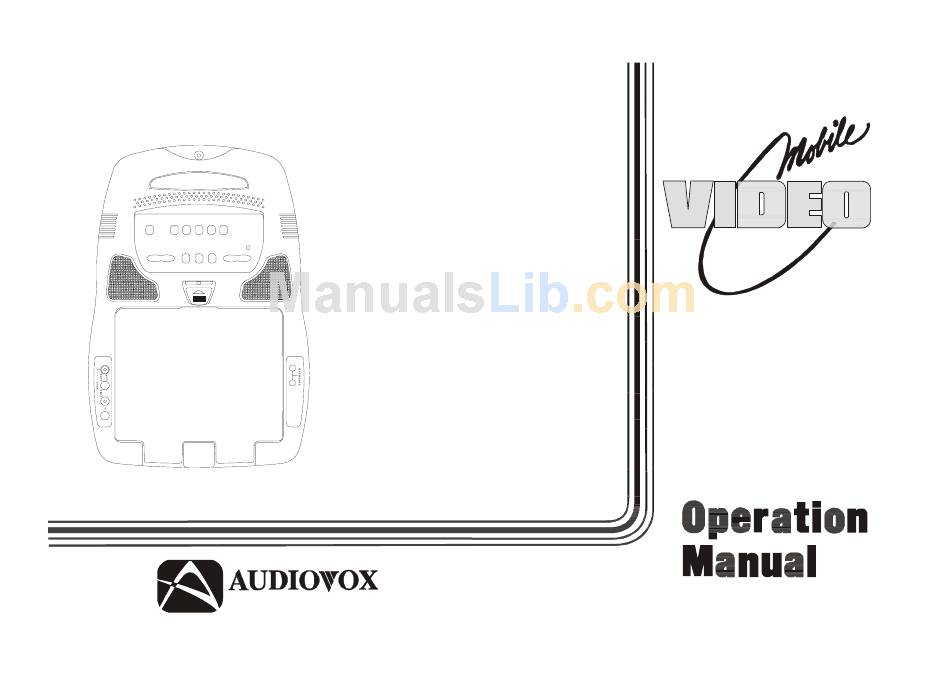

Page 1: Dvd Player
PO WE R EJE CT R EW PL AY STO P A U TO PIC TU RE SO U RC E PR O GR A M SEL EC T SEL EC T C H A NN EL VO LU ME O F F A U TO ELECTRONICS CORP . -
Page 2: Important Notice
It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle. -
Page 3: Safety Precaution
Congratulations on your purchase of the Audiovox PROVD8 Overhead TV/Monitor with DVD Player. The PROVD8 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment. -
Page 4: Controls And Indicators Diagram
Controls and Indicators Diagram P O W E R E J E C T R E W P L A Y F. F S T O P A U T O S O U R C E P I C T U R E P R O G R A M S E L E C T S E L E C T... -
Page 5: Main Function Descriptions
Main Function Descriptions 1. DVD Disc Insertion Slot 2. Infrared Transmitter and Sensor Use to transmit audio to wireless headphones. Also allows the remote control to operate the PROVD8 and to control other accessories in the system 3. PLAY (u) Button This button is used to enter the play mode. - Page 6 24. Headphone Jacks Allows the use of wired headphones with a 1/8” plug for listening to video program audio. 25. PROVD8 Ventilation Opening NOTE: Audiovox recommends the use of the Audiovox HP275 Headphones when using wired headphones.
-
Page 7: Remote Control Operation
3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will operate the PROVD8 and Audiovox VCP’s. It is not a universal remote control and will not control equipment from other manufacturers. - Page 8 DVD Remote Function Descriptions 1. DVD POWER ON/OFF Button* Press this button to turn the PROVD8 on. The DVD or selected video source will be displayed on screen and the picture will appear in a few seconds. Press the button again to turn the PROVD8 off.
- Page 9 9. LEFT (t) Button Allows the user to shift left in the menu options. 10. MENU Button Allows the user to access the main menu. 11. RETURN Button Allows the user to exit the set up menu. 12. TV Mode Select Switches certain function keys on the remote control for TV functions.
-
Page 10: Channel Down
23. PICTURE SELECT Button Each time this button is pressed, the on screen picture adjustment display cycles through “adjustment bars” for BRIGHTNESS, CONTRAST, COLOR and TINT. Once the desired adjustment bar is displayed, use the VOLUME UP/DOWN buttons to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or if any other button is depressed. -
Page 11: Channel Tuning Set Up
Turning the PROVD8 On or Off 1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The internal friction will hold the screen in position while the system is in use. -
Page 12: Overhead Dome Lights
4. To ERASE a channel, press the ERASE/WRITE button on the Remote Control Unit until “MANUAL MEMORY XX ERASE” is displayed on screen. To STORE a channel, press the button until the MANUAL MEMORY XX ADD is displayed on screen. Overhead Dome Lights Operation The Dome lights integrated into the PROVD8 are... -
Page 13: Remote Sensor
The repeater function allows control of auxiliary equipment such as an Audiovox Video Cassette Player. The infrared sensor can relay signals from most manufacturer’s remote controls to its respective component connected to the Video input. - Page 14 Wired Headphones There are two 1/8” headphone jacks on the PROVD8 that can be used with any standard wired stereo headphones. These jacks are controlled by the volume up / down buttons on the PROVD8 remote control. Remove the protective plastic cover to access the jacks.
- Page 15 DVD Basics To get the optimum use out of the DVD section, make sure you read this section completely. Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play.
- Page 16 Settings and Adjustments This chapter describes how to set and how to adjust using the on-screen SETUP menu. Using the Setup Display Using the setup display, you can do the initial setup, adjust the picture and sound quality, and set the various outputs.
- Page 17 OSD (On-Screen Display) Language Menu The OSD Language Menu allows the user to select the language for the on-screen display. Press ENTER and then use the ( ) buttons to select the desired language. The user can select either English, Frençais, Italiano, Español or Deutsch for the OSD language.
- Page 18 System Settings Aspect This menu allows the user to select the aspect ratio of the monitor. Press ENTER and then use the ( buttons to select the appropriate setting. 4:3 LB (LETTER BOX) : This displays a wide picture with black bands on the upper and lower portions of the screen.
- Page 19 Limiting Playback by Children (Parental Control) The Parental Control function allows you to limit viewing to your preference. 1. Use the ( ) buttons to select RATING, then press ENTER. 2. Enter a password in 4 digits using the number buttons, then press the ENTER button.
- Page 20 Playing DVD Disc --/-- O F F EN 2CH 00:00:00 O F F A -B 1 2 3 4 5 Displays current title. Use the (t u) buttons Title to move the cursor to the icon, use the ( buttons to select required title, press ENTER to confirm the selection.
- Page 21 Repeat play function. Use the (t u) Repeat buttons to move the cursor to the icon, use the ( ) buttons or REPEAT button to select required repeat play function. Repeat Chapter Repeat Title Repeat A-B Repeat play from A to B selected. Use the (t u) button to move the cursor to the icon, use the A-B button or ENTER button to select the A and B points.
- Page 22 Play mode selection. Use the (t u) Play mode buttons to move the cursor to the icon, use the ( ) buttons to select any of the three play modes: Sequential (Off), Programmed and Random play modes. Repeat play function. Use the (t u) Repeat buttons to move the cursor to the icon, use the (...
- Page 23 Playback begins automatically when you insert an MP3 disc into the player. The PROVD8 begins playing the songs in the order they were burned onto the disc. Selecting a directory Because MP3 discs contain a large number of songs, these songs are divided into directories. To select a directory: 1.
- Page 24 Directory Display This feature displays the directory that you have selected. File Display This feature displays the selected track number which contains in the selected directory. Time Display This feature displays the audio time for the length of the song. Each time you make a song, the time restarts from the beginning.
-
Page 25: Troubleshooting
To Use Repeat Feature: 1. While a disc is playing, press Repeat button or right arrow button (u) on the remote to bring up the Repeat icon. 2. Press the up/down arrow buttons ( the Repeat option (Repeat Off, Repeat One, Repeat Disk, Repeat Dir). - Page 26 SOLUTION PROBLEM • Make sure your DVD is connected No sound or properly. Make sure all cables are distorted sound securely inserted into the appropriate jacks. • If you are using the IR headphones, make sure you turn on the IR power. •...
-
Page 27: Replacement Parts
Replacement Parts Remote Control Left Protective Cover for IR Sensor Right Protective Cover for HeadphonesJacks © Copyright 2002 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 LCD Backlighting 136B2154 Resolution Pixels Operation Temperature 102B3689 Storage Temperature Backlight life Video Display System... -
Page 28: Month Limited Warranty
36 MONTH LIMITED WARRANTY AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
