E LE CTRON ICS CORP .
PROV716/PROV716S/PROV716P
Drop Down Video TV/Monitor with DVD

Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROV716 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Audiovox PROV716

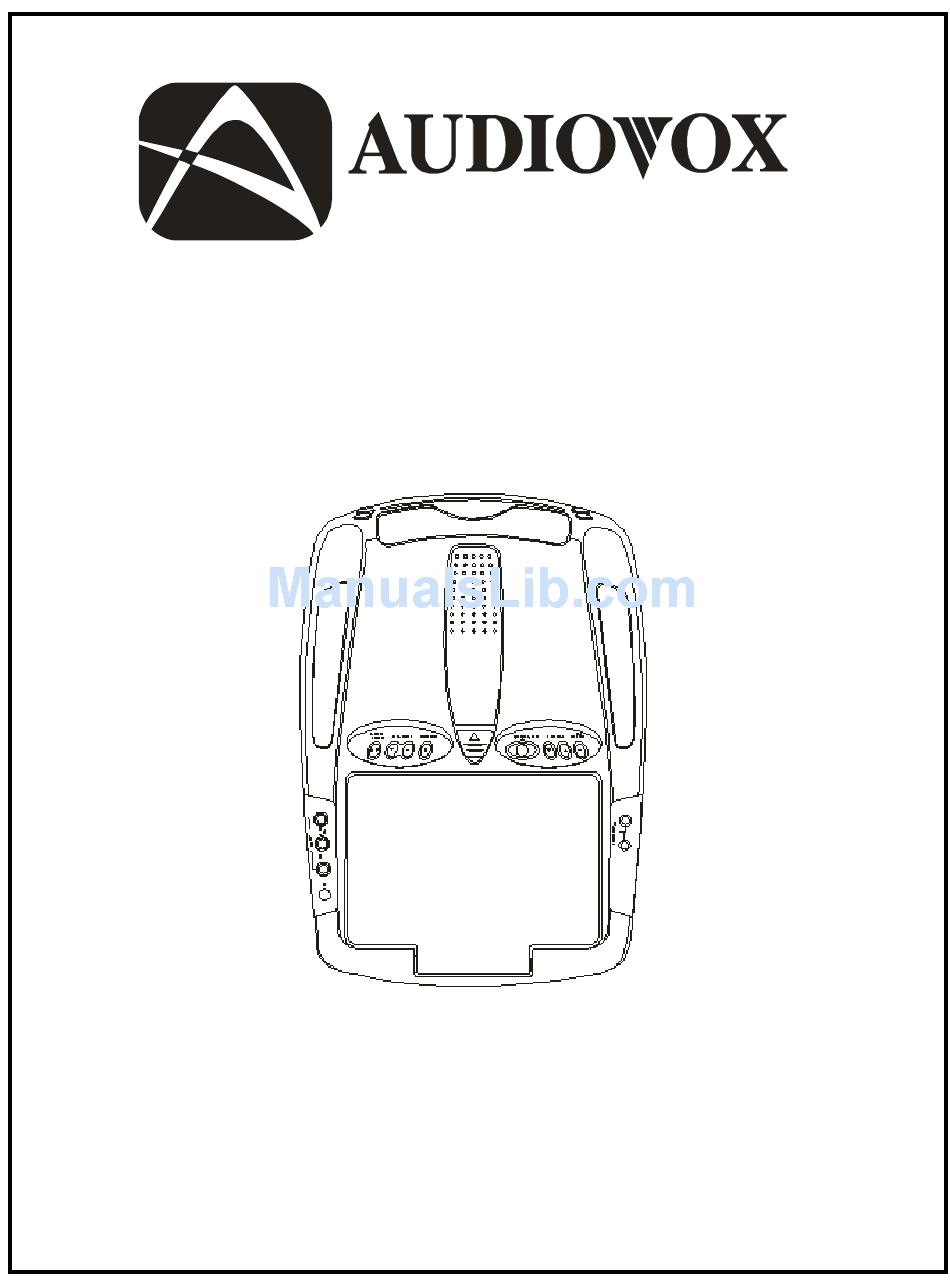

  • Page 1: Installation Guide

    ® E LE CTRON ICS CORP . PROV716/PROV716S/PROV716P Drop Down Video TV/Monitor with DVD Installation Guide...
  • Page 2: Important Notice

    Important Notice It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver's seat, or that is visible directly or indirectly to the operator of the motor vehicle.
  • Page 3: Materials Included In This Package

    MATERIALS INCLUDED IN THIS PACKAGE: 1) PROV716/PROV716 S/PROV716 P TV/Video Monitor with DVD (1pc) 2) 12 Pin Power / Signal harness (P/N 112B2821) (1 pc) 3) 3 Pin Power Wire Harness with choke (P/ N 112B3274) (1 pc) 4) Hardware Package #4 x 3/8”...
  • Page 4: General System Configurations

    GENERAL INSTALLATION APPROACH: 1) Decide upon system configuration and options that will be installed (i.e.: what components, VCP, Video Game, external amp, wireless headphones, VCP, etc.). 2) Review all manuals to become familiar with electrical requirements and hook ups. 3) Decide upon mounting locations of all components and method of mounting. 4) Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as all areas where interconnecting wire harnesses will need to be located.
  • Page 5: Vehicle Preparation

    VEHICLE PREPARATION: Locate a constant power source (+12v at all times), an accessory power source (+12v when key is in the ACC. and run positions, and 0v when key is off), and also a good ground generally, these wires can be found at the ignition switch or fuse-box. The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the installation of the video monitor and related console accessories.
  • Page 6: Mini Console Installation

    MINI CONSOLE INSTALLATION: This page only covers special installation considerations for the mini-console installation. If the video monitor is to be installed in a vehicle with the mini console, this console may need to be trimmed to fit the contour of the vehicle headliner. In this installation, the video monitor is mounted directly to the overhead cross-member in the roof using the mounting screw bosses.
  • Page 7 MOUNTING THE MINI-CONSOLE Roof Roof Suppor t H eadl i ner 12”x9”x3/ 4” Pl yw ood Bl ock ( 4) Sel f - Tappi ng Scr ew s ( not suppl i ed) M i ni - C onsol e Vi deo U ni t ( 5) # 8 Fl at W asher s ( 5) # 8x3/ 4”...
  • Page 8 PROV716/PROV716 S/PROV716 P Hard Wired FM Modulator Output 12 VDC Power and Ground Satalite Radio Am/Fm FACTORY Antenna 14Pin FMM Cable RADIO Modulator Item #8 Dash Radio Second IR Input Battery 12V C H O KE Power Harness Item #3 To Secondary AV Monitor RCA-Female INPUT...
  • Page 9: Satellite Radio

    POD modulator (FTR3000) using the POD remote control. Using an Audiovox XM satellite receiver 1) The Audiovox XM-01 satellite receiver does not operate the same as the Sirius, the FM modulator is external to the XM receiver.
  • Page 10: Connecting The Dome Lights

    CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply voltage to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs.
  • Page 11: Troubleshooting

    Negative Switched Dome lighting Red / black - Lamp on To 12 pin Black / red - Lamp common connector Purple / brown - Lamp Auto constant Factory Dome light circuit constant Factory Door ajar switch or Body Troubleshooting: SYMPTOM: REMEDY: No power at Video Monitor -Verify +12 VDC on Red wire at 2 pin Power Harness behind video monitor.
  • Page 12 For Customer Service Visit Our Website At . audi ovox. com W W W Product Information, Photos, FAQ’s Owner’s Manuals 128-6748 © Copyright 2003 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788...
