8.5" overhead lcd video monitor with dvd player
Hide thumbs Also See for MMD85:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual, User Manual

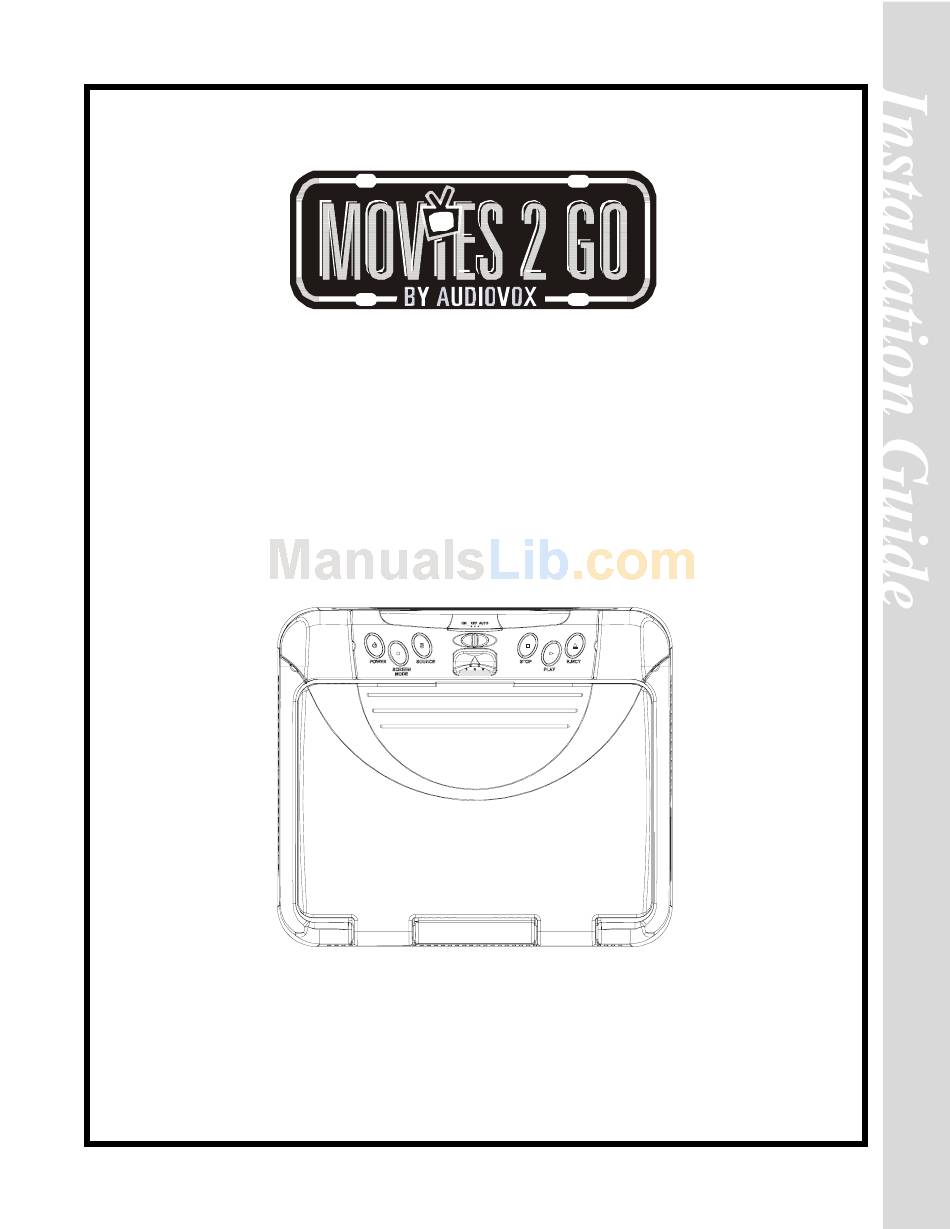

MMD85
8.5" OVERHEAD LCD
VIDEO MONITOR
WITH DVD PLAYER

Installation Guide

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMD85 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox MMD85

Summary of Contents for Audiovox MMD85

  • Page 1: Installation Guide

    MMD85 8.5" OVERHEAD LCD VIDEO MONITOR WITH DVD PLAYER Installation Guide...

  • Page 2: Important Notice

    An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”...

  • Page 3: Materials Included In This Package

    MATERIALS INCLUDED IN THIS PACKAGE: MMD85 Video Monitor with DVD player (P/N136D3586) (1 pc) A/V Adapter Cable (112B3227) (1 pc) 2 Pin Power Wire Harness with choke (P/N112B3370) (1 pc) Hardware Package:- #8 x 3/4” Self Drilling Screws (4 pcs)

  • Page 4: Vehicle Preparation

    VEHICLE PREPARATION: 1) Locate an accessory power source (+12v when key is in the ACC. and run positions, and 0v when key is off). Also find a location that will provide a good grounding point. Generally, this wire can be found at the ignition switch or fuse-box.

  • Page 5: Mounting The Video Unit

    MOUNTING THE VIDEO UNIT Roof Roof support Headliner 5"x9"x3/4" Plywood Block or Optional VOHBKT (4) #8x1" self drilling screws (not supplied) Video unit (4) #8 Flat washers (supplied) (4) #8x3/4" self tapping screws ( supplied)
  • Page 6 MMD85 Line In-V (Yellow) Line In-R (Red) Line In-L (White) Audio Video Input Power Harness Item # 3 1) Make the connections to the vehicle for the 2 pin wiring harness. 2) Connect the 2 pin harness to the mating connector on the Video Monitor.

  • Page 7: Connecting The Dome Lights

    CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply volt- age to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. To determine which system you have you must locate the wires at the dome light.

  • Page 8: Troubleshooting

    Negative Switched Dome lighting To 3 pin connector Factory Dome light circuit Troubleshooting: SYMPTOM: No power at Video Monitor Power but no video or sound Picture, but no sound Red / black - Lamp on Black / red - Lamp common Violet / brown - Lamp Auto constant Factory Door ajar...
  • Page 9 © Copyright 2004 AEC 150 Marcus Blvd. Hauppauge, NY 11788 128-7251...
